Description

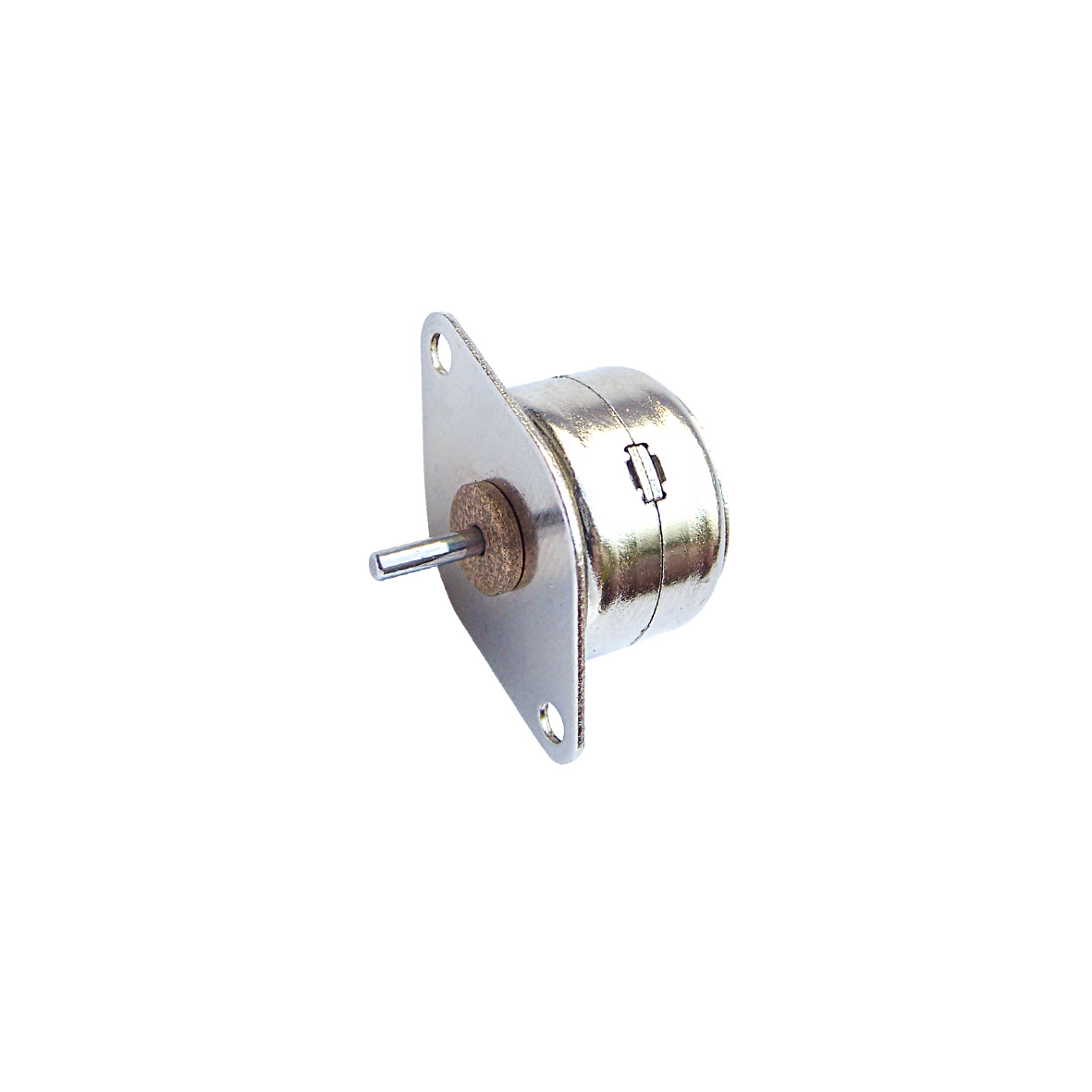

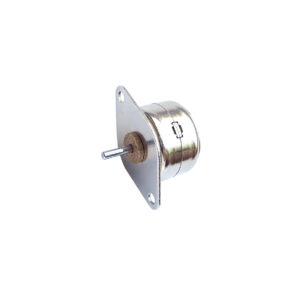

Permanent Magnet
| Specification | 1511P0209-013-5.0-0019 |
|---|---|

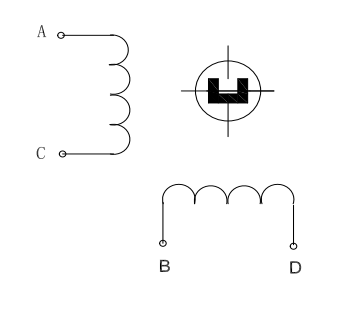

| No. of phase | 2 |

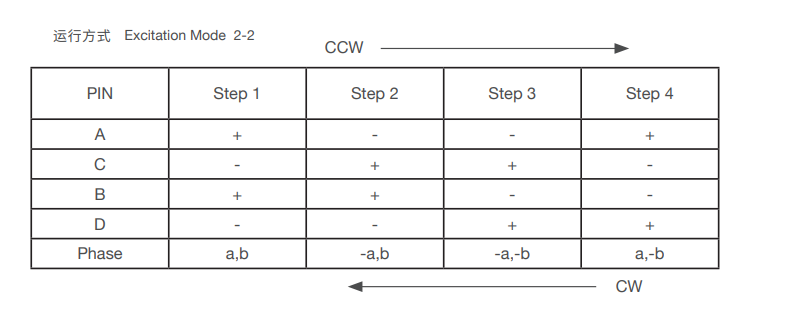

| Excitation Mode | 2-2 |
| Voltage | 6.5 V |
| Resistance | 12.6 Ω |
| Step Angle | 18° Deg |
| Current | 0.5 A |
| No-load Pull-in Frequency | ≥1200 pps |
| No-load Pull-out Frequency | ≥1300 pps |
| Detent Torque | 0.40 mNm |
| Pull-in Torque | 1 mNm |
| Load pull-in Frequency | ≥500 pps |
| Weight | 8.8 g |
| Operating temperature range | -20~+80 °C |
Applications
office automation systems
medical equipment
mini household appliances
toys
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
