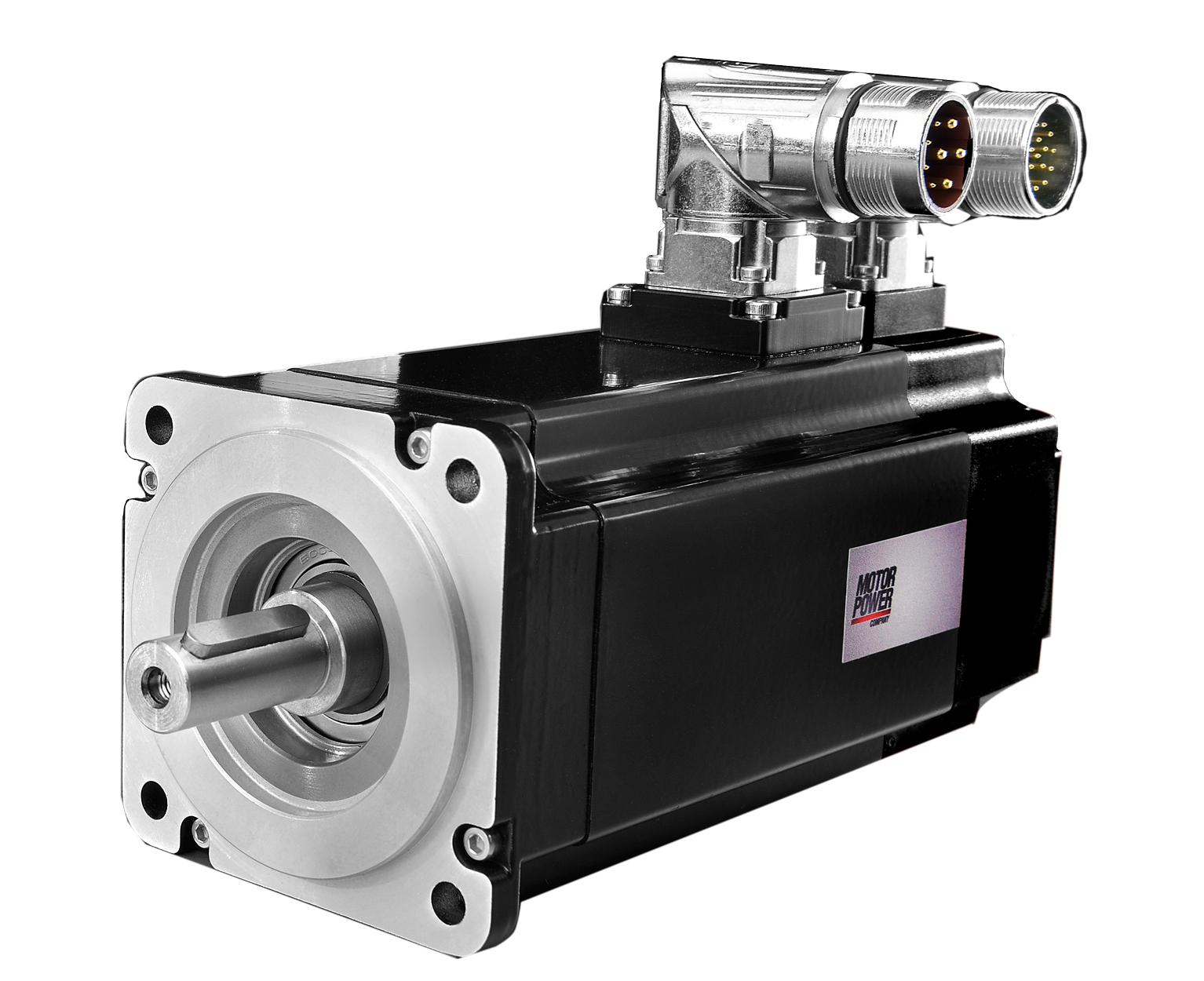

TC-X 80 4 17

Name: TC-X 80 4 17 - KOCO MOTION
SKU: TC-X 80 4 17

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-X 80 4 17 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm

Specification

Parameter	Unit	TC-X 80 4 17
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	4
Peak Torque (ambient temperature 0 to +40°C)	Nm	12
Nominal Torque (ambient temperature 0 to +40°C)	Nm	3.4
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	400
Nominal power (ambient temperature 0 to +40°C)	W	1068
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	2.5
Maximun Current (ambient temperature 0 to +40°C)	Arms	7.5
Nominal Current (ambient temperature 0 to +40°C)	Arms	2.19
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 400VAC (ambient temperature 0 to +40°C)		3900
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	1.6
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	96
Winding resistance (ambient temperature 0 to +40°C)	Ohm	6.5
Winding inductance (ambient temperature 0 to +40°C)	mH	28.6
Electrical time constant (ambient temperature 0 to +40°C)	ms	4.4
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	1
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.6
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	1.58
Mass (ambient temperature 0 to +40°C)	Kg	4.1
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	110
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	350

Family Specification

Family Specification	Unit	TC-X 80 4 17
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		PT1000
Certification		CE

Family Overview

Family Overview	Unit	TC-X 80 4 17
Flange dimensions	mm	80
Rated Output Power	Watt	480 – 1068
Rated Torque	Nm	1,53 – 3,4
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) G2 – 90° M23 turnable connectors – PT 1000 on power connector H2 – 90° M23 turnable connectors – PT 1000 on signal connector

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 80

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-80-Dimensions-Size-15-28.pdf (pdf, 553.86K)

TC-X-80-Torque-Speed-Chart-Size-15-28.pdf (pdf, 580.35K)

TC-X-80-Dimensions-Size-4.pdf (pdf, 558.88K)

TX-X-80-Specs-40°C-to-80°C.pdf (pdf, 389.14K)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

Datenblatt

TC-X-80-Torque-Speed-Chart-Size-4.pdf (pdf, 401.16K)
