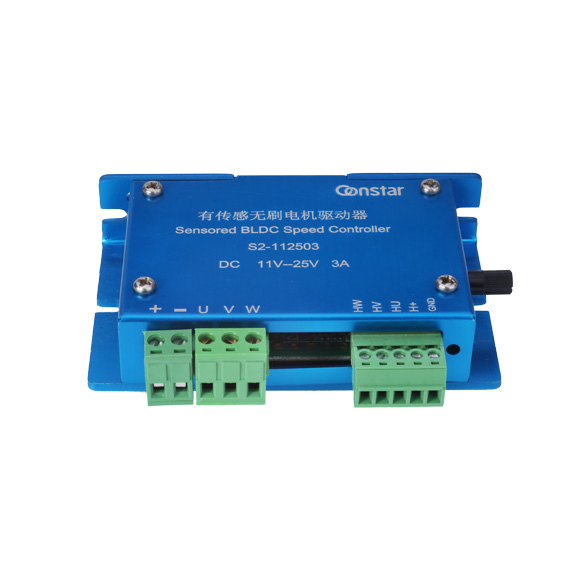

The S25-112503H-7054 Universal ESC is a precision-engineered electronic speed controller tailored for sensored BLDC motors, combining versatility with advanced protection features for industrial reliability.
- Electrical Performance: 3A continuous current and 4.5A peak current (10s), with an input voltage range of 11–25V, ensuring stable performance for a wide range of brushless DC motor applications.
- Control Flexibility: Supports both analog voltage and PWM speed control signals. Additional options include CW/CCW direction control, enable functionality, and speed feedback output (6 pulses per pole pair).
- Comprehensive Protections: Integrated overload, thermal overload, and inverse-polarity protection guarantee safe and reliable operation in industrial environments. (Blockage protection not included.)

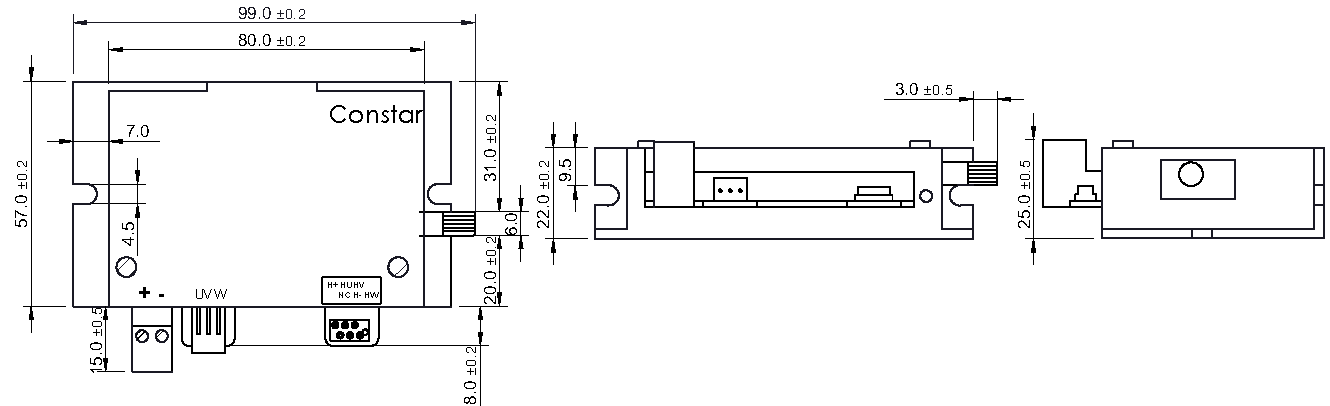

- Construction & Environment: Compact form factor (99×72×25 mm) and reliable operation between -20°C and +60°C make it suitable for robust duty cycles.
Optimized for applications such as blowers, electric tools, and pumps, the S25-112503H-7054 offers dependable speed control and motor protection, making it an excellent choice for OEMs and engineers seeking high performance and operational safety in their motion control systems.
