Beschreibung

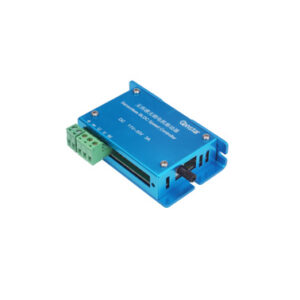

The S20-076015 compact ESC delivers precise and efficient control for sensorless BLDC motors across a range of industrial applications. Supporting a constant current of 15A and a peak current (10s) of 25A, this controller accommodates input voltages from 7 to 60 V, ensuring compatibility with various power systems.
- Speed control: Offers flexible input via analog voltage or PWM signal
- Comprehensive protections: Integrated overload, blockage, thermal overload, and inverse-polarity protection enhance operational safety and reliability
- Additional features: Optional CW/CCW direction control, enable input, and speed feedback output (6 pulses per pole pair) for system flexibility
- Compact design: 92×27×17.5 mm, suitable for space-constrained installations
- Operating temperature range: -20°C to +60°C, supporting reliable operation in demanding environments
This ESC is optimized for sensorless operation, making it ideal for use in blowers, pumps, and electric tools where robust, maintenance-free speed control is valued. Its advanced protection functions and optional control features provide equipment designers and system integrators with a secure, versatile platform for a wide array of automation and motion control tasks.
2D drawing S20-076015
