Description

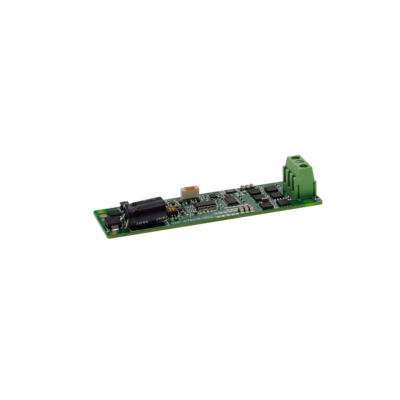

compact ESC for sensorless BLDC motor
| Specification | S20-076015 |
|---|---|
| Contant Current | 15 A |
| Peak Current(10s) | 25 A |
| Input Voltage Range | 7~25/15~60 V |
| Size | 92*27*17.5 mm |
| Speed Control Signal | Analog Voltage/PWM |
| Overload Protection | Yes |
| Blockage Protection | Yes |
| Thermal Overload Protection | Yes |
| Inverse-polarity Protection | Yes |
| Sense of Direction | Optional |
| Enable | Optional |
| Speed Feedback Output (6 Pulses*Pole Pairs) | Optional |
| Operating Temperature | -20~+60 °C |
| Sensored/Sensorless | Sensorless |
Applications
blowers
electric tools
pumps
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
