Universal Sensored BLDC Motor ESC

S17-114820H-FR

The S17-114820H-FR is a universal electronic speed controller (ESC) designed for sensored BLDC motors, supporting continuous currents up to 20A (26A peak) and input voltages from 11 to 48V. Featuring analog/PWM speed control, multiple protection functions, and flexible direction control, it is ideal for demanding industrial applications such as blowers, electric tools, and pumps.

Weiterlesen
Artikelnummer: S17-114820H-FR Kategorie:

Beschreibung

The S17-114820H-FR is an advanced universal ESC engineered for precise control of sensored BLDC motors in a wide range of industrial applications. Delivering a continuous current of 20A (peak 26A for 10 seconds) and supporting input voltages from 11 to 48V, this controller reliably drives high-performance systems while ensuring stable operation.

  • Flexible Speed Control: Accepts analog voltage or PWM speed signals for seamless integration with various control schemes.
  • Robust Protection Features: Includes overload, thermal overload, and inverse-polarity protection. Blockage protection is not included. CW/CCW direction control is standard, with enable and speed feedback outputs available as options.

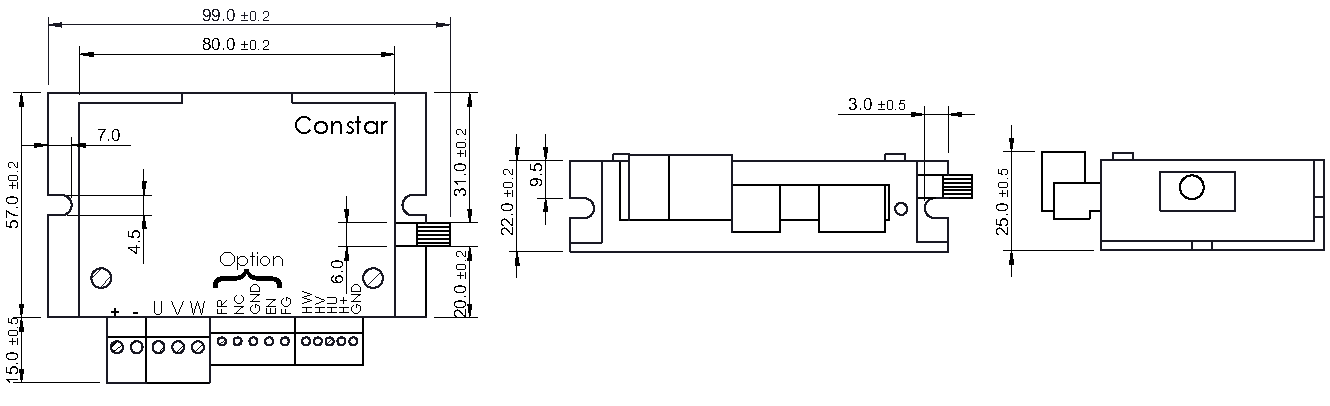

  • Compact Design: Measuring 99 x 72 x 25 mm, the controller fits easily into space-constrained equipment.
  • Industrial-Grade Operation: Ideal for use in ambient temperatures from -20°C to +60°C.

Perfect for applications such as blowers, electric tools, and pumps, the S17-114820H-FR enhances operational reliability and process efficiency where precise and responsive motor control is essential.
