MDI3 NEMA 34 Programmable Motion Control IP20

MDI3 NEMA 34 with

  • Pulse/Direction
  • Motion Control (RS485)
  • CANopen
  • Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)
Artikelnummer: MDI3 NEMA 34 Programmable Motion Control IP20 Kategorie:

Beschreibung

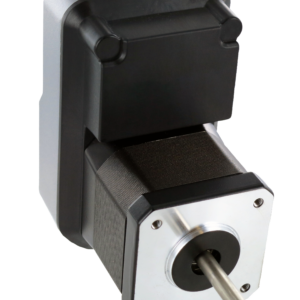

MDrive Plus NEMA size 34 (85 mm) Programmable Motion Control with RS422/485 communications interface for programming and control using MCode, a simple mnemonic language for MDrive products.
This product offers a choice of eight 24 VDC multifunction programmable I/O points + two TTL high speed clock I/O points, or four 24 VDC I/O with TTL inputs for a remote encoder for following or reading off-shaft differential encoder
Holding torque range oz-in (N-cm): 408 … 1090 (288 … 770)
I/O connector options: Wire Crimp
Com connector: IDC, Wire Crimp
