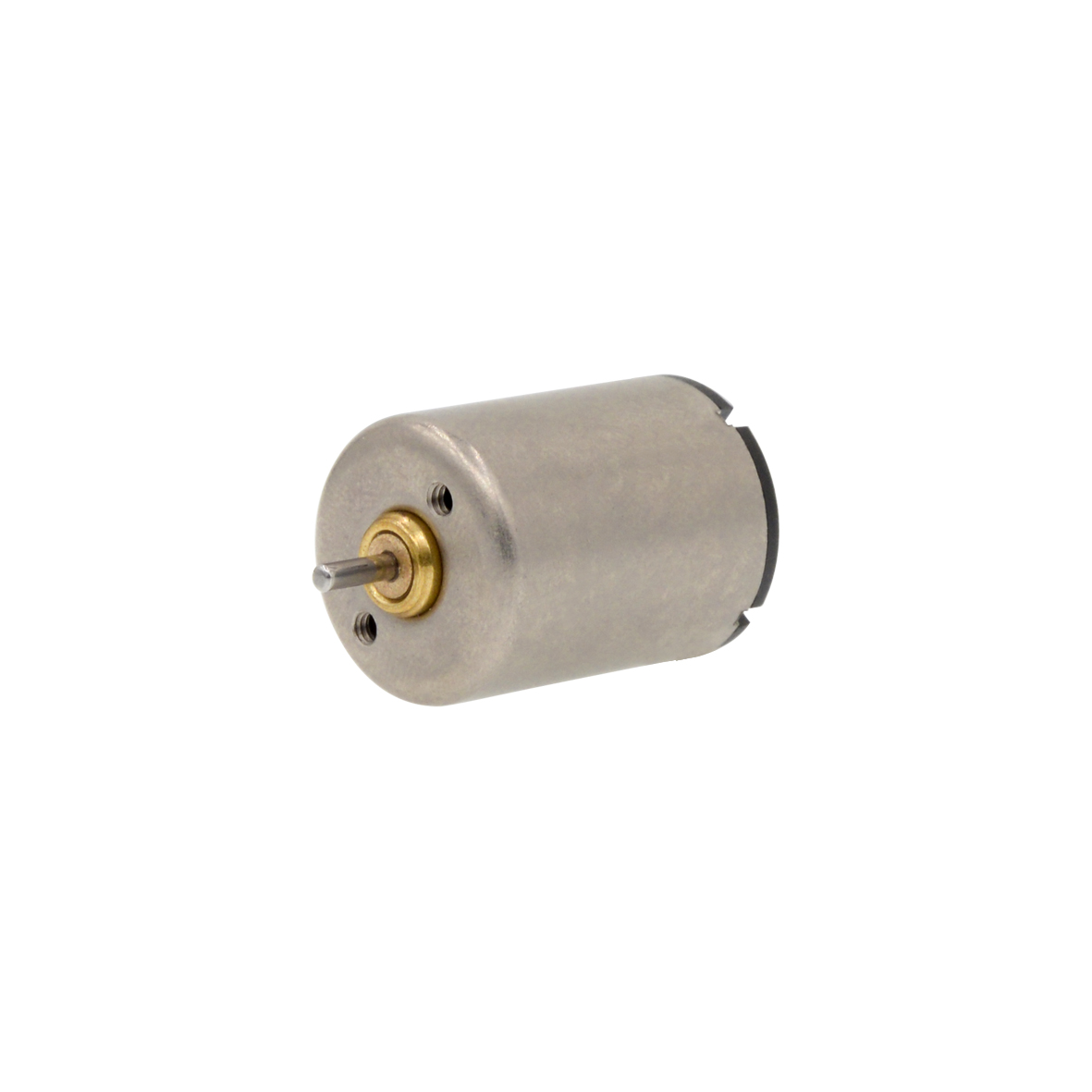

L1722N5M 12V Micro DC Coreless Motor Series – Precious Metal Commutation
- Compact High-Performance Design: This series provides lightweight (24.5 g) micro DC coreless motors with precious metal commutation, optimizing for high efficiency and speed in limited space.
- Exceptional Technical Specifications:
- Rated voltages: 7.4V and 12.0V options
- No-load speed: up to 27,000 rpm
- Stall torque: up to 27.9 mNm
- Terminal resistance: as low as 1.1 Ω
- Max. output power: up to 19.7 W
- Peak efficiency: 84~85%
- Operating temperature: -20°C to +85°C
- Application Versatility: Ideal for mini UAVs, remote control hobby products, and small household appliances, where compact, high-efficiency drive solutions are required.
- Customization & Integration: Available with a variety of options, including adjustable lead wire length, shaft length, special coils, and compatible gearheads for seamless adaptation to unique design requirements.
- Key Benefits: Low rotor inertia ensures rapid acceleration and deceleration. Precious metal commutation offers reduced electrical noise and long service life, making this series a reliable choice for precision motion control in demanding environments.

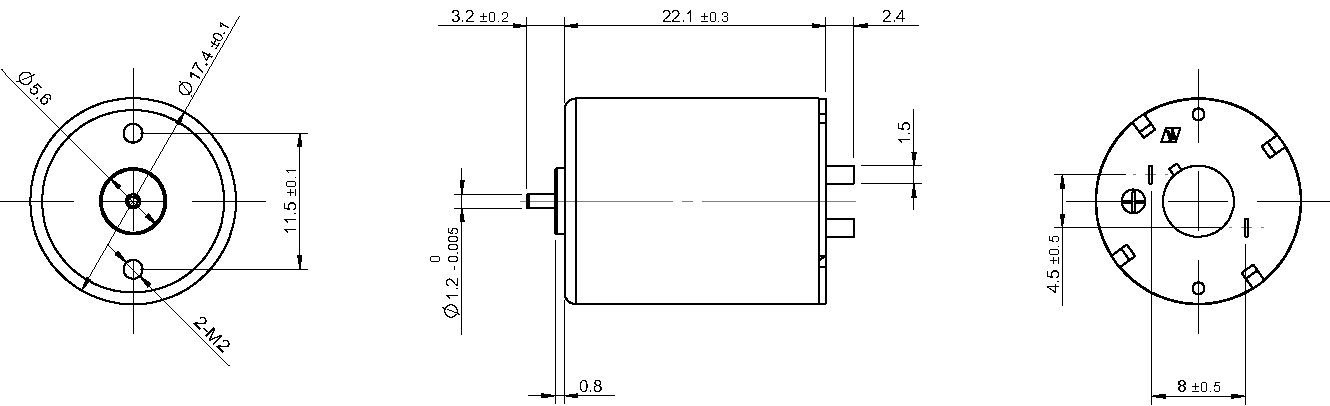

2D drawing L1722N5M

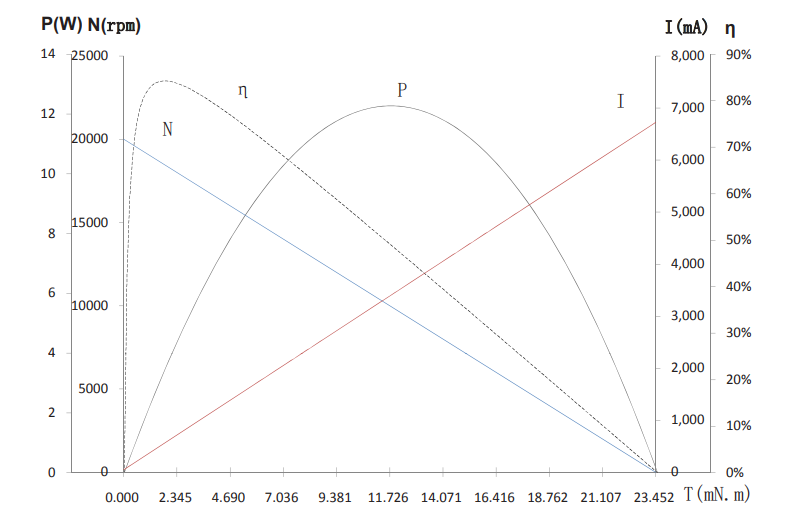

Characteristics Curve / Model L1722N5M16-200-7.4
