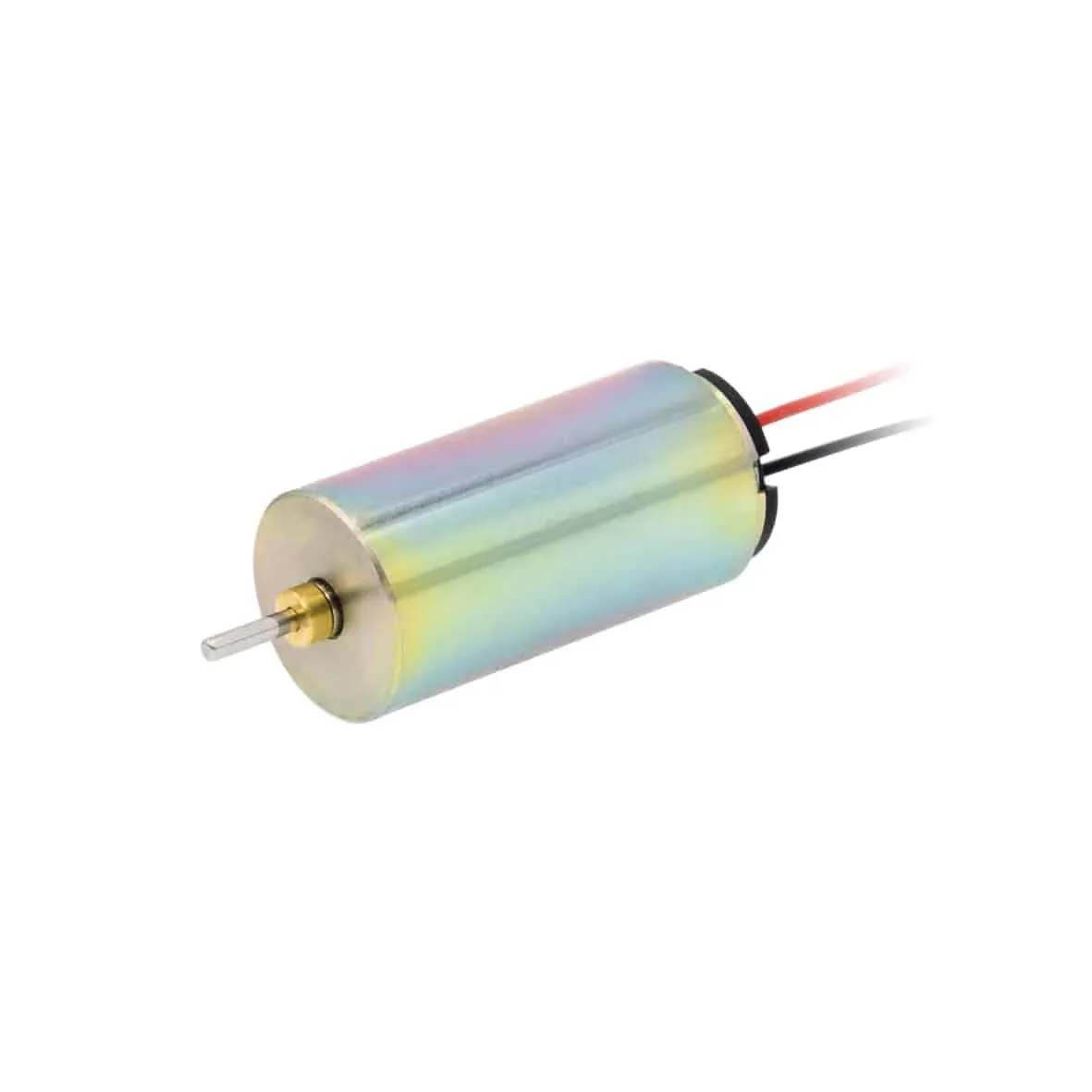

| Parameter | Unit | 1020N5M52-115-3.0 | 1020N5M14-125-6.0 | 1020N5M16-280-7.4 |
|---|---|---|---|---|
| Voltage | V | 3.0 | 6.0 | 7.4 |
| Terminal resistance | Ohm | 3.8 | 11.7 | 3.3 |
| No-load speed | rpm | 11500 | 12500 | 28000 |
| No-load current | mA | 16 | 15 | 30 |
| Stall torque | mNm | 1.89 | 2.20 | 5.50 |
| Stall current | mA | 790 | 510 | 2240 |
| Nominal torque | mNm | 0.5 | 0.5 | 1.0 |
| Nominal speed | rpm | 8460 | 9660 | 22910 |
| Nominal current | mA | 220 | 130 | 430 |
| Max. output power | W | 0.57 | 0.72 | 4.04 |
| Max. efficiency | % | 74 | 69 | 78 |
| Back-EMF constant | mV/rpm | 0.26 | 0.47 | 0.26 |
| Torque constant | mNm/A | 2.4 | 4.4 | 2.5 |
| Speed/torque gradient | rpm/mNm | 6100 | 6100 | 6100 |
| Rotor inertia | g·cm² | 0.07 | 0.07 | 0.07 |
| Weight | g | 6.1 | 6.1 | 6.1 |
| Thermal resistance housing-ambient | K/W | 38.5 | 38.5 | 38.5 |
| Thermal resistance winding-housing | K/W | 33.2 | 33.2 | 33.2 |
| Thermal time constant motor | s | 78 | 78 | 78 |
| Thermal time constant winding | s | 61 | 61 | 61 |
| Operating temperature range | °C | -20~+85 | -20~+85 | -20~+85 |
| Thermal class of winding | °C | 130 | 130 | 130 |
| Axial play | mm | 0.01~0.15 | 0.01~0.15 | 0.01~0.15 |
| Radial play | mm | 0.012 | 0.012 | 0.012 |
| Axial load dynamic | N | 0.15 | 0.15 | 0.15 |
| Axial load static | N | 15 | 15 | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 | 0.4 | 0.4 |
| No. of pole pairs | 1 | 1 | 1 | |
| Bearings | 2 sleeve bearings | 2 sleeve bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | metal 5 segments | metal 5 segments | |
| Protection class | IP | 40 | 40 | 40 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

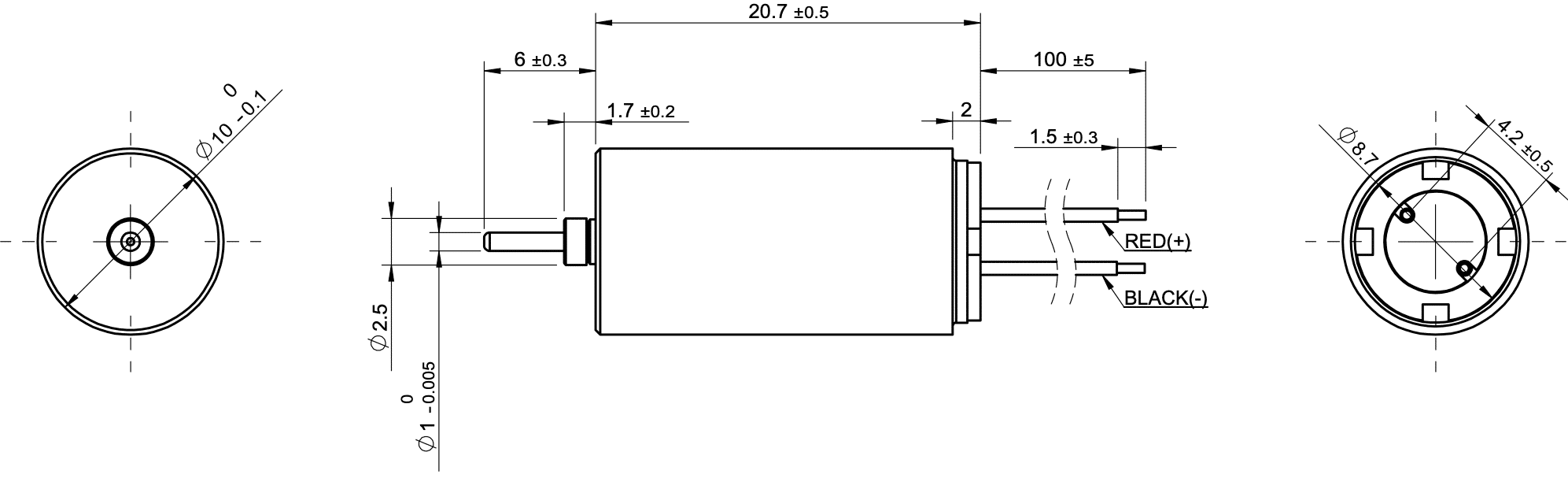

2D drawing 1020N5M
| Parameter | Unit | 1020N5M52-115-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ohm | 3.8 |
| No-load speed | rpm | 11500 |
| No-load current | mA | 16 |
| Stall torque | mNm | 1.89 |
| Stall current | mA | 790 |
| Nominal torque | mNm | 0.5 |
| Nominal speed | rpm | 8460 |
| Nominal current | mA | 220 |
| Max. output power | W | 0.57 |
| Max. efficiency | % | 74 |
| Back-EMF constant | mV/rpm | 0.26 |
| Torque constant | mNm/A | 2.4 |
| Speed/torque gradient | rpm/mNm | 6100 |
| Rotor inertia | g·cm² | 0.07 |
| Weight | g | 6.1 |
| Thermal resistance housing-ambient | K/W | 38.5 |
| Thermal resistance winding-housing | K/W | 33.2 |
| Thermal time constant motor | s | 78 |
| Thermal time constant winding | s | 61 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.01~0.15 |
| Radial play | mm | 0.012 |
| Axial load dynamic | N | 0.15 |
| Axial load static | N | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | 1020N5M14-125-6.0 |
|---|---|---|
| Voltage | V | 6.0 |
| Terminal resistance | Ohm | 11.7 |
| No-load speed | rpm | 12500 |
| No-load current | mA | 15 |
| Stall torque | mNm | 2.20 |
| Stall current | mA | 510 |
| Nominal torque | mNm | 0.5 |
| Nominal speed | rpm | 9660 |
| Nominal current | mA | 130 |
| Max. output power | W | 0.72 |
| Max. efficiency | % | 69 |
| Back-EMF constant | mV/rpm | 0.47 |
| Torque constant | mNm/A | 4.4 |
| Speed/torque gradient | rpm/mNm | 6100 |
| Rotor inertia | g·cm² | 0.07 |
| Weight | g | 6.1 |
| Thermal resistance housing-ambient | K/W | 38.5 |
| Thermal resistance winding-housing | K/W | 33.2 |
| Thermal time constant motor | s | 78 |
| Thermal time constant winding | s | 61 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.01~0.15 |
| Radial play | mm | 0.012 |
| Axial load dynamic | N | 0.15 |
| Axial load static | N | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
2D drawing 1020N5M
| Parameter | Unit | 1020N5M16-280-7.4 |
|---|---|---|
| Voltage | V | 7.4 |
| Terminal resistance | Ohm | 3.3 |
| No-load speed | rpm | 28000 |
| No-load current | mA | 30 |
| Stall torque | mNm | 5.50 |
| Stall current | mA | 2240 |
| Nominal torque | mNm | 1.0 |
| Nominal speed | rpm | 22910 |
| Nominal current | mA | 430 |
| Max. output power | W | 4.04 |
| Max. efficiency | % | 78 |
| Back-EMF constant | mV/rpm | 0.26 |
| Torque constant | mNm/A | 2.5 |
| Speed/torque gradient | rpm/mNm | 6100 |
| Rotor inertia | g·cm² | 0.07 |
| Weight | g | 6.1 |
| Thermal resistance housing-ambient | K/W | 38.5 |
| Thermal resistance winding-housing | K/W | 33.2 |
| Thermal time constant motor | s | 78 |
| Thermal time constant winding | s | 61 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.01~0.15 |
| Radial play | mm | 0.012 |
| Axial load dynamic | N | 0.15 |
| Axial load static | N | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
