Beschreibung

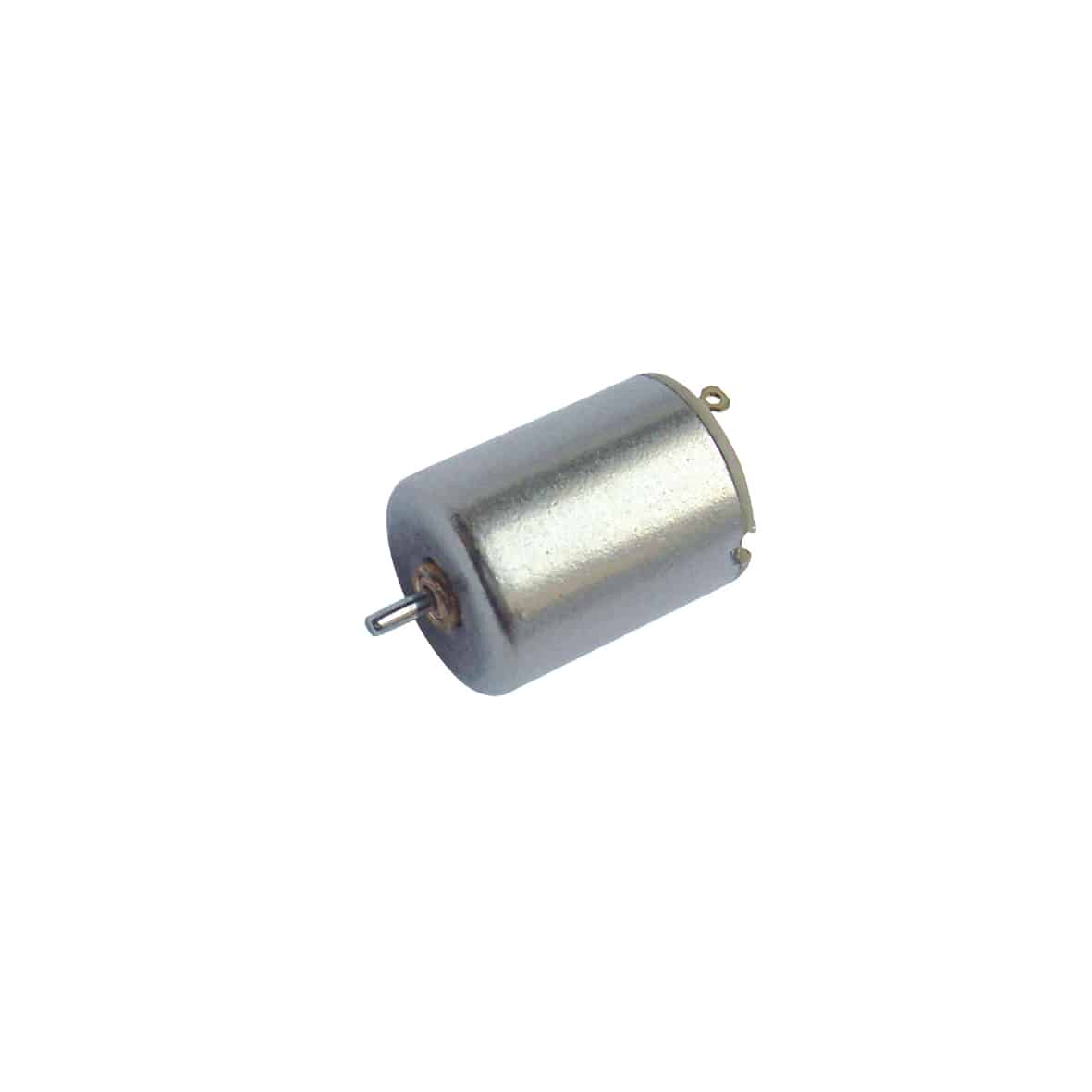

L1013N5M Series 10mm Mini Coreless Motors deliver high-precision motion and energy efficiency in space-restricted environments. Featuring precious metal brushes, these motors ensure low electrical noise, reliable contact, and extended operational life.
- Compact & Lightweight: 10mm diameter, 4.1g—ideal for space-critical designs
- Performance Range:
- Voltage: 3.0–5.5 V
- No-load speed: 10,000–34,750 rpm
- Stall torque: up to 2.4 mNm
- Max. output power: up to 1.9 W
- Max. efficiency: up to 70%
- Low rotor inertia: 0.06 gcm² for fast response
- Operating temperature: -20°C to +65°C
- Key Applications: mini UAVs, remote control hobby products, small household appliances
- Customization Options: lead wires, shaft length, special coils, and gearheads
These motors are engineered for precise control and rapid acceleration, making them ideal for high-speed mechanisms, lightweight robotic actuators, and miniature drive systems. Their versatility is enhanced by available configuration options, ensuring optimal integration with your application needs.
2D drawing L1013N5M
Characteristics Curve / Model L1013N5M06-347-5.0
