KOCO offers 3 different motor size of Integrated Closed Loop Stepping Control system via RS485.

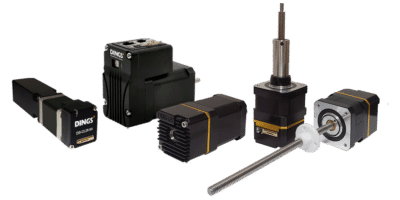

From NEMA11, 17 and up to 23 size, our DS-CL28/42-SA and Vector family can be attractive for customers since these packages are full closed loop with high resolution encoder (Min. 10,000PPR) and all-in-one electronics can be assembled with all of KOCO stepper line ups as linear actuator and regular rotary steppers. All solutions can be operated under RS485 commnication.
KOCO offers 3 different motor size of Integrated Closed Loop Stepping Control system via RS485.
From NEMA11, 17 and up to 23 size, our DS-CL28/42-SA and Vector family can be attractive for customers since these packages are full closed loop with high resolution encoder (Min. 10,000PPR) and all-in-one electronics can be assembled with all of KOCO stepper line ups as linear actuator and regular rotary steppers. All solutions can be operated under RS485 commnication.
| Parameter | Unit | DS-OL42-IPD/IRS4 | DS-OL42-ICAO | DS-CL28-SA | DS-CL42-SA |
|---|---|---|---|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | |
| Weight | g | About 60 | About 60 | About 60 | About 60 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | <85% RH, no condensation | <85% RH, no condensation | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 | 0 ~ 40 | 0 ~ 40 | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | Install in a ventilated environment | Install in a ventilated environment | Install in a ventilated environment | |
| Power Supply | V | DC 24~36 | DC 24~36 | DC 24~36 | DC 24~36 |
| Output Current | A | 0.5 – 3.0 | 0.5 – 3.0 | 0.5 – 3.0 | 0.5 – 3.0 |
| Drive Method | Full-bridge bipolar PWM | Full-bridge bipolar PWM | Full-bridge bipolar PWM | Full-bridge bipolar PWM | |
| Initialization Time | 2s | 2s | 2s | 2s | |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | |
| Size | mm | 42.2 x 42.2 x 25.2 | 42.2 x 42.2 x 25.2 | 42.2 x 42.2 x 25.2 | 42.2 x 42.2 x 25.2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

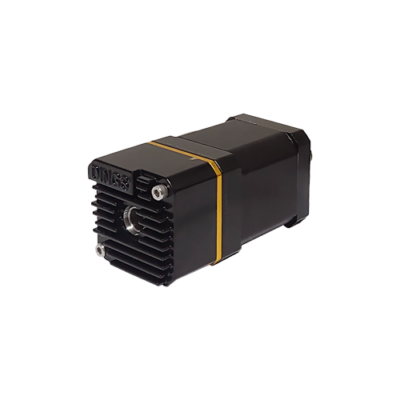

| Parameter | Unit | DS-OL42-IPD/IRS4 |
|---|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | |
| Weight | g | About 60 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | |
| Power Supply | V | DC 24~36 |
| Output Current | A | 0.5 – 3.0 |
| Drive Method | Full-bridge bipolar PWM | |
| Initialization Time | 2s | |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | |
| Input Signal | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 5 – 8 mA | |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | |
| Size | mm | 42.2 x 42.2 x 25.2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | DS-OL42-ICAO |
|---|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | |
| Weight | g | About 60 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | |
| Power Supply | V | DC 24~36 |
| Output Current | A | 0.5 – 3.0 |
| Drive Method | Full-bridge bipolar PWM | |
| Initialization Time | 2s | |
| Input Signal | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA | |
| Input Signal | – | |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | |
| Size | mm | 42.2 x 42.2 x 25.2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
