DUET FLEXI 80 2 03

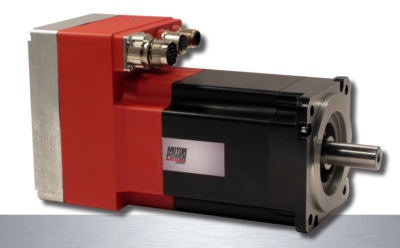

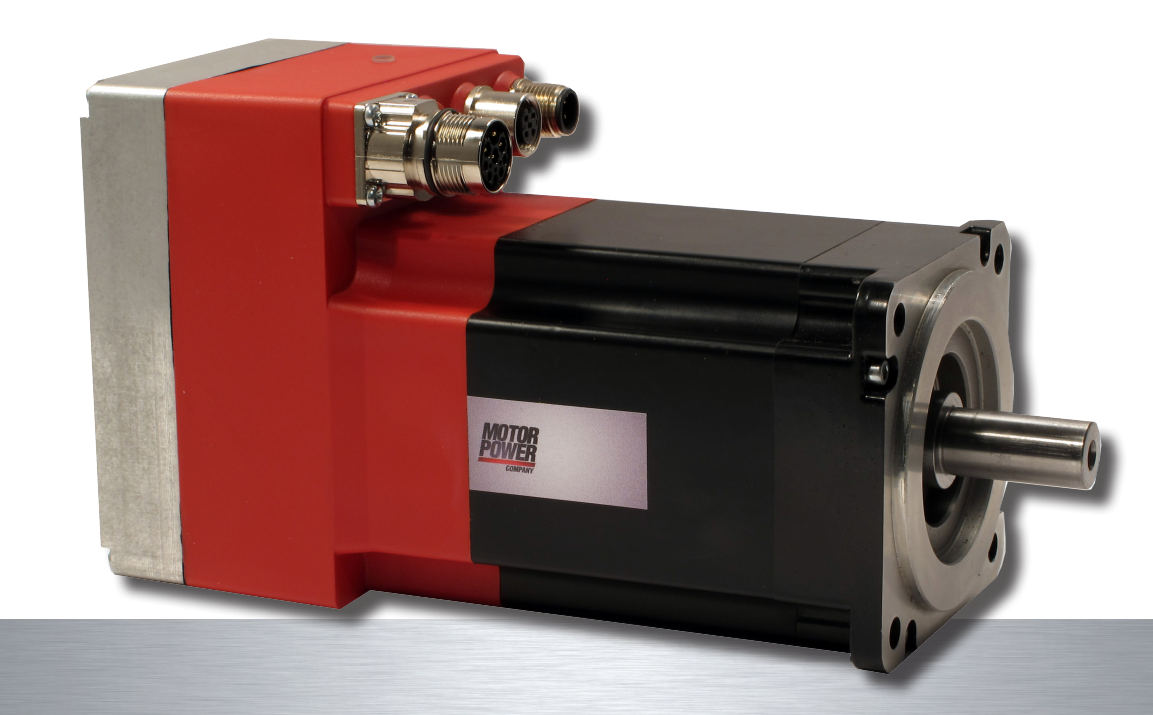

Name: DUET FLEXI 80 2 03 - KOCO MOTION
SKU: DUET FLEXI 80 2 03

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 80 mm
Rated Output Power: 390 – 520 W
Rated Torque: 1,5 – 2,0 Nm
Rated Speed: 2500 rpm
Fieldbus: CanOpen/Ethercat

Artikelnummer: DUET FLEXI 80 2 03 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 390 – 520 W
Rated Torque: 1,5 – 2,0 Nm
Rated Speed: 2500 rpm
Fieldbus: CanOpen/Ethercat

Specification

Parameter	Unit	DUET FLEXI 80 2 03
Rated Voltage	Vdc	48
Auxiliary Voltage (+6% -10%)	Vdc	24
Minimum Voltage	Vdc	24
Maximum Voltage	Vdc	60
Stall Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C)	Nm	2
Peak Torque	Nm	5.6
Rated Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C)	Nm	2
Rated output power @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C)	W	520
Rated output Power @ 10 Arms	W	360
Stall current @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C)	Arms	14.2
Peak Current	Arms	39.8
Rated current @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C)	Arms	14.7
Rated Speed @48Vdc	rpm	2500
Maximum Speed @48Vdc	rpm	3600
Maximum Speed @24Vdc	rpm	1800
Torque Constant (± 5%)	Nm/Arms	0.141
Voltage Constant (± 5%)	Vrms/Krpm	8.5
Phase/phase resistance (± 10%@25°C)	Ohm	0.12
Phase/phase inductance (± 10%)	mH	0.31
Electrical time constant	ms	2.6
Thermal Resistance	°C/W	1.3
Mechanical time constant	ms	1.06
Rotor Inertia without brake and without feedback	kg·cm²	1.16
Duet weight	Kg	3.2
Duet weight with brake	Kg	3.9
Axial Load applied on the shaft’s center	N	110
Radial Load applied on the shaft’s center	N	350

Family Specification

Family Specification	Unit	DUET FLEXI 80 2 03
Time Rating		Coninuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL /CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized.

Family Overview

Family Overview	Unit	DUET FLEXI 80 2 03
Flange dimensions	mm	80
Rated Output Power	Watt	390 – 520
Rated Torque	Nm	1,5 – 2,0
Rated Speed	rpm	2500
Fieldbus		CanOpen/Ethercat

Optionen

Feedback

R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Fieldbus

C = CanOpen E = Ethercat

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET FLEXI 80

DUET-Flexi-80-Torque-Speed-Chart.pdf (pdf, 357.74K)

DUET-Brake-Features.pdf (pdf, 202.73K)

DUET-Feedback-Features.pdf (pdf, 273.64K)

DUET-Wiring-Cables.pdf (pdf, 1.26M)

DUET-Flexi-80-Dimensions.pdf (pdf, 651.14K)

Datenblatt

DUET-Connectors.pdf (pdf, 715.57K)
