DS-CLS9-FRS4-01

Name: DS-CLS9-FRS4-01 - KOCO MOTION
SKU: DS-CLS9-FRS4-01

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available.
From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.

Artikelnummer: DS-CLS9-FRS4-01 Kategorie: Stepper Controller

Beschreibung

Beschreibung

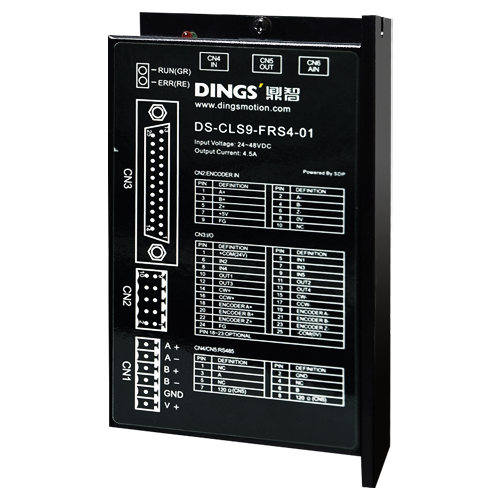

DS-CLS9-FRS4 -01 Stand Alone Closed Loop –
Communication Type Driver
Apply to Size 6, 8, 11, 14, 17, 23 of Step Motors

Specification	DS-CLS9-FRS4-01
Power supply	DC 24V~48V V
Output Current	4.5 A (0-peak) Instantaneous current A
Control Object Motor	Encoder 2-phase bipolar stepper motor
Drive Mode	PWM constant current drive
I/O Signals	Input · Pulse, direction input(configurable as digital input) · 5 Digital input · Encoder input (A, B, Z) Output · 4 digital outputs · Encoder signal output (differential A, B, Z)
I/O Signals Remarks	The rest of input/output can be freely configured via communication, except that the encoder output is fixed.
Digital input details	/SV ON (Servo On) /RESET (Alarm reset) /START (Motor start/stop) /JOG (Motor jog) /HOME (Zero point)
Digital output details	/IN POSITION /ALARM
LED indication	Status, fault, 2 indicators
communication I/F	RS485, up to 32 nodes
communication I/F Remarks	MODBUS RTU protocol,baud rate: 19200bps (default) or according to the agreement
Control Method	Position control mode, Torque control mode
Control Method Remarks	According to pulse positioning, according to RS485 communication positioning
Size	77 x 134 x 34, Without terminal block mm
weight	About 350g, Without terminal block g
Operating temperature/humidity	0~45°C, 85%RH or less, Prevent condensation °C
Storage temperature	0~85°C, 85% or less, Prevent condensation °C
Ambient gas	Prevent corrosive gases

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DS-CLS9-FRS4-01

1.-When-designs-installation-please-consider-the-size-of-terminals-and-pace-required-for-heat-dissipation.-2.-The-reliable-working-temperature-of-the-driver-is-usually-within-60℃-and-motor-is-within-80℃.-3.-When-install-driver-please-install-it-vertically-and-laterally-to-make-the-radiator-from-strong-air-convection-when-necessary-install-a-fan-near-the-driver-to-force-heat-dissipation-to-ensure-that-the-driver-works-within-reliable-working-temperature-range (png, 113.46K)
