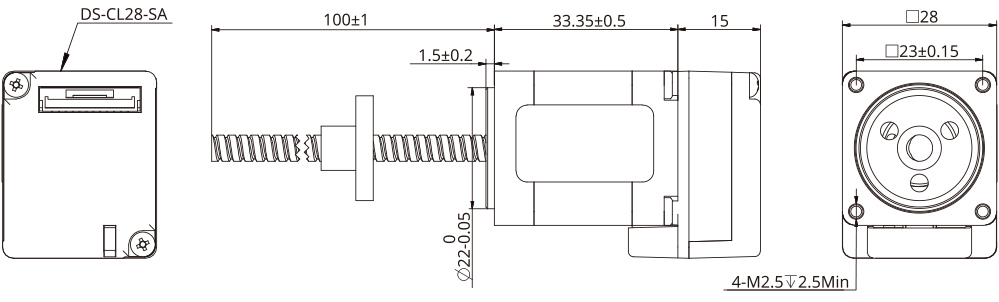

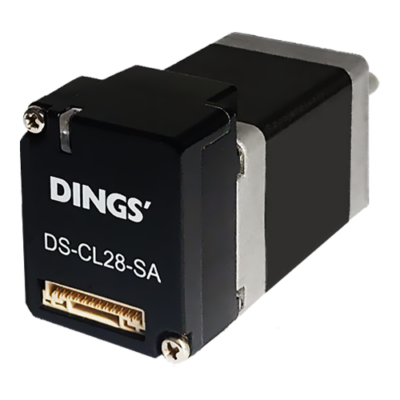

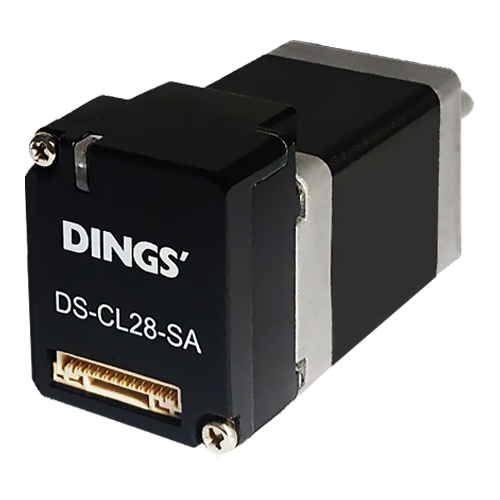

Integrated Closed Loop – RS485
| Parameter | Unit | DS-CL28-SA |
|---|---|---|
| Input Voltage | 24 VDC ± 10% | |
| Control Method | Closed loop control with 32bit ARM | |
| Multi Axes Driver | Max 16 axes through Star Topology | |
| Position table | 64 movement command steps(continuous cycle jump etc) | |
| Board Current Consumption | Max 500mA(Except motor current) | |
| Ambient Temperature | °C | Use : 0~40, Storage : -20~70 |
| Ambient Humidity | Use : 35~85%RH (Non-condensing), Storage : 10~90%RH (Non-condensing) | |
| Vibration Resistant | G | 0.5 |
| Rotation Speed | rpm | 0~3000 |
| Encoder Resolution(P/R) | PPR | Max 16000 |
| Protection Functions | Multiple alarm function. For details, please refer to product manual | |
| Rotational Direction | CW/CCW (Selectable by parameter) | |
| Digital Inputs | 4 programmable inputs (Photocoupler) | |
| Digital Output | – | |
| Communication interface | RS-485 Serial communication with PC transmission speed : 115200 (bps) | |
| Position Control | Incremental mode Data range : -134217727 ~ +134217727 (pulse) Pulse speed : Max 800 kpps | |
| Return to Origin | Origin sensor, ±Limit sensor, Z phase, Torque | |
| GUI | User interface program with in windows | |
| Software | Ezi-Motion GUI / Motion library (DLL) for Windows 2000/XP/7/8/10 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
