Stand alone brushless DC motor electronics 1

Name: Stand alone brushless DC motor electronics 1 - KOCO MOTION
SKU: Stand alone brushless DC motor electronics 1

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

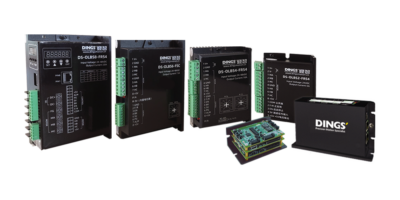

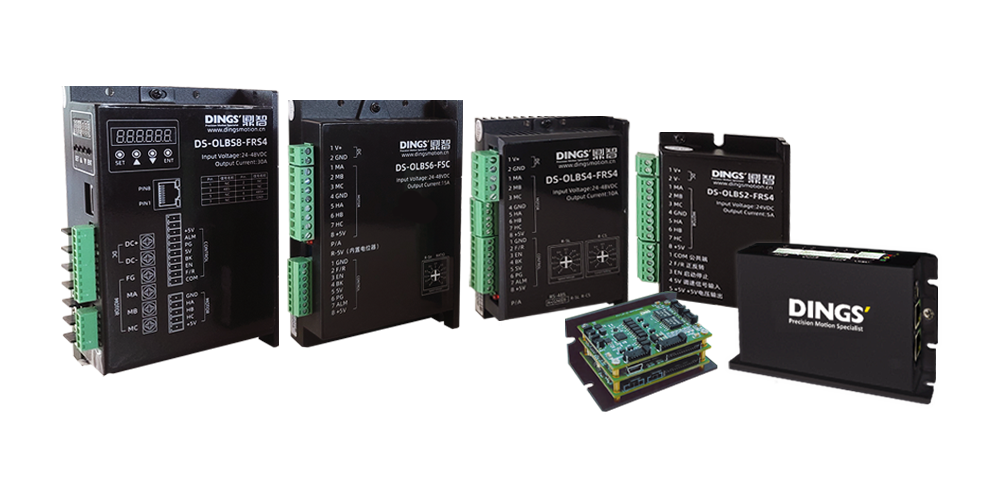

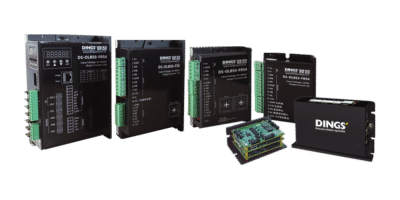

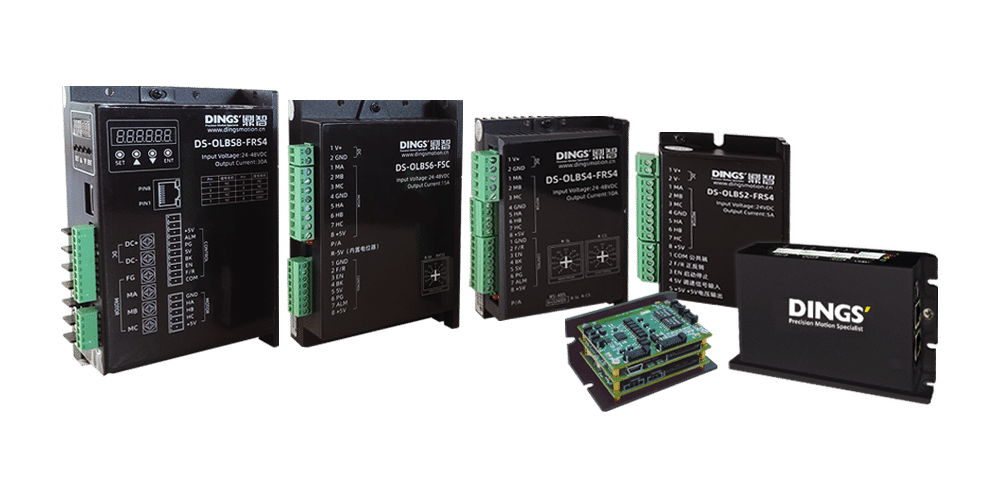

KOCO offers wide range of Brushless DC Motor electronics for speed and position control.
From low current to Maximum 30A, KOCO provides 4 different kinds of speed controller via RS485 and Analog command.

Artikelnummer: Stand alone brushless DC motor electronics 1 Kategorie: Servo Drive

Beschreibung

Beschreibung

Produktvergleich

Specifications

Parameter	Unit	DS-OLBD1-FRS4	DS-OLBS3-FRS4	DS-OLBS6-FSC	DS-OLBS8-FRS4	DS-BVM-FCAO/FETC	DS-BVS-FCAO/FETC
Size	(mm)	118 × 75.5 × 25.5	118 × 77 × 34	–	–	–	–
Operating Temperature	°C	0 ~ 45°C	0 ~ 45°C	0 ~ 45°C	0 ~ 45°C	0 ~ 45°C	0 ~ 45°C
Storage Temperature	°C	-20 ~ 85°C	-20 ~ 85°C	-20 ~ 85°C	-20 ~ 85°C	-20 ~ 85°C	-20 ~ 85°C
Operating Humidity		<85% RH	<85% RH	<85% RH	<85% RH	<85% RH	<85% RH
Weight	g	200	300	300	300	300	300
Size	mm	118 × 75.5 × 25.5	118 × 77 × 34	–	–	–	–
Power Supply	DC	12 – 24	24 – 48	24 – 48	24 – 48	24 – 48	24 – 48
Drive motor		Brushless DC	Brushless DC	Brushless DC	Brushless DC	Brushless DC	Brushless DC
Speed Controlled Analog Voltage	V	0 – 5	0 – 5	0 – 5	0 – 5	0 – 5	0 – 5
Structure		Wall mounting	Wall mounting	Wall mounting	Wall mounting	Wall mounting	Wall mounting
Cooling Method		Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Control Signal		Full isolation of input and output signals	Full isolation of input and output signals	Full isolation of input and output signals	Full isolation of input and output signals	Full isolation of input and output signals	Full isolation of input and output signals
Protections		Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms	Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms	Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms	Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms	Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms	Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms
Communication Mode		RS-485 Multi-axes communication	RS-485 Multi-axes communication	RS-485 Multi-axes communication	RS-485 Multi-axes communication	RS-485 Multi-axes communication	RS-485 Multi-axes communication

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Name

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specifications

Parameter	Unit	DS-OLBD1-FRS4
Size	(mm)	118 × 75.5 × 25.5
Operating Temperature	°C	0 ~ 45°C
Storage Temperature	°C	-20 ~ 85°C
Operating Humidity		<85% RH
Weight	g	200
Size	mm	118 × 75.5 × 25.5
Power Supply	DC	12 – 24
Drive motor		Brushless DC
Speed Controlled Analog Voltage	V	0 – 5
Structure		Wall mounting
Cooling Method		Air cooling
Control Signal		Full isolation of input and output signals
Protections		Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms
Communication Mode		RS-485 Multi-axes communication

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Facebook

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specifications

Parameter	Unit	DS-OLBS3-FRS4
Size	mm	118 × 77 × 34
Operating Temperature	°C	0 ~ 45°C
Storage Temperature	°C	-20 ~ 85°C
Operating Humidity		<85% RH
Weight	g	300
Size	mm	118 × 77 × 34
Power Supply	VDC	24 – 48
Output Current	A	10
Speed Controlled Analog Voltage	V	0 – 5
Structure		Wall mounting
Cooling Method		Air cooling
Control Signal		Full isolation of input and output signals
Protections		Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms
Communication Mode		RS-485 Multi-axes communication

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DS-OLBS3-FRS4
