36mm Frame

Name: 36mm Frame - KOCO MOTION
SKU: 36mm Frame

inkl. 19 % MwSt.

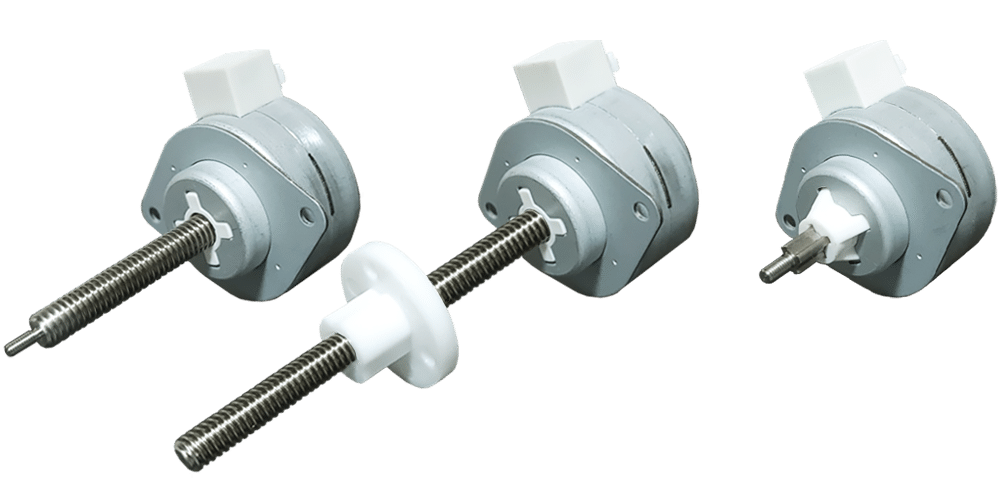

The size 36mm PM Linear Actuator has External, Non-Captive and Kaptive version and various screw end machining and length customization is optional.

Artikelnummer: 36mm Frame Kategorie: Permanent Magnet Steppers

Beschreibung

The size 36mm PM Linear Actuator has External, Non-Captive and Kaptive version and various screw end machining and length customization is optional.

Es gibt noch keine Bewertungen.

Schreibe die erste Bewertung für „36mm Frame“

Specification	36mm Frame
Polarity	Bi-Polar
Linear Actuator Type	External, Non-captive, Kaptive
Step Angle	7.5°/15°
Winding	5/12 mA
Phase Current	560/230 mA
Phase Resistance	9/52 Ω
Phase Inductance	11.5/72/8/56 mH
Power Consumption	5.6 W
Rotor Inertia	8.5 g·cm²
Insulation Class	B
Insulation Resistance	100 MΩ
Mass	120 g
Bearing	Ball Bearing
