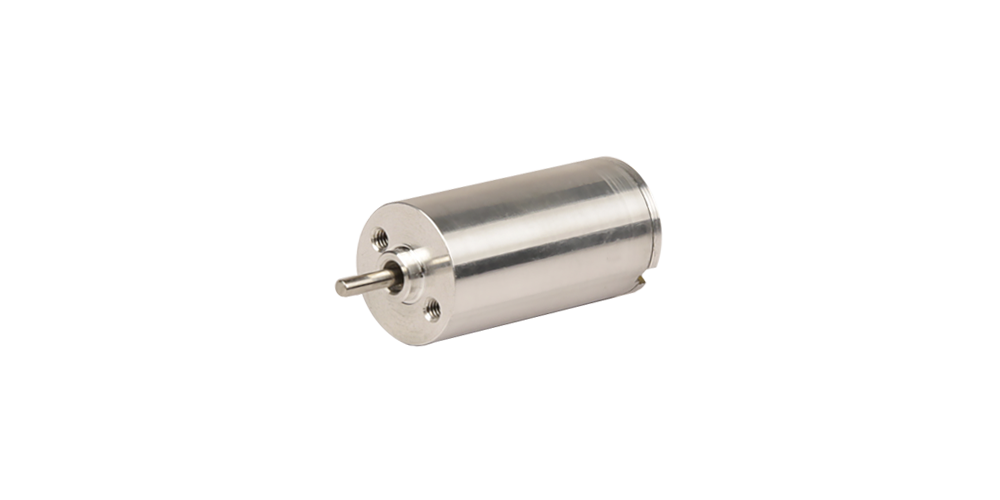

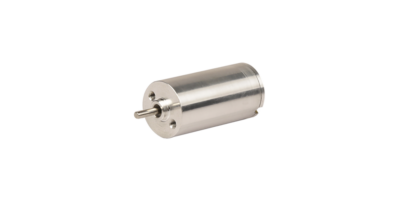

22ZWC48L-1 is very compact size but it has optimized magnetic circuit.
Brushless DC Motor with core winding has high torque density and multi-pole rotor can provide very strong and dynamic performance.
22ZWC48L-1 can reach Max. 12,000RPM
22ZWC48L-1 is very compact size but it has optimized magnetic circuit.
Brushless DC Motor with core winding has high torque density and multi-pole rotor can provide very strong and dynamic performance.
22ZWC48L-1 can reach Max. 12,000RPM
inkl. 19 % MwSt.
Weiterlesen
inkl. MwSt.
Produkte anzeigen
inkl. MwSt.
Produkte anzeigen
inkl. MwSt.
Produkte anzeigen| Specification | 22ZWC48L-1 |
|---|---|
| Pole pair | 2 mm |
| Winding connection method | Star shape mm |
| Phase inductance | 0.54 mH |
| Phase Resistance | 3.053 Ω |
| Insulation Class | B |
| Duty Type | S2 |
| Feedback Method | Hall Sensors |
| Commutation Angle | 120° |
| Insulation Strength (Withstand Voltage) | 500VAC/1KHz/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Weight | 200 g |
| Rated Voltage | 24 V |
| Rated Power | 19.9 W |
| Rated Torque | 0.019 Nm |
| Rated Speed | 10000 RPM |
| Rated Current | 1.2 A |
| No Load Speed | 12000 RPM |
| No Load Current | 0.24 A |
| Motor Efficiency | 70 % |
| Static torque | 3.42 mNm |
| Noise (Ambient noise 20db, test distance 1M) | ＜50 dB |
| Enclosure – Ambient Thermal Resistance | 0.85 K/W |
| Motor Thermal Time Constant | 1.26 min |
| Ambient Temperature | 25 °C |
| Maximum Winding Temperature | 75 °C |
| Torque Constant | 0.016 N·m/A |
| Back-EMF Constant /Effective Value | 1.67 V/Krpm |
| Peak Torque | 0.057 Nm |
| Peak Current | 3.6 A |
| Inertia Moment | 1.1 g·cm² |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
