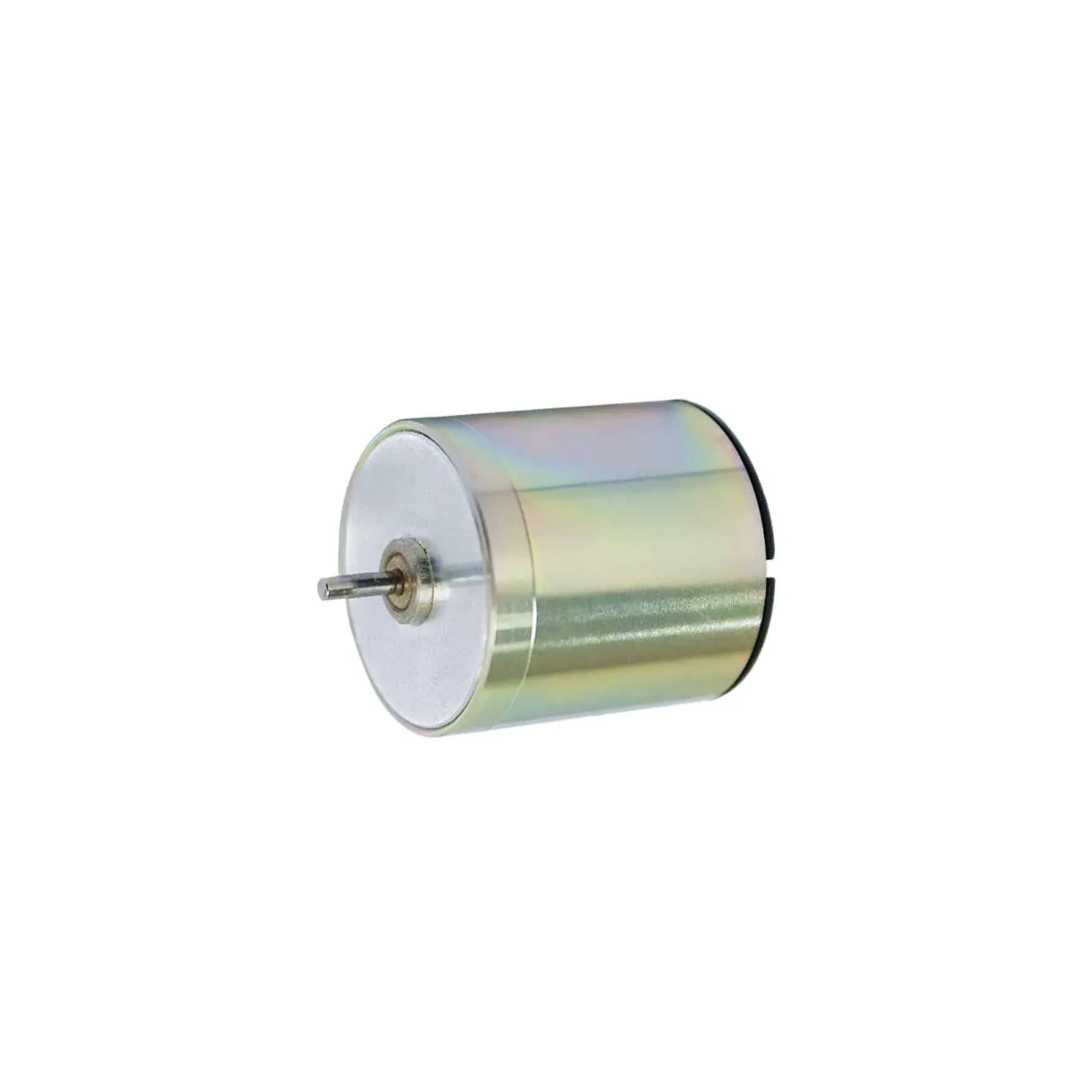

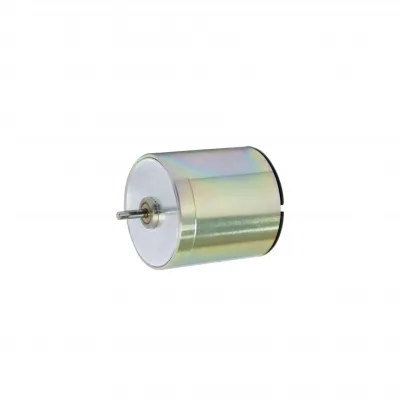

Name: 2224N5M - KOCO MOTION
SKU: 2224N5M

Specification	2224N5M11-105-6.0	2224N5M09-158-12.0	2224N5M12-112-12.0
Voltage	6.0 V	12.0 V	12.0 V
Terminal resistance	1.3 Ω	2.0 Ω	5.9 Ω
No-load speed	10500 rpm	15800 rpm	11200 rpm
No-load current	60 mA	55 mA	30 mA
Stall torque	24.6 mNm	42.7 mNm	20.2 mNm
Stall current	4620 mA	6000 mA	2030 mA
Nominal torque	5.0 mNm	5.0 mNm	3.0 mNm
Nominal speed	8360 rpm	13950 rpm	9530 rpm
Nominal current	990 mA	750 mA	330 mA
Max. output power	6.8 W	17.7 W	5.9 W
Max. efficiency	79 %	82 %	77 %
Back-EMF constant	0.6 mV/rpm	0.8 mV/rpm	1.1 mV/rpm
Torque constant	5.4 mNm/A	7.2 mNm/A	10.1 mNm/A
Speed/torque gradient	430 rpm/mNm	370 rpm/mNm	560 rpm/mNm
Rotor inertia	2.4 g·cm²	2.4 g·cm²	2.4 g·cm²
Weight	36 g	36 g	36 g
Thermal resistance housing-ambient	22.31 K/W	22.31 K/W	22.31 K/W
Thermal resistance winding-housing	6.06 K/W	6.06 K/W	6.06 K/W
Thermal time constant motor	313 s	313 s	313 s
Thermal time constant winding	218 s	218 s	218 s
Operating temperature range	-20~+85	-20~+85	-20~+85
Thermal class of winding	130 °C	130 °C	130 °C
Axial play	0.02~0.15	0.02~0.15	0.02~0.15
Radial play	0.025 mm	0.025 mm	0.025 mm
Axial load dynamic	3.3 N	3.3 N	3.3 N
Axial load static	60 N	60 N	60 N
Radial load at 3 mm from mounting face	14 N	14 N	14 N
No. of pole pairs	1	1	1
Bearings	2 sleeve bearings	2 sleeve bearings	2 sleeve bearings
Commutator	metal 5 segments	metal 5 segments	metal 5 segments
Protection class	40 IP	40 IP	40 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

2224N5M

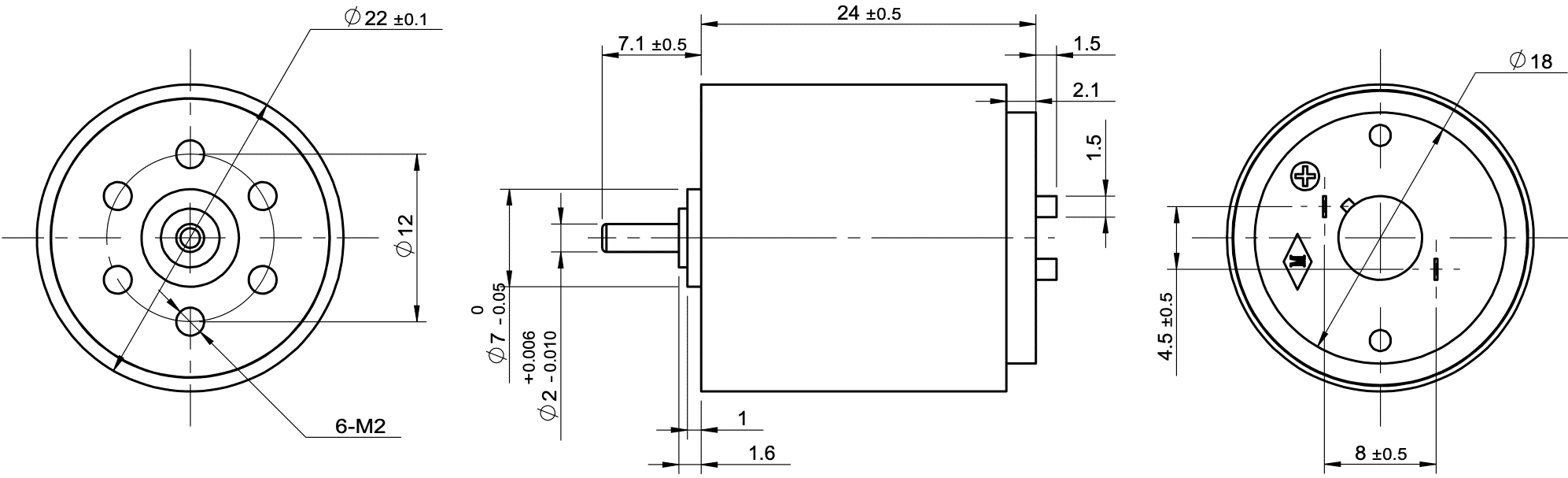

2D drawing 2224N5M (png, 162.67K)
