1434ZDF
14mm DC Sonic Motors

1434ZDF

The 1434ZDF series 14mm DC sonic motors deliver high-speed vibration and reliable performance for demanding applications such as electric toothbrushes, health care products, and cleaning equipment. Key features include compact 19g construction, wide 220–360 Hz operating frequency, efficient low-current operation, and customizable options for shaft length, coil specification, and lead wire length to optimize integration and performance.

Weiterlesen
Weiterlesen
Weiterlesen
Artikelnummer: 1434ZDF Kategorie:

Beschreibung

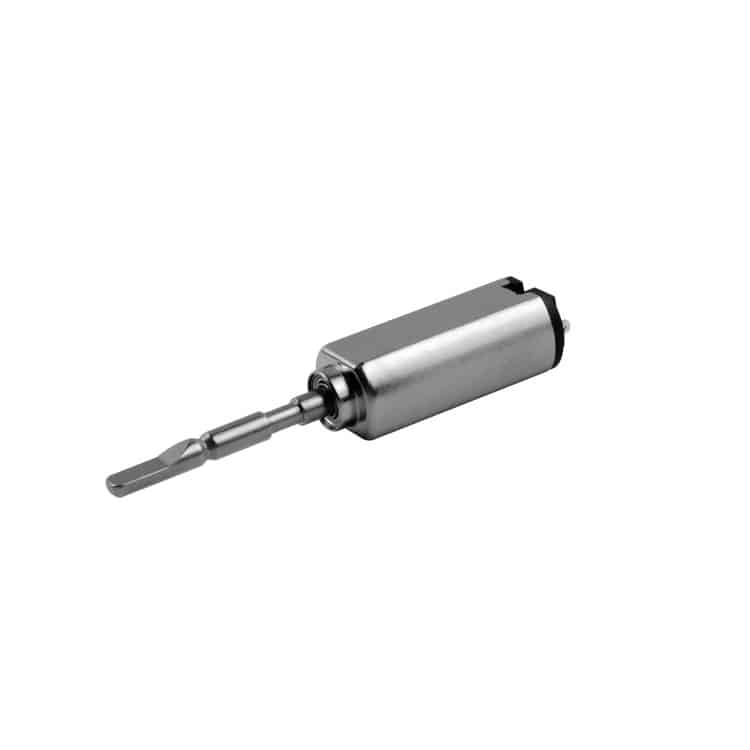

1434ZDF 14mm DC Sonic Motor Family offers precision vibration technology for applications requiring compact size and robust operation. Designed for high-frequency performance, these motors are ideal for integration into:

  • Electric toothbrushes
  • Health care products
  • Cleaning equipment

Key Technical Specifications:

  • Operating Voltage: 2.5 V or 3.7 V variants
  • Resistance: 3.8 Ω

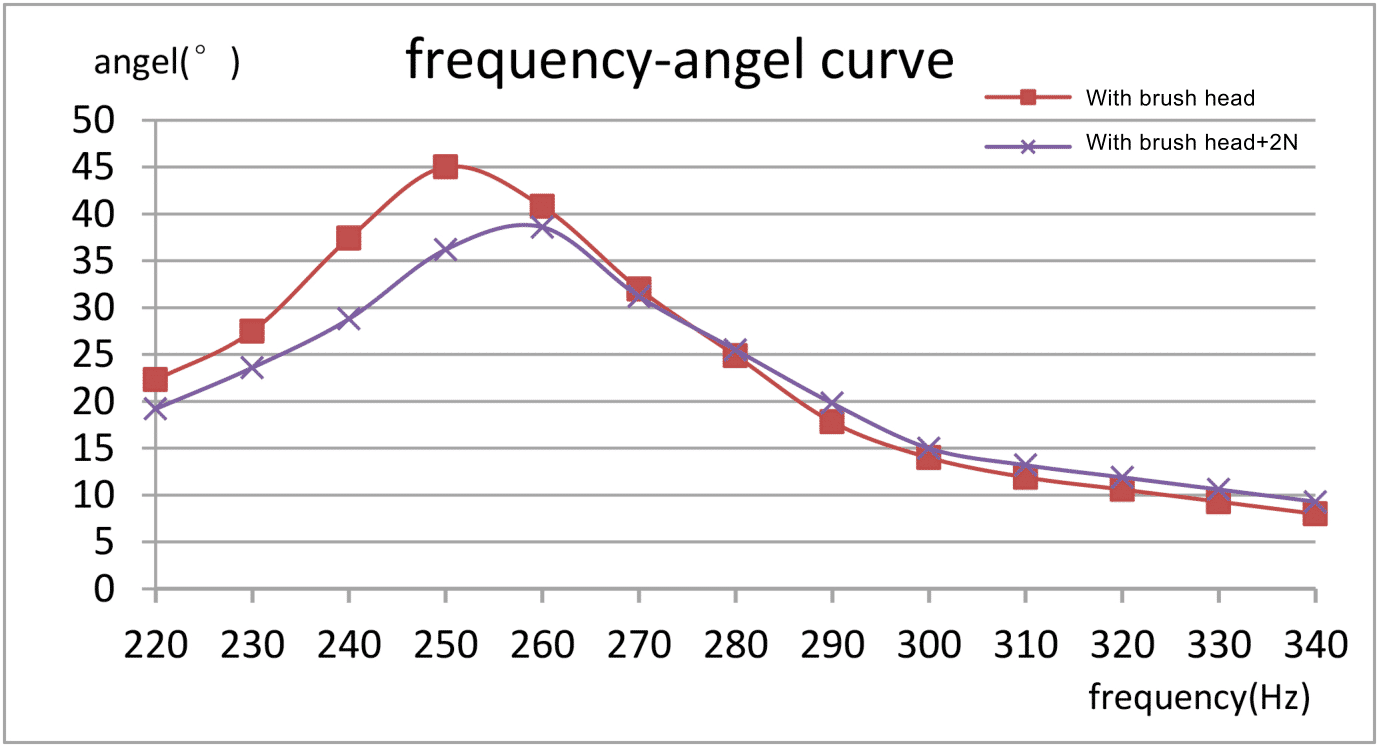

  • Operating Frequency Range: 220–360 Hz
  • No-load Vibration Frequency: 39,600 times/minute
  • Starting Torque: Up to 12 mNm

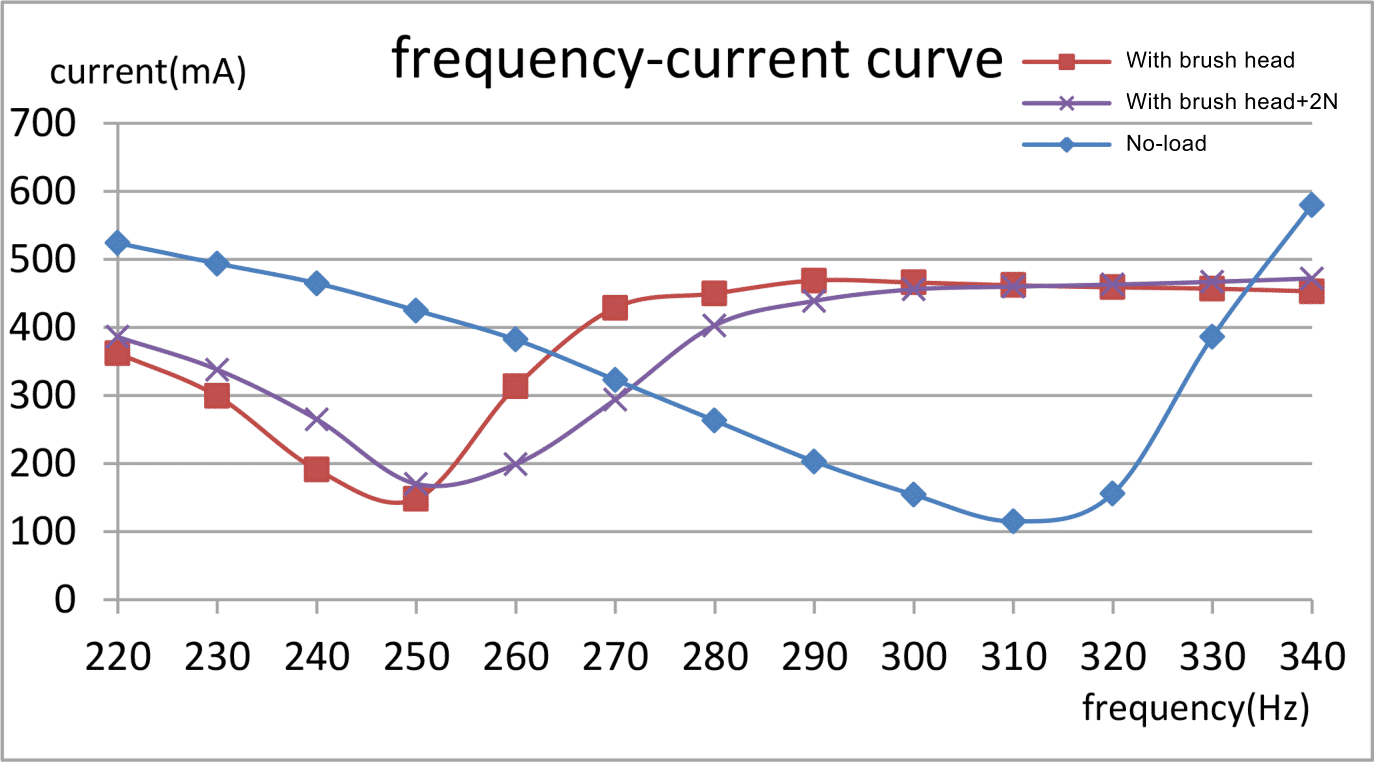

  • No-load Current: 80–95 mA, Load Current: 340–440 mA
  • Rotor Inertia: 1.0 gcm²
  • Operating Temperature: -10°C to +60°C
  • Compact Weight: 19 g

Benefits & Competitive Advantages:

  • Small form factor with strong vibration output for space-constrained designs
  • Wide frequency range enables optimized cleaning and care performance
  • Low power consumption supports portable and battery-powered devices
  • Customizable options available for lead wires, shaft length, and coil configuration to meet specific application demands
  • Engineered for reliability and extended service life in intensive duty cycles
