Beschreibung

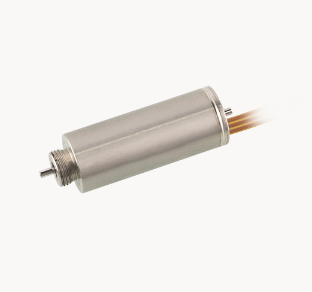

Slotless Brushless DC Motor, 10ZWWC25 can avoid the pulsation of air gap magnetic induction caused by uneven magnetic resistance in the teeth.
It can eliminate the pulse loss in the armature core and the surface loss on the main pole surface.
10ZWWC25 Slotless Brushless DC Motor has high durability, low electrical noise and high efficiency.
Maximum efficiency of motor reaches 86% and this motor is suitable for the servo system which needs quick movement and high power.
10ZWWC25 Rated Power is 65W and Peak Torque is 90mN.m
