Description

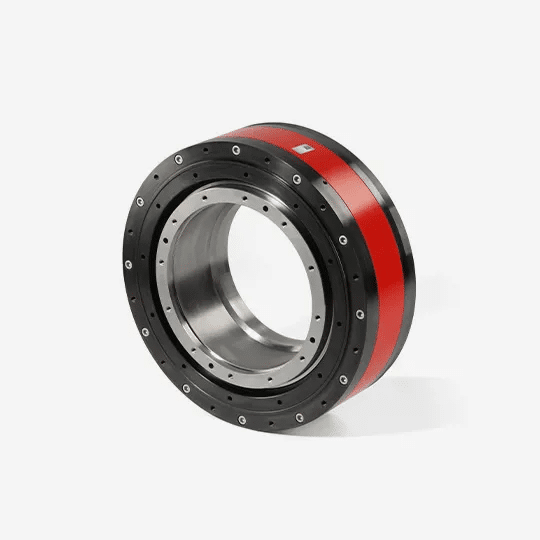

SKA Rotary Table
Stall Torque: 210 – 760 Nm
Peak Torque: 458 – 2400 Nm
Rated Speed: 70/100 rpm
Rated Volatage: 400 Vac
External Diameter (D): 490 mm
Holed Diameter (d): 290 mm
SKA Rotary Table
Stall Torque: 210 – 760 Nm
Peak Torque: 458 – 2400 Nm
Rated Speed: 70/100 rpm
Rated Volatage: 400 Vac
External Diameter (D): 490 mm
Holed Diameter (d): 290 mm
SKA Rotary Table
Stall Torque: 210 – 760 Nm
Peak Torque: 458 – 2400 Nm
Rated Speed: 70/100 rpm
Rated Volatage: 400 Vac
External Diameter (D): 490 mm
Holed Diameter (d): 290 mm
Parameter | Unit | SKA RT 430.90 56 |
---|---|---|
Stall torque | Nm | 450 |
Peak torque | Nm | 1200 |
Rated torque | Nm | 332 |
Rated voltage | Vac | 400 |
Stall current | Arms | 19.43 |
Peak current | Arms | 70 |
Rated current | Arms | 14.77 |
Rated speed | rpm | 100 |
Maximum speed | rpm | 150 |
Torque constant | Nm/Arms | 23.16 |
Voltage constant | Vrms/krpm | 1400 |
Phase/phase resistance | Ohm | 0.98 |
Phase/phase inductance | mH | 9.8 |
Electrical time constant | msec | 10.1 |
Thermal resistance | °C/W | 0.12 |
Mechanical time constant | ms | 3.43 |
Max. theoretical acceleration | rad/s2 | 954 |
Rotor inertia | kg·cm² | 12577 |
Motor height H | mm | 210 |
Motor weight | Kg | 161.1 |
Radial load | N(@30rpm) | 7700 |
Axial load | N(@60rpm) | 6700 |
Tilt moment | N(@15rpm) | 800 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
