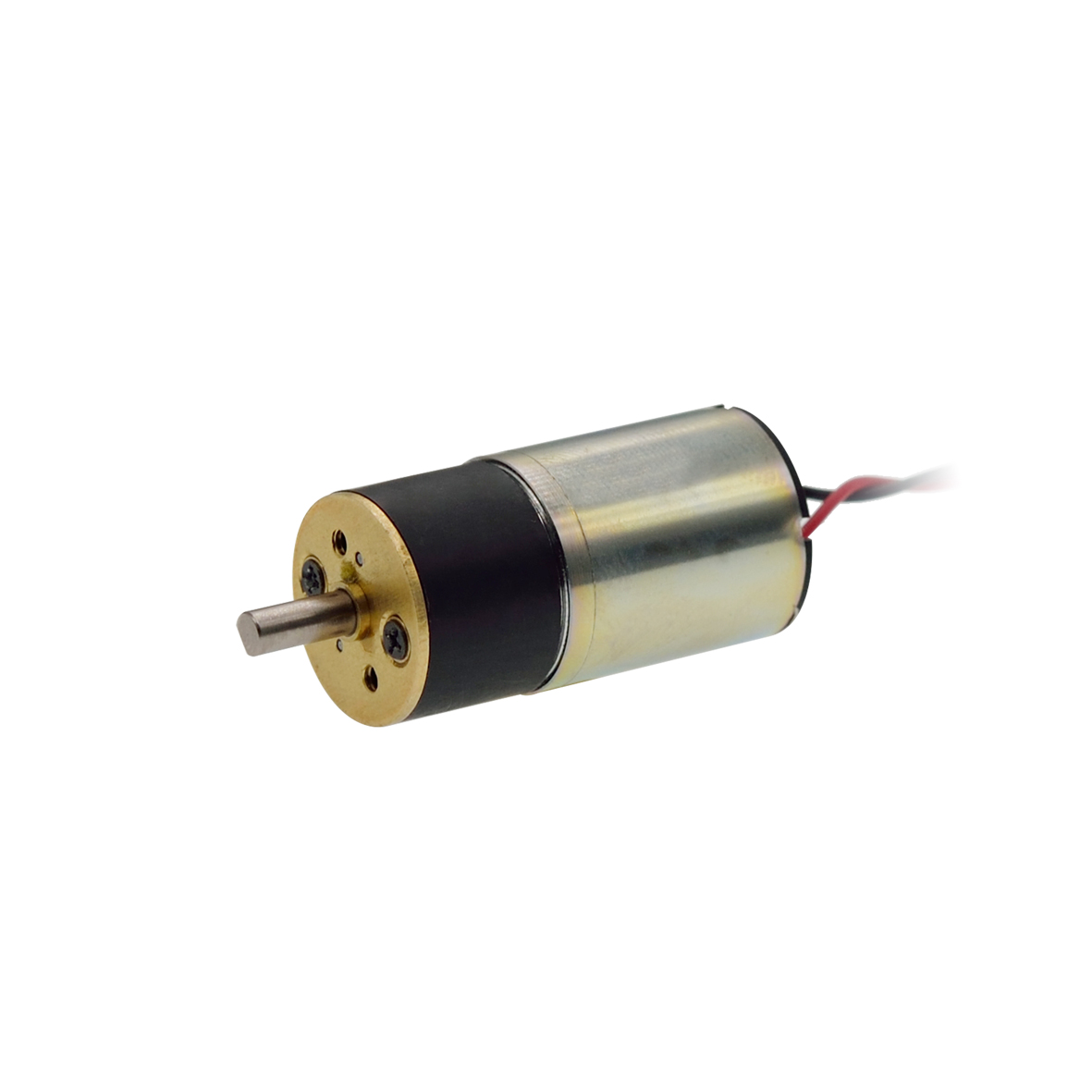

Compact 16mm, 18V coreless DC motors integrated with precision spur gearboxes. Metal CNC-processed gears and metal shell provide high durability. Gearbox supports 2–5 stages with reduction ratios from 3:1 to 360:1. Delivers up to 80 mNm max. rated torque. Ideal for medical, scientific, and industrial equipment requiring reliable, high-torque motion within constrained spaces. Options include custom coil winding and lead wire lengths.

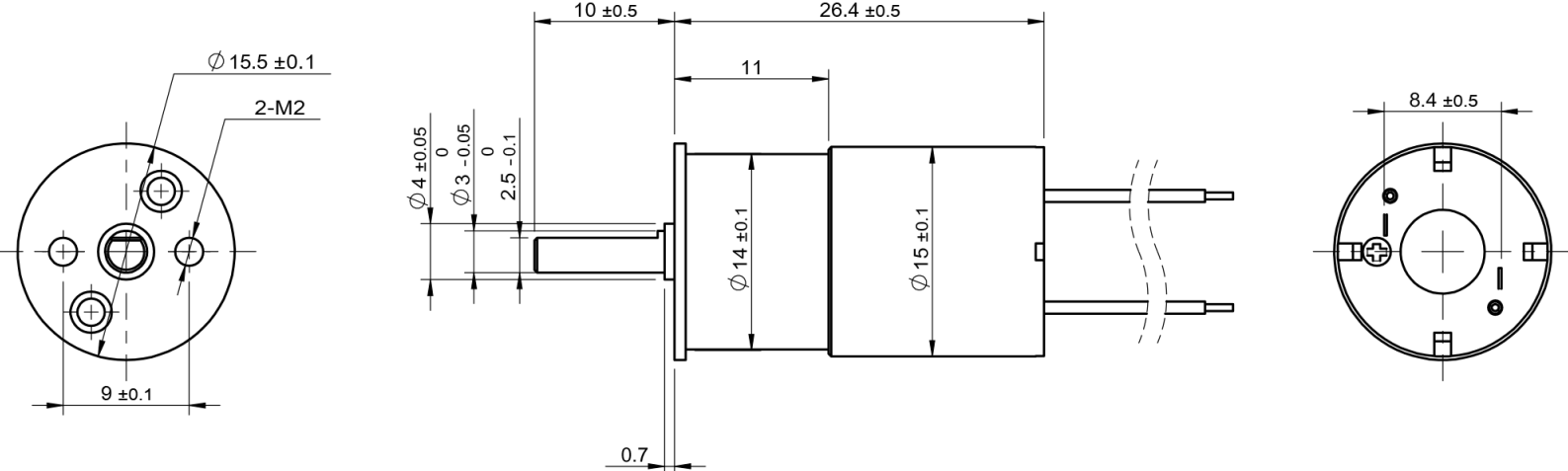

| Parameter | Unit | 1515N5M07-220-18.0 | 1515N5M10-220-12.0 |
|---|---|---|---|
| Voltage | V | 18.0 | 12.0 |
| Terminal resistance | Ω | 30.8 | 8.1 |
| No-load speed | rpm | 22000 | 24000 |
| No-load current | mA | 15 | 50 |
| Stall torque | mNm | 4.4 | 6.6 |
| Stall current | mA | 590 | 1480 |
| Nominal torque | mNm | 1 | 1.5 |
| Nominal speed | rpm | 16890 | 18540 |
| Nominal current | mA | 150 | 380 |
| Max. output power | W | 2.52 | 4.15 |
| Max. efficiency | % | 71 | 67 |
| Back-EMF constant | mV/rpm | 0.8 | 0.5 |
| Torque constant | mNm/A | 7.6 | 4.6 |
| Speed/torque gradient | rpm/mNm | 5000 | 3640 |
| Rotor inertia | gcm² | 0.21 | 0.21 |
| Weight | g | 12 | 12 |
| Operating temperature range | °C | -10~+80 | -10~+80 |
| Gearbox stages | Unit | 2 | 4 | 4 | 4 | 5 | 5 | 5 | — |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 3.7.10 | 16.17.20.30.35 | 50.63 | 70.86 | 115.150 | 210.250 | 360 | — |
| Max. rated torque | mNm | 20 | 30 | 40 | 50 | 60 | 70 | 80 | — |
| Max. momentary torque | mNm | 60 | 90 | 120 | 150 | 180 | 210 | 240 | — |
| Length（L） | mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | — |
| Shell material | — | Metal | – | – | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1515N5M07-220-18.0 |
|---|---|---|
| Voltage | V | 18.0 |
| Terminal resistance | Ω | 30.8 |
| No-load speed | rpm | 22000 |
| No-load current | mA | 15 |
| Stall torque | mNm | 4.4 |
| Stall current | mA | 590 |
| Nominal torque | mNm | 1 |
| Nominal speed | rpm | 16890 |
| Nominal current | mA | 150 |
| Max. output power | W | 2.52 |
| Max. efficiency | % | 71 |
| Back-EMF constant | mV/rpm | 0.8 |
| Torque constant | mNm/A | 7.6 |
| Speed/torque gradient | rpm/mNm | 5000 |
| Rotor inertia | gcm² | 0.21 |
| Weight | g | 12 |
| Operating temperature range | °C | -10~+80 |
| Gearbox stages | Unit | 2 | 4 | 4 | 4 | 5 | 5 | 5 | — |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 3.7.10 | 16.17.20.30.35 | 50.63 | 70.86 | 115.150 | 210.250 | 360 | — |
| Max. rated torque | mNm | 20 | 30 | 40 | 50 | 60 | 70 | 80 | — |
| Max. momentary torque | mNm | 60 | 90 | 120 | 150 | 180 | 210 | 240 | — |
| Length（L） | mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | — |
| Shell material | — | Metal | – | – | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1515N5M10-220-12.0 |
|---|---|---|
| Voltage | A | 12.0 |
| Terminal resistance | Ω | 8.1 |
| No-load speed | rpm | 24000 |
| No-load current | mA | 50 |
| Stall torque | mNm | 6.6 |
| Stall current | mA | 1480 |
| Nominal torque | mNm | 1.5 |
| Nominal speed | rpm | 18540 |
| Nominal current | mA | 380 |
| Max. output power | W | 4.15 |
| Max. efficiency | % | 67 |
| Back-EMF constant | mV/rpm | 0.5 |
| Torque constant | mNm/A | 4.6 |
| Speed/torque gradient | rpm/mNm | 3640 |
| Rotor inertia | gcm² | 0.21 |
| Weight | g | 12 |
| Operating temperature range | °C | -10~+80 |
| Gearbox stages | Unit | 2 | 4 | 4 | 4 | 5 | 5 | 5 | — |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 3.7.10 | 16.17.20.30.35 | 50.63 | 70.86 | 115.150 | 210.250 | 360 | — |
| Max. rated torque | mNm | 20 | 30 | 40 | 50 | 60 | 70 | 80 | — |
| Max. momentary torque | mNm | 60 | 90 | 120 | 150 | 180 | 210 | 240 | — |
| Length（L） | mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | — |
| Shell material | — | Metal | – | – | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
