Description

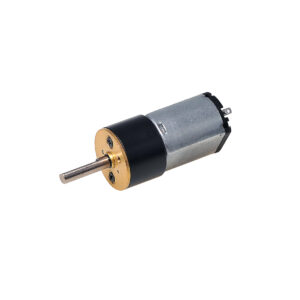

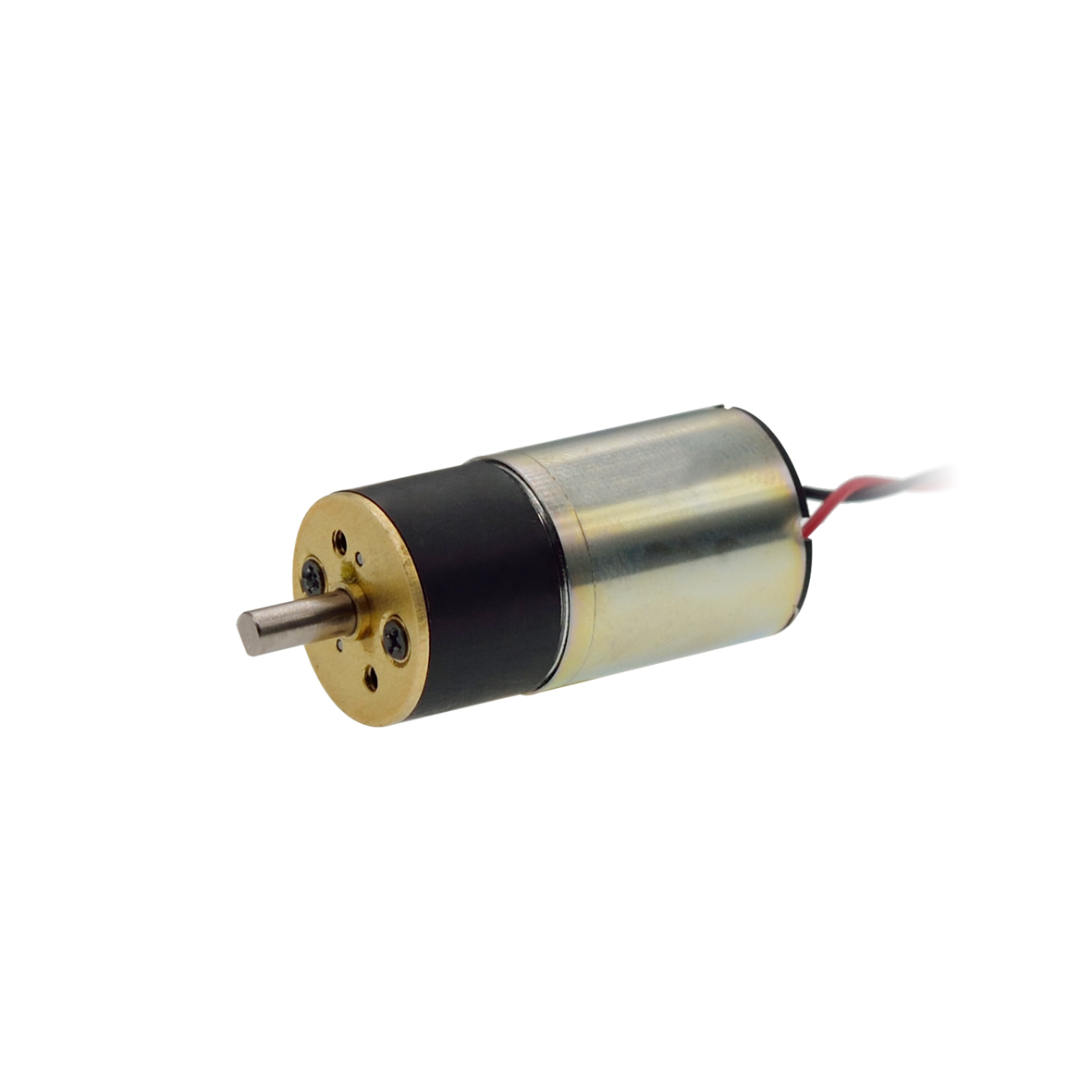

16mm 18V coreless motor with spur gearbox
1526—16MS—1515N5M10-220-12.0
incl. 19% VAT
16mm 18V coreless motor with spur gearbox
| Specification | 1526—16MS—1515N5M10-220-12.0 |
|---|---|
| Voltage | 12.0 A |
| Terminal resistance | 8.1 Ω |
| No-load speed | 24000 rpm |
| No-load current | 50 mA |
| Stall torque | 6.6 mNm |
| Stall current | 1480 mA |
| Nominal torque | 1.5 mNm |
| Nominal speed | 18540 rpm |
| Nominal current | 380 mA |
| Max. output power | 4.15 W |
| Max. efficiency | 67 % |
| Back-EMF constant | 0.5 mV/rpm |
| Torque constant | 4.6 mNm/A |
| Speed/torque gradient | 3640 rpm/mNm |
| Rotor inertia | 0.21 g·cm² |
| Weight | 14.2 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
