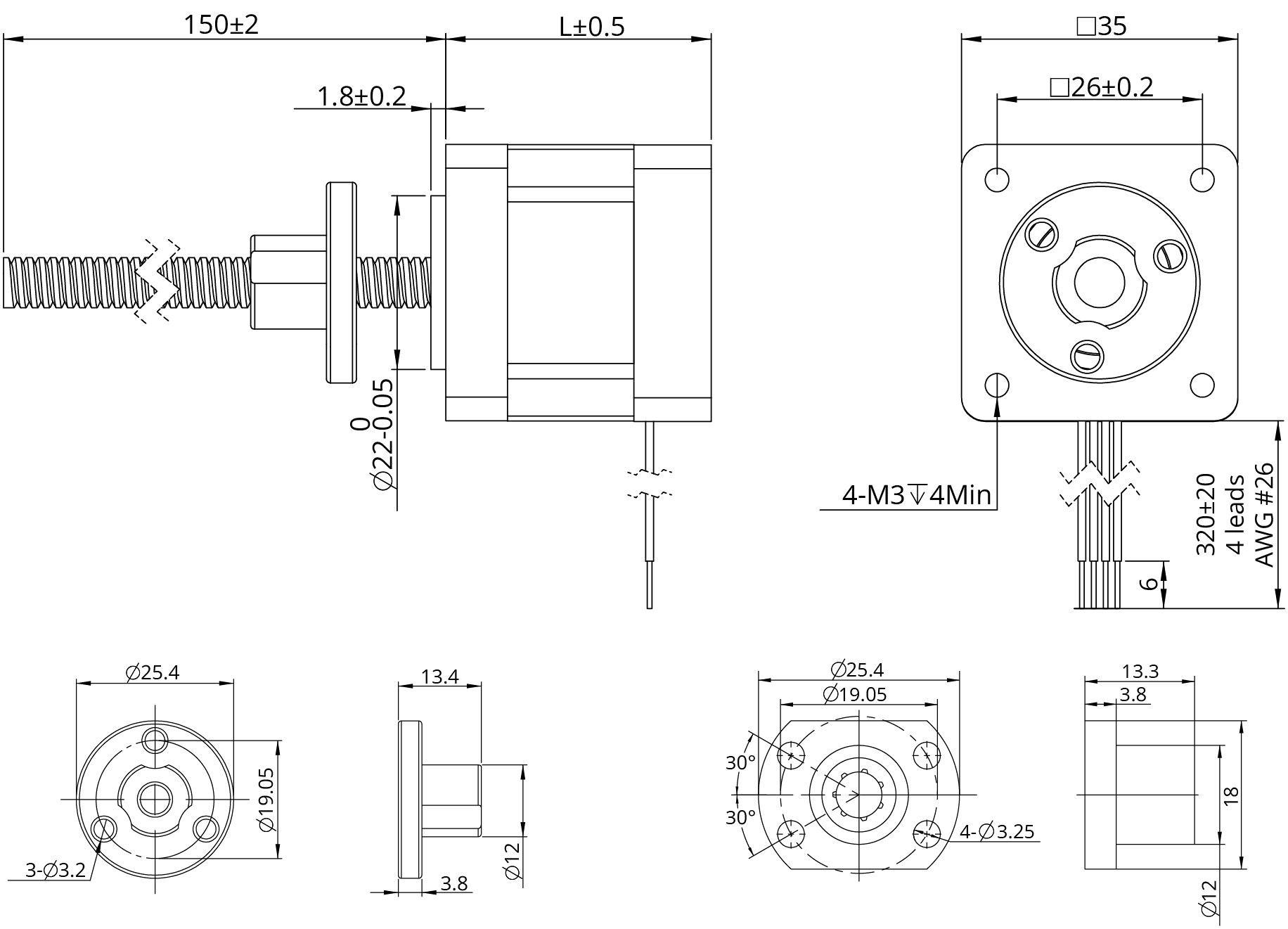

![SLSLA - Size 14 [35mm]](https://www.kocomotion.de/wp-content/uploads/2025/02/Stepper-lead-screw_14_Non-captive-1.png)
Motor Characteristics
| Parameter | Unit | 14-2105 | 14-2110 | 14-2115 | 14-2205 | 14-2210 | 14-2215 |
|---|---|---|---|---|---|---|---|
| Voltage | V | 6.6 | 3.5 | 2.7 | 12 | 6 | 4 |
| Current | A | 0.5 | 1 | 1.5 | 0.5 | 1 | 1.5 |
| Resistance | Ω | 13.2 | 3.5 | 1.8 | 24 | 6 | 2.7 |
| Inductance | mH | 14 | 3.6 | 1.9 | 29 | 7.2 | 3.2 |
| Weight | g | 189 | 189 | 189 | 210 | 210 | 210 |
| Lead Wire No. | 4 | 4 | 4 | 4 | 4 | 4 | |
| Motor Length | mm | 33.6 | 33.6 | 33.6 | 45.6 | 45.6 | 45.6 |
| Size | Nema | 14 | 14 | 14 | 14 | 14 | 14 |
| Flange size | mm | 35 | 35 | 35 | 35 | 35 | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
SLSLA – Size 14 [35mm]
14-2105
14-2110
14-2115
14-2205
14-2210
14-2215
14-2105
14-2110
14-2115
| Parameter | Unit | 14-2105 |
|---|---|---|
| Voltage | V | 6.6 |
| Current | A | 0.5 |
| Resistance | Ω | 13.2 |
| Inductance | mH | 14 |
| Weight | g | 189 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 33.6 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
14-2105
SLSLA – Size 14 [35mm]
| Parameter | Unit | 14-2110 |
|---|---|---|
| Voltage | V | 3.5 |
| Current | A | 1 |
| Resistance | Ω | 3.5 |
| Inductance | mH | 3.6 |
| Weight | g | 189 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 33.6 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
14-2110
SLSLA – Size 14 [35mm]
| Parameter | Unit | 14-2115 |
|---|---|---|
| Voltage | V | 2.7 |
| Current | A | 1.5 |
| Resistance | Ω | 1.8 |
| Inductance | mH | 1.9 |
| Weight | g | 189 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 33.6 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
14-2115
SLSLA – Size 14 [35mm]
| Parameter | Unit | 14-2205 |
|---|---|---|
| Voltage | V | 12 |
| Current | A | 0.5 |
| Resistance | Ω | 24 |
| Inductance | mH | 29 |
| Weight | g | 210 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 45.6 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
14-2205
SLSLA – Size 14 [35mm]
| Parameter | Unit | 14-2210 |
|---|---|---|
| Voltage | V | 6 |
| Current | A | 1 |
| Resistance | Ω | 6 |
| Inductance | mH | 7.2 |
| Weight | g | 210 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 45.6 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
14-2210
SLSLA – Size 14 [35mm]
| Parameter | Unit | 14-2215 |
|---|---|---|
| Voltage | V | 4 |
| Current | A | 1.5 |
| Resistance | Ω | 2.7 |
| Inductance | mH | 3.2 |
| Weight | g | 210 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 45.6 |
| Size | Nema | 14 |
| Flange size | mm | 35 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 6.35 | 3 | 6.35 | yes | yes | yes | yes |
| A | 0.635 | 6.35 | 3.2 | yes | yes | yes | yes | |
| B | 1.2192 | 6.35 | 6.1 | yes | yes | yes | yes | |
| D | 1.27 | 6.35 | 6.4 | yes | yes | yes | yes | |
| F | 1.5875 | 6.35 | 7.9 | yes | yes | yes | yes | yes |
| J | 2.4384 | 6.35 | 12.2 | yes | yes | yes | yes | |
| K | 2.54 | 6.35 | 12.7 | yes | yes | yes | yes | |
| L | 3.175 | 6.35 | 15.9 | yes | yes | yes | yes | |
| Q | 4.8768 | 6.35 | 24.4 | yes | yes | yes | yes | |
| R | 5.08 | 6.35 | 25.4 | yes | yes | yes | yes | |
| S | 6.35 | 6.35 | 31.8 | yes | yes | yes | yes | |
| U | 8.4667 | 6.35 | 42.3 | yes | yes | yes | yes | |
| W | 9.7536 | 6.35 | 48.8 | yes | yes | yes | yes | |
| Y | 12.7 | 6.35 | 63.5 | yes | yes | yes | yes | |
| Z | 25.4 | 6.35 | 127 | yes | yes | yes | yes | |
| AB | 1 | 6 | 5 | yes | yes | yes | yes | |
| AB | 1 | 6.35 | 5 | yes | yes | yes | yes | |
| AB | 1 | 8 | 5 | yes | yes | yes | yes | |
| G | 2 | 6.35 | 10 | yes | yes | yes | yes | |
| G | 2 | 8 | 10 | yes | yes | yes | yes | |
| M | 4 | 8 | 20 | yes | yes | yes | yes | |
| T | 8 | 8 | 40 | yes | yes | yes | yes | |
| E | 5 | 6 | 25 | yes | yes | yes | yes | |
| E | 5 | 8 | 25 | yes | yes | yes | yes | |
| C | 10 | 8 | 50 | yes | yes | yes | yes | |
| N | 0.794 | 6.35 | 4 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
