The DS50mm Series is a high-performance brushless DC motor family with a 50mm stator diameter, delivering up to 163 W rated power and 0.96 N·m peak torque. Designed for precision and efficiency, it features Hall sensor feedback, high insulation reliability, star winding, and robust operational parameters, ideal for advanced automation, robotics, and industrial applications requiring compact size and high dynamic response.
| Parameter | Unit | 50ZWC15X-1 |
|---|---|---|

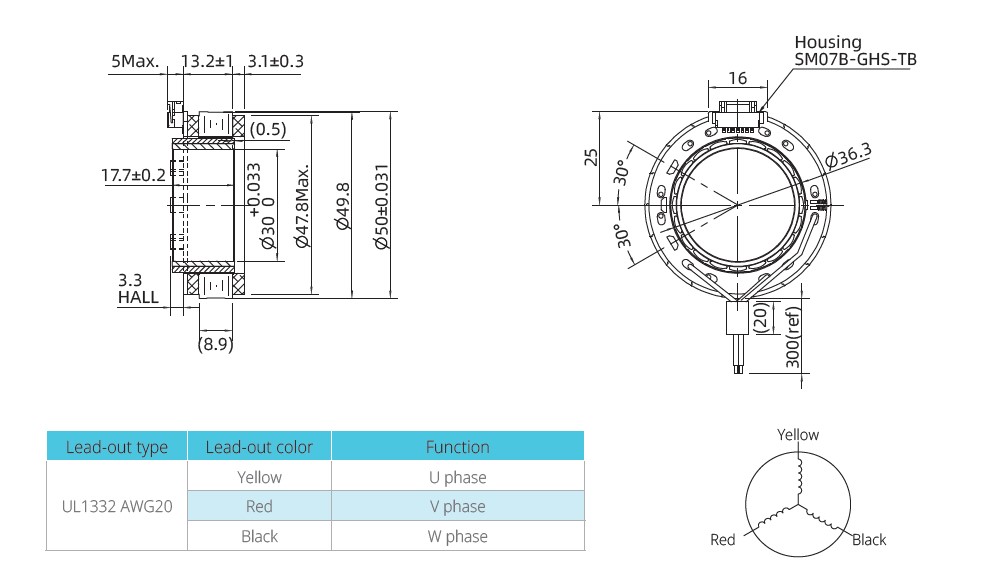

| Stator Outer Diameter | mm | 50±0.031 |
| Rotor Inner Bore | mm | 30+0.033 |
| Number of Slots | 18 | |
| Number of Pole Pairs | 10 | |
| Phase Resistance | Ω | 0.62 |
| Phase Inductance | mH | 0.43 |
| Winding Connection Type | Star shape | |
| Insulation Class | B | |
| Duty Cycle | S2 | |
| Feedback Method | Hall sensor | |
| Commutation Angle | 120° | |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s | |
| Insulation Resistance | 100 MΩ/500VDC | |
| Stator Weight | g | 77.5 |
| Rotor Weight | g | 38 |
| No-Load Speed | RPM | 6400 |
| No-Load Current | A | 0.4(REF) |
| Rated Voltage | VDC | 48 |
| Rated Power | W | 163 |
| Rated Torque | N·m | 0.3 |
| Rated Speed | RPM | 5200 |
| Rated Current | A | 3.6 |
| Torque Constant | Nm/A | 0.09 |
| Back EMF Constant (RMS) | Vrms/Krpm | 5.5 |
| Peak Torque | N·m | 0.96 |
| Peak Current | A | 10.7 |
| Moment of Inertia | g·cm² | 100 |

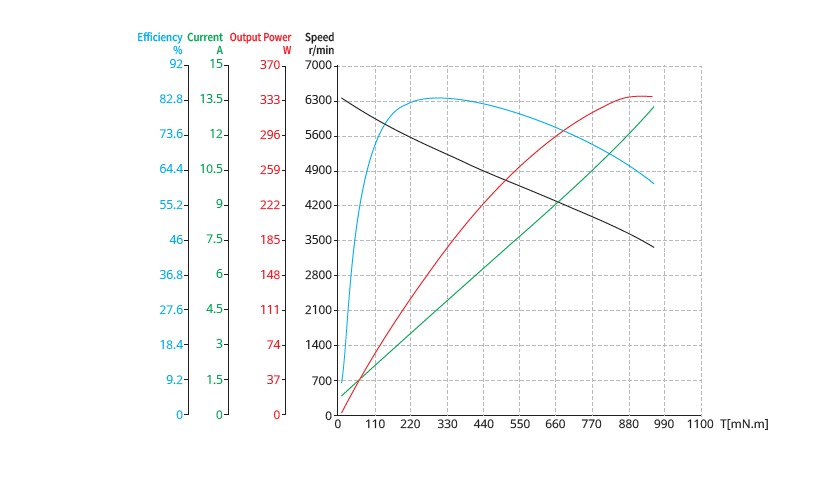

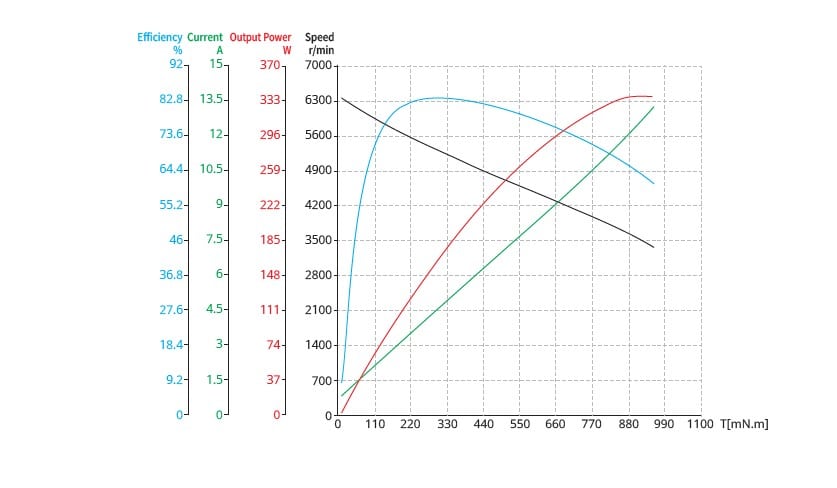

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
