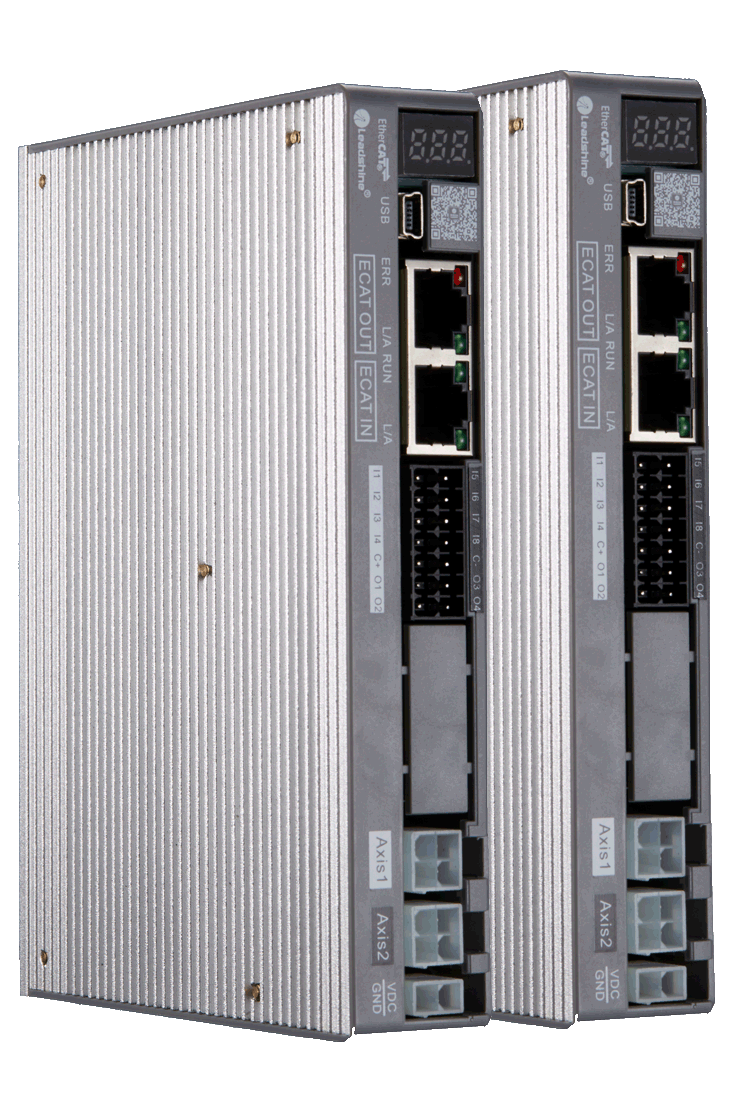

2EM3EIP Series
2EM3EIP SeriesDual-axis control, EtherNet/IP communication, power voltage 20~80VDC, max output current 7.0A
Motor charactistics
| Parameter | Unit | 2EM3EIP-522 | 2EM3EIP-556 | 2EM3EIP-870 |
|---|---|---|---|---|
| Operation Voltage | VDC | 20-50 | 20-50 | 20-80 |
| Output Current | A, Peak | 2.2 | 5.6 | 7 |
| Logical Voltage | VDC | 12-24VDC | 12-24VDC | 12-24VDC |
| Command Source | EtherNet/IP | EtherNet/IP | EtherNet/IP | |
| # of Inputs | 2*4 | 2*4 | 2*4 | |
| # of Outputs | 2*2 | 2*2 | 2*2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

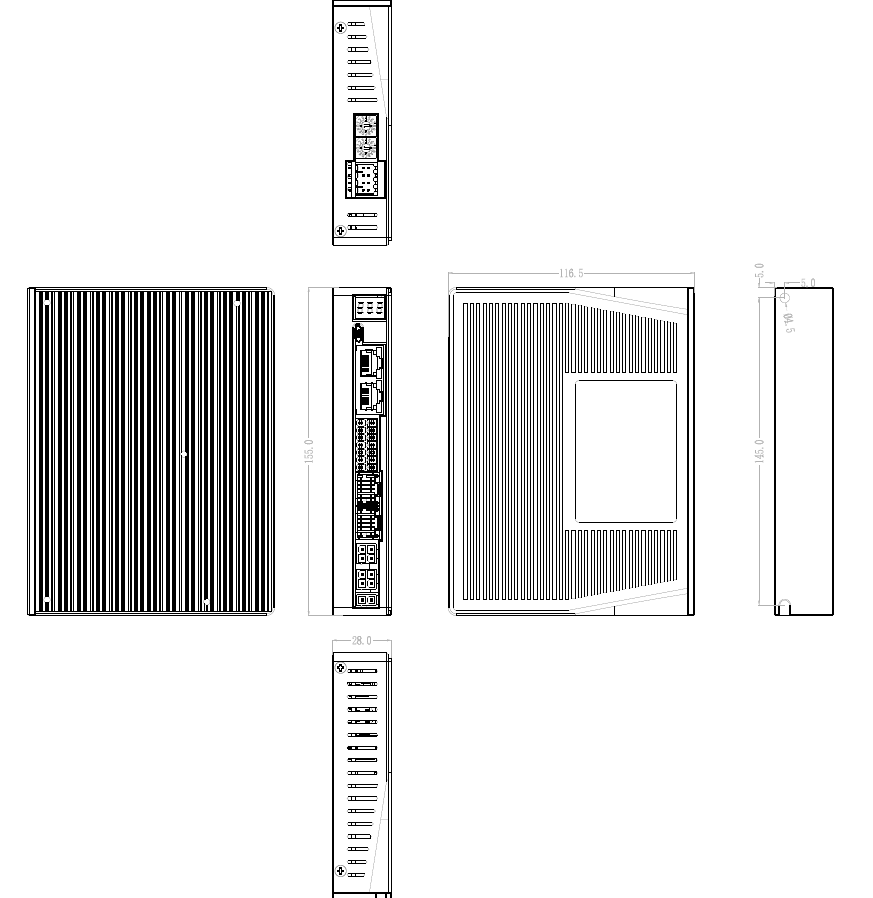

2EM3EIP-522
2EM3EIP-556
2EM3EIP-870
2EM3EIP-522
datasheet
2EM3EIP-556
datasheet
| Parameter | Unit | 2EM3EIP-522 |
|---|---|---|
| Operation Voltage | VDC | 20-50 |
| Output Current | A, Peak | 2.2 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | EtherNet/IP | |
| # of Inputs | 2*4 | |
| # of Outputs | 2*2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
2EM3EIP-522
2EM3EIP-522
datasheet
| Parameter | Unit | 2EM3EIP-556 |
|---|---|---|
| Operation Voltage | VDC | 20-50 |
| Output Current | A, Peak | 5.6 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | EtherNet/IP | |
| # of Inputs | 2*4 | |
| # of Outputs | 2*2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
2EM3EIP-556
2EM3EIP-556
datasheet
| Parameter | Unit | 2EM3EIP-870 |
|---|---|---|
| Operation Voltage | VDC | 20-80 |
| Output Current | A, Peak | 7 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | EtherNet/IP | |
| # of Inputs | 2*4 | |
| # of Outputs | 2*2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
