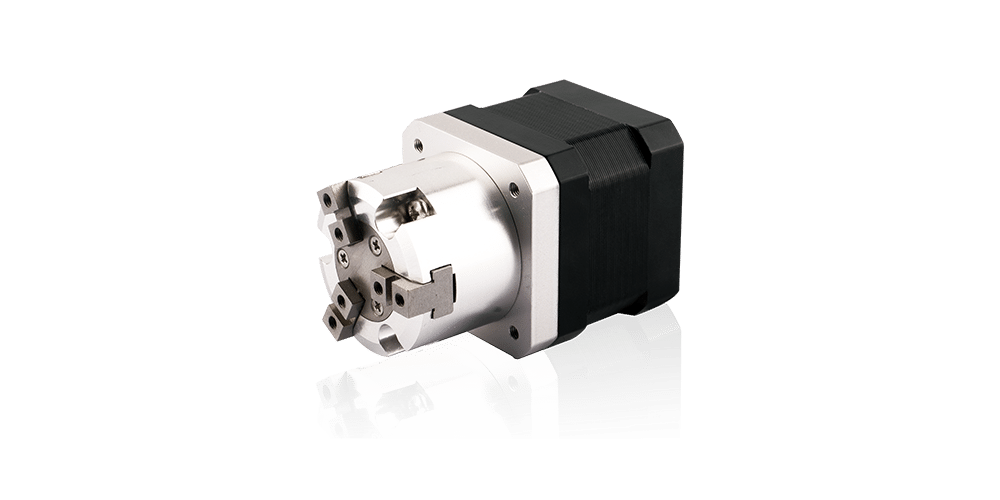

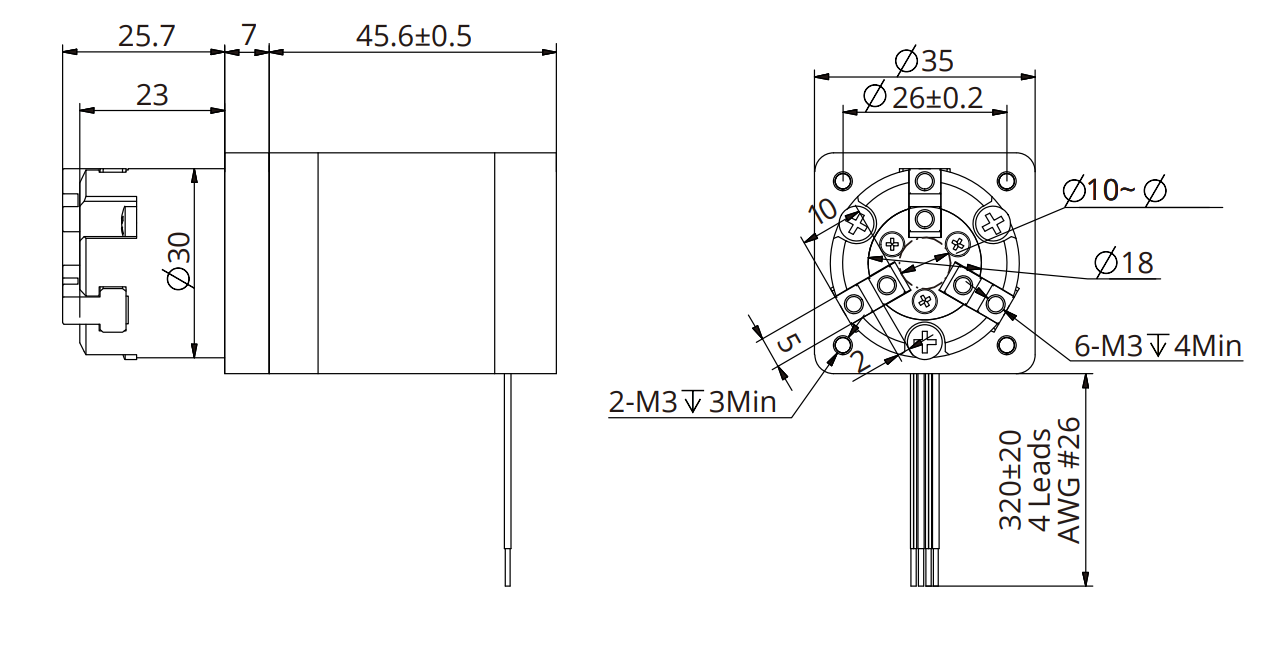

Motor Characteristics
| Parameter | Unit | 14N2105 | 14N2110 | 14N2115 | 14N2205 | 14N2210 | 14N2215 |
|---|---|---|---|---|---|---|---|
| Rated voltage | V | 6.6 | 3.5 | 2.7 | 12.0 | 6.0 | 4.0 |
| Current | A | 0.5 | 1.0 | 1.5 | 0.5 | 1.0 | 1.5 |
| Winding resistance | Ω | 13.2 | 3.5 | 1.8 | 24.0 | 6.0 | 2.7 |
| Inductance | mH | 14.0 | 3.6 | 1.9 | 29.0 | 7.2 | 3.2 |
| Weight | g | 189 | 189 | 189 | 210 | 210 | 210 |
| Lead wire No. | 4 | 4 | 4 | 4 | 4 | 4 | |
| Motor length | mm | 33.6 | 33.6 | 33.6 | 33.6 | 45.6 | 45.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 14N2105 |
|---|---|---|
| Rated voltage | V | 6.6 |
| Current | A | 0.5 |
| Winding resistance | Ω | 13.2 |
| Inductance | mH | 14.0 |
| Weight | g | 189 |
| Lead wire No. | 4 | |
| Motor length | mm | 33.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 14N2110 |
|---|---|---|
| Rated voltage | V | 3.5 |
| Current | A | 1.0 |
| Winding resistance | Ω | 3.5 |
| Inductance | mH | 3.6 |
| Weight | g | 189 |
| Lead wire No. | 4 | |
| Motor length | mm | 33.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 14N2115 |
|---|---|---|
| Rated voltage | V | 2.7 |
| Current | A | 1.5 |
| Winding resistance | Ω | 1.8 |
| Inductance | mH | 1.9 |
| Weight | g | 189 |
| Lead wire No. | 4 | |
| Motor length | mm | 33.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 14N2205 |
|---|---|---|
| Rated voltage | V | 12.0 |
| Current | A | 0.5 |
| Winding resistance | Ω | 24.0 |
| Inductance | mH | 29.0 |
| Weight | g | 210 |
| Lead wire No. | 4 | |
| Motor length | mm | 33.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 14N2210 |
|---|---|---|
| Rated voltage | V | 6.0 |
| Current | A | 1.0 |
| Winding resistance | Ω | 6.0 |
| Inductance | mH | 7.2 |
| Weight | g | 210 |
| Lead wire No. | 4 | |
| Motor length | mm | 45.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 14N2215 |
|---|---|---|
| Rated voltage | V | 4.0 |
| Current | A | 1.5 |
| Winding resistance | Ω | 2.7 |
| Inductance | mH | 3.2 |
| Weight | g | 210 |
| Lead wire No. | 4 | |
| Motor length | mm | 45.6 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Screw Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | AA | 0.6096 mm | 85 N | 42.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | D | 1.27 mm | 73 N | 36.5 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | K | 2.54 mm | 42 N | 21 N |
| 35 mm | 33.6 | 14N2105, 14N2110, 14N2115 | 6 mm | R | 5.08 mm | 21 N | 10.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | AA | 0.6096 mm | 193 N | 96.5 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | D | 1.27 mm | 184 N | 92 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | K | 2.54 mm | 110 N | 55 N |
| 35 mm | 45.6 | 14N2205, 14N2210, 14N2215 | 6 mm | R | 5.08 mm | 67 N | 33.5 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
