Compact 22 mm BLDC motor for space-constrained, high-speed drives requiring strong dynamic performance. The 24 V motor uses Hall sensor feedback and a core winding with optimized magnetic circuit to deliver 19.9 W nominal power, 0.019 Nm nominal torque, and speeds up to 12,000 rpm.
| Parameter | Unit | 22ZWC48L-1 |
|---|---|---|
| Pole pair | 2 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | g | 67.7 |
| Rated voltage | V | 24 |
| Nominal power | W | 19.9 |
| Nominal torque | Nm | 0.019 |
| Nominal speed | RPM | 10000 |
| Nominal current | A | 1.2 |
| No-load speed | RPM | 12000 |
| No-load current | A | 0.24 |
| Motor Efficiency | % | 70 |
| Winding connection method | Star shape | |
| Static torque | mNm | 3.42 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Thermal resistance housing-ambient | K/W | 0.85 |
| Motor Thermal Time Constant | min | 1.26 |
| Ambient temperature | °C | 25 |
| Maximum Winding Temperature | °C | 75 |
| Torque Constant | N·m/A | 0.016 |
| Back-EMF constant (RMS) | V/Krpm | 1.67 |
| Peak Torque | Nm | 0.057 |
| Phase inductance | mH | 0.54 |
| Peak current | A | 3.6 |
| Rotor inertia | g·cm² | 1.1 |

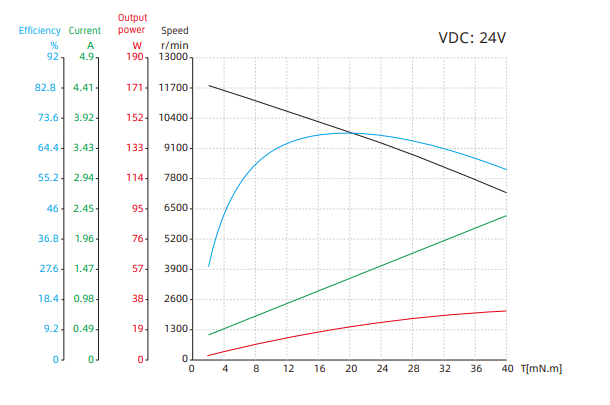

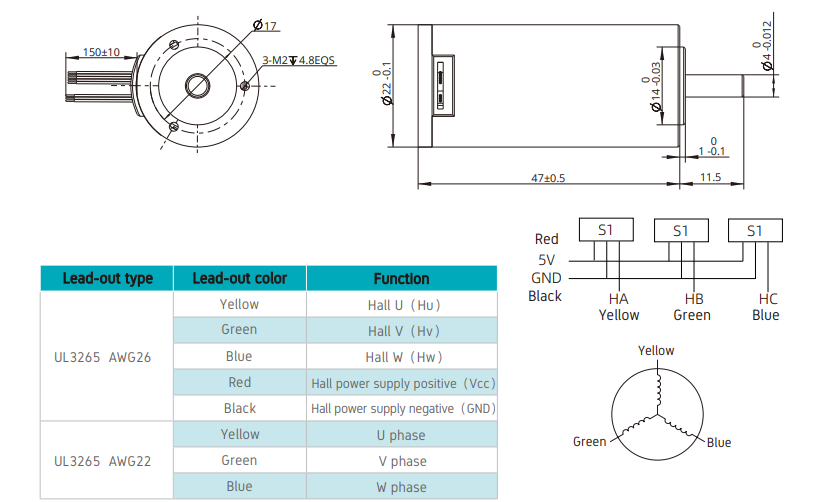

| Outer diameter | mm | 22 – 0.1 |
| Motor length | mm | 47.5 +/- 1 |
| Phase resistance | Ω | 3.053 |
| Insulation Class | B | |
| Duty Type | S2 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
