General Specifications

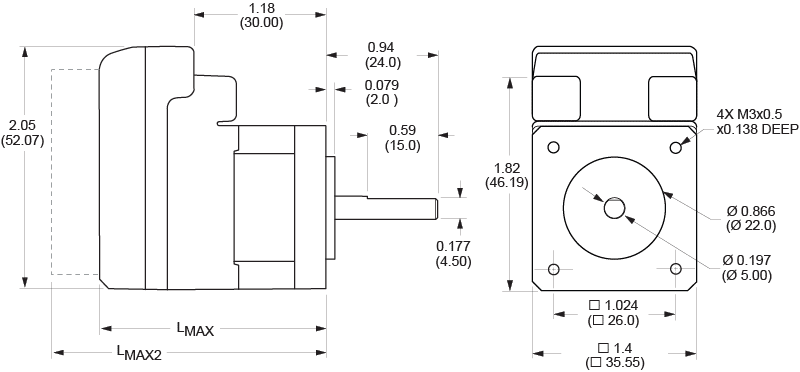

| Parameter | Unit | MDM5 NEMA 14 Step/direction Input IP20 |
|---|---|---|
| Control type | Step/direction input | |
| Feature set | Differential CW.CCW inputs | |
| P1 connector options | Power & I/O | Wire Crimp |
| P2 connector options | Comm | None |
| Communications interface | SPI | |
| Communications features | – | |
| NEMA size | 14 (36×36 mm) | |
| Holding torque range | Nm | 0.13 … 0.25 |
| Temperature heatsink (short-time) | °C | max. 85 |
| IP rating | IP20 | |
| Input voltage | +VDC | +12 to +48 |
| Power supply current requirement | A | 1.0 |
Parameter settings
| Parameter | Unit | MDM5 NEMA 14 Step/direction Input IP20 |
|---|---|---|
| Input CW +/- & CCW +/- voltage | + VDC | 5 |
| Current | mA Max | 11.7 |
| Digital Filter Range | MHz … kHz | 10 … 38.8 |
| Step Frequency | MHz Max | 5 |
| Microstep Resolutions | Steps/Rev | 200 … 51200 |
| Clock Types | Step/Direction, Step Up/Step Down, Quadrature | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
