MDM5 NEMA 14 with
MDrive Plus NEMA size 14 (36 mm) Step/direction input with SPI interface for parameterization.
This product features TTL tolerent differential clock inputs for velocity and directional control.
Holding torque range oz-in (N-cm): 18…36 (13 … 25)
I/O connector options: Wire Crimp
Com connector: None
incl. 19% VAT
Read more
incl. 19% VAT
Read more
incl. 19% VAT
Read more
incl. 19% VAT
Read more| Specification | MDM5 NEMA 14 Step/direction Input IP20 |
|---|---|
| Control type | Step/direction input |
| Feature set | Differential CW.CCW inputs |
| P1 connector options | Wire Crimp Power & I/O |
| P2 connector options | None Comm |
| Communications interface | SPI |
| Communications features | – |

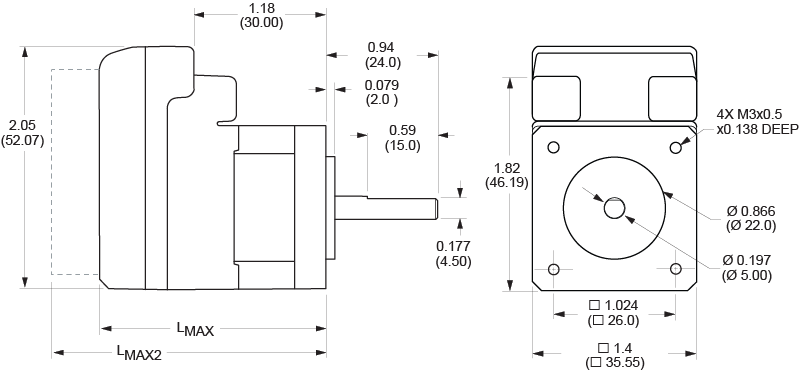

| NEMA size | 14 (36×36 mm) |
| Holding torque range | 0.13 … 0.25 Nm |
| Temperature heatsink (short-time) | max. 85 °C |
| IP rating | IP20 |
| Input voltage | +12 to +48 +VDC |
| Power supply current requirement | 1.0 A |
| Parameter settings | MDM5 NEMA 14 Step/direction Input IP20 |
|---|---|
| Input CW +/- & CCW +/- voltage | 5 + VDC |
| Current | 11.7 mA Max |
| Digital Filter Range | 10 … 38.8 MHz … kHz |
| Step Frequency | 5 MHz Max |
| Microstep Resolutions | 200 … 51200 Steps/Rev |
| Clock Types | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
