DLM - Size 35mm

DLM – Size 35mm

Login to see Prices

DLM 35mm is a compact lead screw linear module for precise linear motion in integrated machine designs. It offers customizable stroke and lead options, with max dynamic force up to 785 N, max static force up to 1247.5 N, and multiple travel-per-step configurations for application-specific positioning.

SKU: DLM – Size 35mm Categories: Linear Modules, Unkategorisiert

compare products

Motor Characteristics

Parameter	Unit	14E2105	14E2110	14E2115	14E2205	14E2210	14E2215
Rated voltage	V	6.6	3.5	2.7	12	6.0	4.0
Current	A	0.5	1.0	1.5	0.5	1.0	1.5
Winding resistance	Ω	13.2	3.5	1.8	24	6.0	2.7
Inductance	mH	14	3.6	1.9	29	7.2	3.2
Motor length	mm	33.6	33.6	33.6	45.6	45.6	45.6
Lead Wire No.		4	4	4	4	4	4

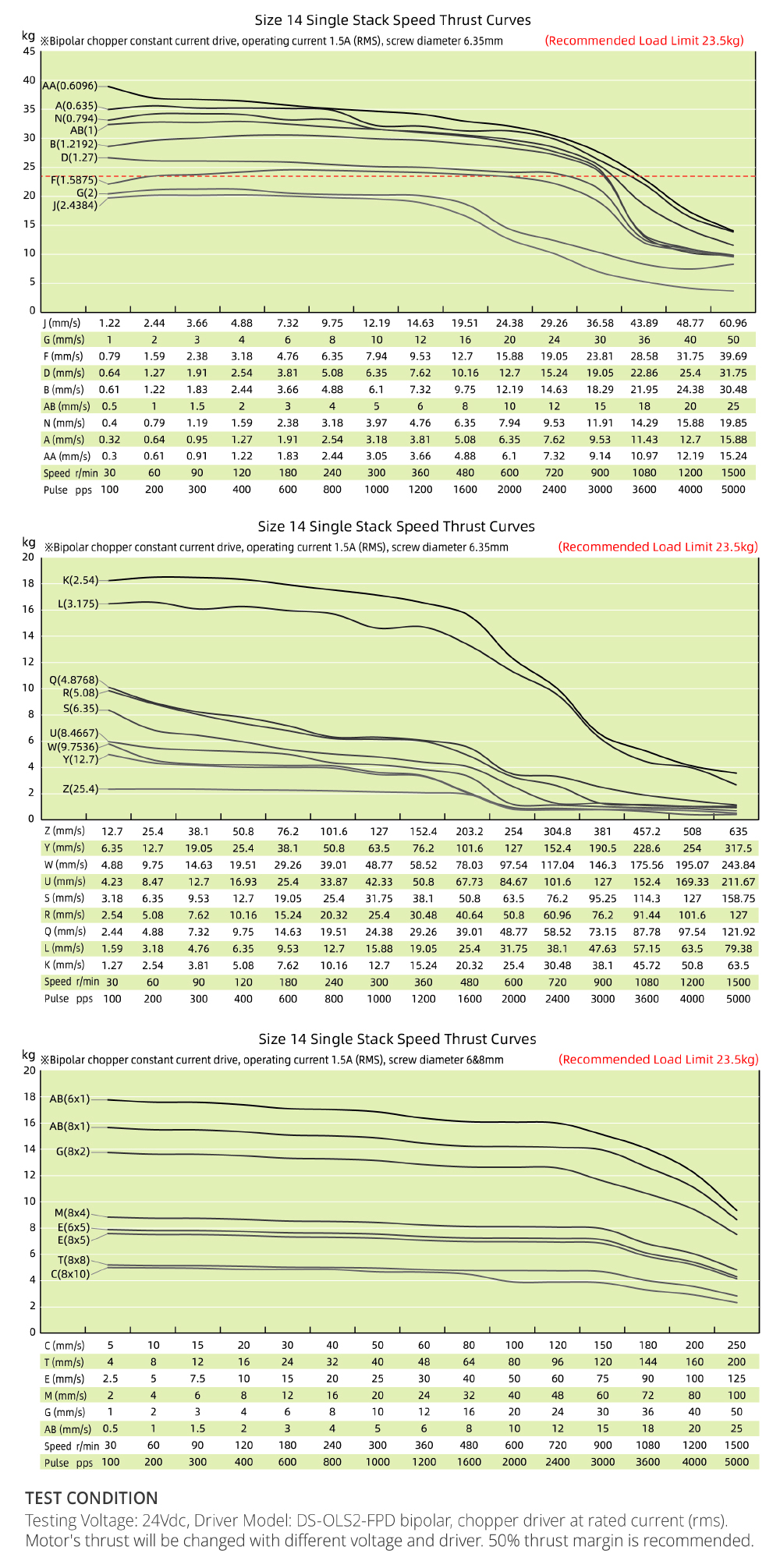

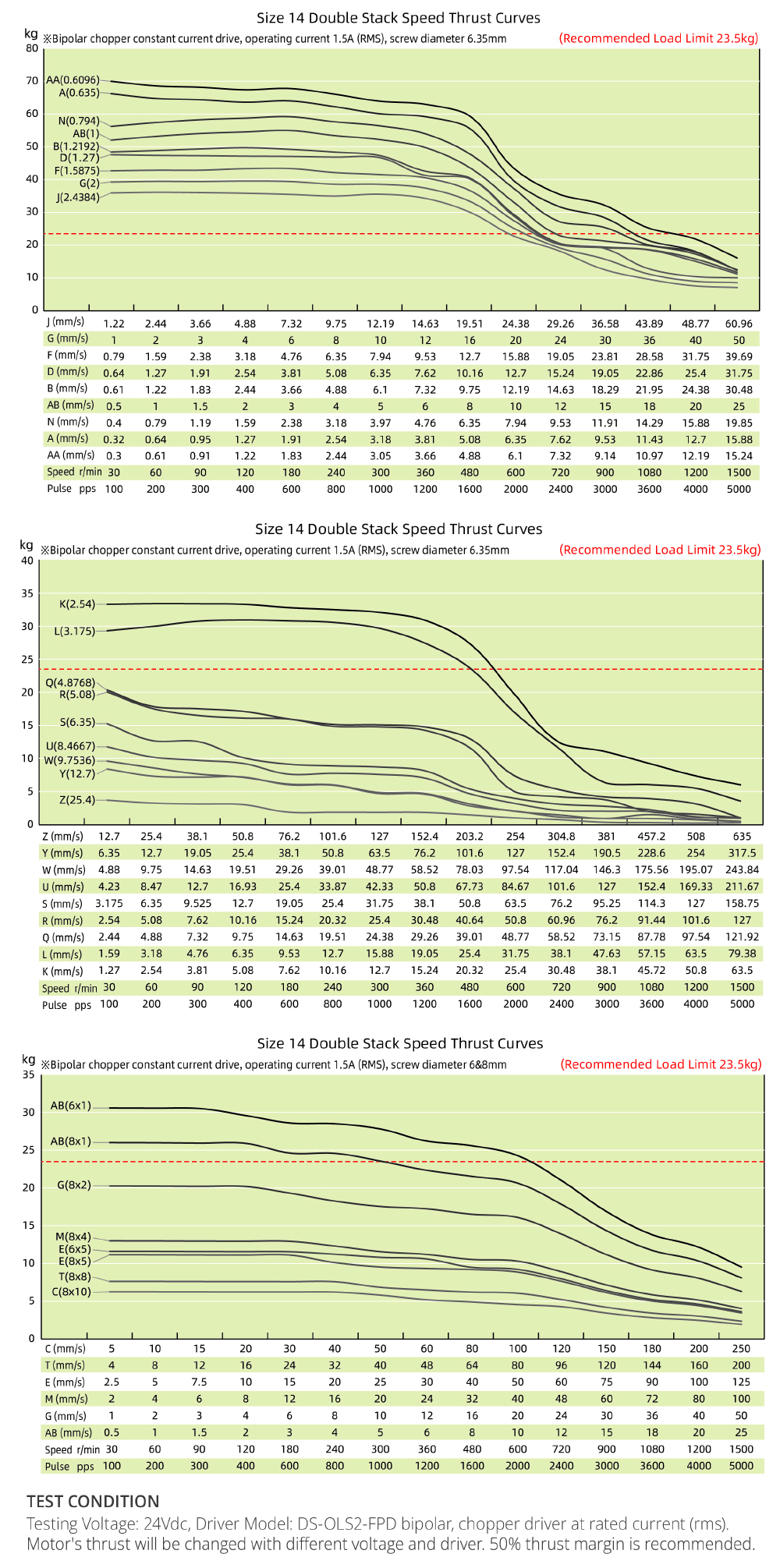

Available Lead Screw and Travel per Step

Screw Dia.	Lead	Lead Code	Travel Per Step @ 1.8°
6.35 mm	0.024 mm	AA	0.003048 mm
6.35 mm	0.0394 mm	AB	0.005 mm
6.35 mm	0.025 mm	A	0.003175 mm
6.35 mm	0.048 mm	B	0.006096 mm
6.35 mm	0.05 mm	D	0.00635 mm
6.35 mm	0.0625 mm	F	0.0079 mm
6.35 mm	0.096 mm	J	0.0122 mm
6.35 mm	0.1 mm	K	0.0127 mm
6.35 mm	0.125 mm	L	0.0159 mm
6.35 mm	0.192 mm	Q	0.024 mm
6.35 mm	0.2 mm	R	0.0254 mm
6.35 mm	0.25 mm	S	0.0318 mm
6.35 mm	0.333 mm	U	0.0423 mm
6.35 mm	0.384 mm	W	0.0488 mm
6.35 mm	0.5 mm	Y	0.0635 mm
6.35 mm	1 mm	Z	0.127 mm
8 mm	0.1575 mm	M	0.02 mm
8 mm	0.315 mm	T	0.04 mm
8 mm	0.0787 mm	G	0.01 mm
8 mm	0.3937 mm	C	0.05 mm

Mechanical Specifications

Mechanical Specifications	Unit	DLM – Size 35mm
Max dynamic force for 100km stage travel distance C100B(dyn)	N	785
Max static force in movement direction Co(stat)	N	1247.5
Max torque around roll axis (M_roll)	Nm	5.85
Max torque around pitch axis (M_pitch)	Nm	3.2
Max torque around yaw axis (M_yaw)	Nm	3.2

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
