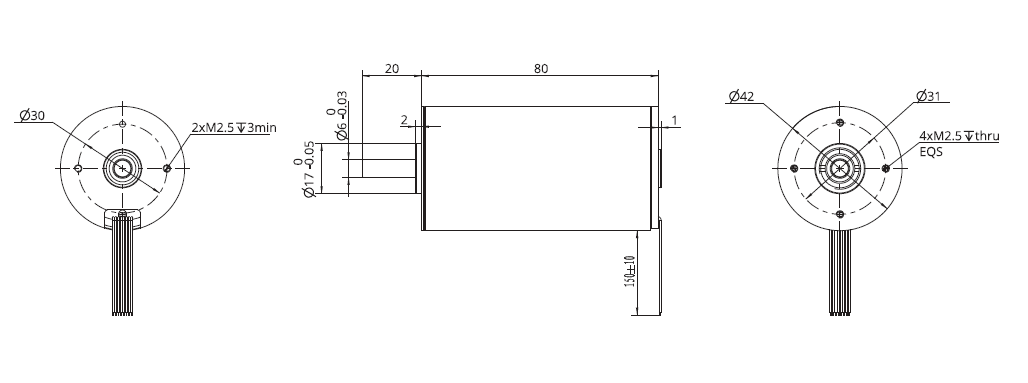

Motor Characteristics
| Parameter | Unit | 42ZWWC80-18 | 42ZWWC80-24 | 42ZWWC80-36 | 42ZWWC80-48 | 42ZWWC80-24-2 |
|---|---|---|---|---|---|---|
| Pole Pairs | 1 | 1 | 1 | 1 | 2 | |
| Insulation resistance | MΩ/500VDC | 100 | 100 | 100 | 100 | 100 |
| Weight | gr | 500 | 500 | 500 | 500 | 500 |
| Rated voltage | V | 18 | 24 | 36 | 48 | 24 |
| Nominal power | W | 66 | 80 | 100 | 160 | 102 |
| Nominal torque | mNm | 90 | 90 | 90 | 120 | 180 |
| Nominal speed | RPM | 6678 | 8346 | 11619 | 12200 | 5400 |
| Nominal current | A | 4.89 | 4.17 | 3.47 | 4.17 | 5.70 |
| No-load speed | RPM | 9000 | 11000 | 13000 | 13800 | 6800 |
| No-load current | A | 0.6 | 0.69 | 0.6 | 0.58 | 0.42 |
| Motor Efficiency | % | 75 | 80 | 80 | 80 | 87.9 |
| Phase resistance | Ω | 0.4 | 0.45 | 0.6 | 0.95 | 0.22 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 | ＜50 | ＜50 | ＜50 | ＜50 |
| Case – Environmental thermal resistance (no load) | K/W | 0.43 | 0.50 | 0.67 | 0.26 | 0.41 |
| Motor Thermal Time Constant(No Load) | S | 900 | 1620 | 2040 | 2040 | 1340 |
| Ambient temperature | °C | 23.1 | 23.5 | 23 | 23 | 22.6 |
| Maximum Winding Temperature(No Load) | °C | 51.5 | 63.7 | 90 | 90 | 72.1 |
| Torque Constant | mN·m/A | 18.41 | 21.60 | 25.92 | 28.80 | 31.58 |
| Back-EMF Constant /Peak Value | V/Krpm | 2.73 | 3.20 | 3.84 | 4.26 | 4.68 |
| Back-EMF constant (RMS) | V/Krpm | 1.93 | 2.26 | 2.71 | 3.02 | 3.31 |
| Peak Torque | mNm | 828.41 | 1152.00 | 1555.20 | 1455.16 | 3444.98 |
| Peak current | A | 45 | 53 | 60 | 51 | 109 |
| Phase inductance | mH | 0.085 | 0.14 | 0.14 | 0.23 | 0.035 |
| Rotor inertia | g·cm² | 96.3 | 96.3 | 96.3 | 96.3 | 96.3 |
| Mechanical Time Constant | ms | 11.37 | 9.29 | 8.60 | 11.03 | 2.12 |
| End Cover | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | Deep Groove Ball Bearing | Deep Groove Ball Bearing | Deep Groove Ball Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFeB | Sinter NdFeB | Sinter NdFeB | Sinter NdFeB | Sinter NdFeB | |
| Shaft | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | |
| Outer diameter | mm | 42 | 42 | 42 | 42 | 42 |
| Motor length | mm | 80 | 80 | 80 | 80 | 80 |
| Winding Connection | Star shape | Star shape | Star shape | Star shape | Star shape | |
| Insulation Class | B | B | B | B | B | |
| Duty Type | S2 | S2 | S2 | S2 | S1 | |
| Feedback Method | Hall Sensors | Hall Sensors | Hall Sensors | Hall Sensors | Hall Sensors | |
| Commutation Angle | 120° | 120° | 120° | 120° | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s | 500VAC/1KHz/1mA/1s | 500VAC/1KHz/1mA/1s | 500VAC/1KHz/1mA/1s | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 42ZWWC80-18 |
|---|---|---|
| Pole Pairs | 1 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | gr | 500 |
| Rated voltage | V | 18 |
| Nominal power | W | 66 |
| Nominal torque | mNm | 90 |
| Nominal speed | RPM | 6678 |
| Nominal current | A | 4.89 |
| No-load speed | RPM | 9000 |
| No-load current | A | 0.6 |
| Motor Efficiency | % | 75 |
| Phase resistance | Ω | 0.4 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Case – Environmental thermal resistance (no load) | K/W | 0.43 |
| Motor Thermal Time Constant(No Load) | S | 900 |
| Ambient temperature | °C | 23.1 |
| Maximum Winding Temperature(No Load) | °C | 51.5 |
| Torque Constant | mN·m/A | 18.41 |
| Back-EMF Constant /Peak Value | V/Krpm | 2.73 |
| Back-EMF constant (RMS) | V/Krpm | 1.93 |
| Peak Torque | mNm | 828.41 |
| Peak current | A | 45 |
| Phase inductance | mH | 0.085 |
| Rotor inertia | g·cm² | 96.3 |
| Mechanical Time Constant | ms | 11.37 |
| End Cover | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFeB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 42 |
| Motor length | mm | 80 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S2 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 42ZWWC80-24 |
|---|---|---|
| Pole Pairs | 1 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | gr | 500 |
| Rated voltage | V | 24 |
| Nominal power | W | 80 |
| Nominal torque | mNm | 90 |
| Nominal speed | RPM | 8346 |
| Nominal current | A | 4.17 |
| No-load speed | RPM | 11000 |
| No-load current | A | 0.69 |
| Motor Efficiency | % | 80 |
| Phase resistance | Ω | 0.45 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Case – Environmental thermal resistance (no load) | K/W | 0.50 |
| Motor Thermal Time Constant(No Load) | S | 1620 |
| Ambient temperature | °C | 23.5 |
| Maximum Winding Temperature(No Load) | °C | 63.7 |
| Torque Constant | mN·m/A | 21.60 |
| Back-EMF Constant /Peak Value | V/Krpm | 3.20 |
| Back-EMF constant (RMS) | V/Krpm | 2.26 |
| Peak Torque | mNm | 1152.00 |
| Peak current | A | 53 |
| Phase inductance | mH | 0.14 |
| Rotor inertia | g·cm² | 96.3 |
| Mechanical Time Constant | ms | 9.29 |
| End Cover | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFeB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 42 |
| Motor length | mm | 80 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S2 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

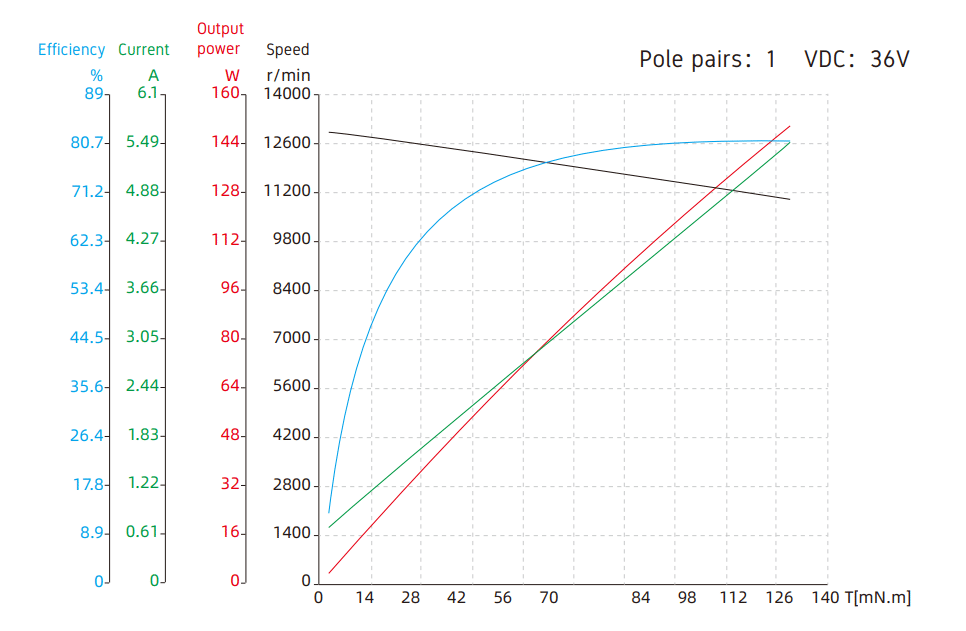

| Parameter | Unit | 42ZWWC80-36 |
|---|---|---|
| Pole Pairs | 1 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | gr | 500 |
| Rated voltage | V | 36 |
| Nominal power | W | 100 |
| Nominal torque | mNm | 90 |
| Nominal speed | RPM | 11619 |
| Nominal current | A | 3.47 |
| No-load speed | RPM | 13000 |
| No-load current | A | 0.6 |
| Motor Efficiency | % | 80 |
| Phase resistance | Ω | 0.6 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Case – Environmental thermal resistance (no load) | K/W | 0.67 |
| Motor Thermal Time Constant(No Load) | S | 2040 |
| Ambient temperature | °C | 23 |
| Maximum Winding Temperature(No Load) | °C | 90 |
| Torque Constant | mN·m/A | 25.92 |
| Back-EMF Constant /Peak Value | V/Krpm | 3.84 |
| Back-EMF constant (RMS) | V/Krpm | 2.71 |
| Peak Torque | mNm | 1555.20 |
| Peak current | A | 60 |
| Phase inductance | mH | 0.14 |
| Rotor inertia | g·cm² | 96.3 |
| Mechanical Time Constant | ms | 8.60 |
| End Cover | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFeB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 42 |
| Motor length | mm | 80 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S2 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 42ZWWC80-48 |
|---|---|---|
| Pole Pairs | 1 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | gr | 500 |
| Rated voltage | V | 48 |
| Nominal power | W | 160 |
| Nominal torque | mNm | 120 |
| Nominal speed | RPM | 12200 |
| Nominal current | A | 4.17 |
| No-load speed | RPM | 13800 |
| No-load current | A | 0.58 |
| Motor Efficiency | % | 80 |
| Phase resistance | Ω | 0.95 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Case – Environmental thermal resistance (no load) | K/W | 0.26 |
| Motor Thermal Time Constant(No Load) | S | 2040 |
| Ambient temperature | °C | 23 |
| Maximum Winding Temperature(No Load) | °C | 90 |
| Torque Constant | mN·m/A | 28.80 |
| Back-EMF Constant /Peak Value | V/Krpm | 4.26 |
| Back-EMF constant (RMS) | V/Krpm | 3.02 |
| Peak Torque | mNm | 1455.16 |
| Peak current | A | 51 |
| Phase inductance | mH | 0.23 |
| Rotor inertia | g·cm² | 96.3 |
| Mechanical Time Constant | ms | 11.03 |
| End Cover | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFeB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 42 |
| Motor length | mm | 80 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S2 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

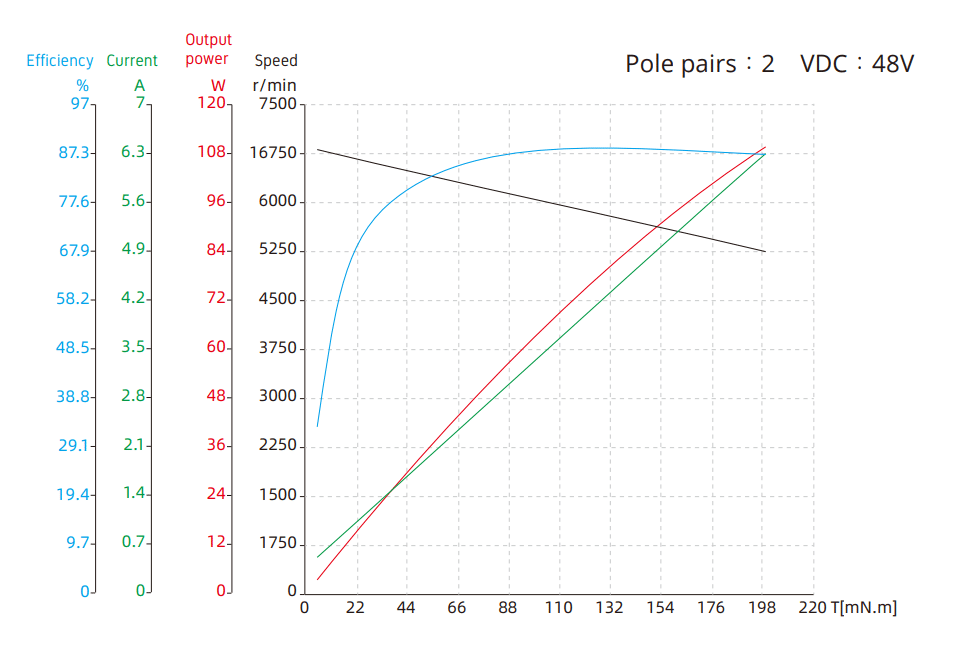

| Parameter | Unit | 42ZWWC80-24-2 |
|---|---|---|
| Pole Pairs | 2 | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | gr | 500 |
| Rated voltage | V | 24 |
| Nominal power | W | 102 |
| Nominal torque | mNm | 180 |
| Nominal speed | RPM | 5400 |
| Nominal current | A | 5.70 |
| No-load speed | RPM | 6800 |
| No-load current | A | 0.42 |
| Motor Efficiency | % | 87.9 |
| Phase resistance | Ω | 0.22 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Case – Environmental thermal resistance (no load) | K/W | 0.41 |
| Motor Thermal Time Constant(No Load) | S | 1340 |
| Ambient temperature | °C | 22.6 |
| Maximum Winding Temperature(No Load) | °C | 72.1 |
| Torque Constant | mN·m/A | 31.58 |
| Back-EMF Constant /Peak Value | V/Krpm | 4.68 |
| Back-EMF constant (RMS) | V/Krpm | 3.31 |
| Peak Torque | mNm | 3444.98 |
| Peak current | A | 109 |
| Phase inductance | mH | 0.035 |
| Rotor inertia | g·cm² | 96.3 |
| Mechanical Time Constant | ms | 2.12 |
| End Cover | Stainless Steel | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFeB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 42 |
| Motor length | mm | 80 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S1 | |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
