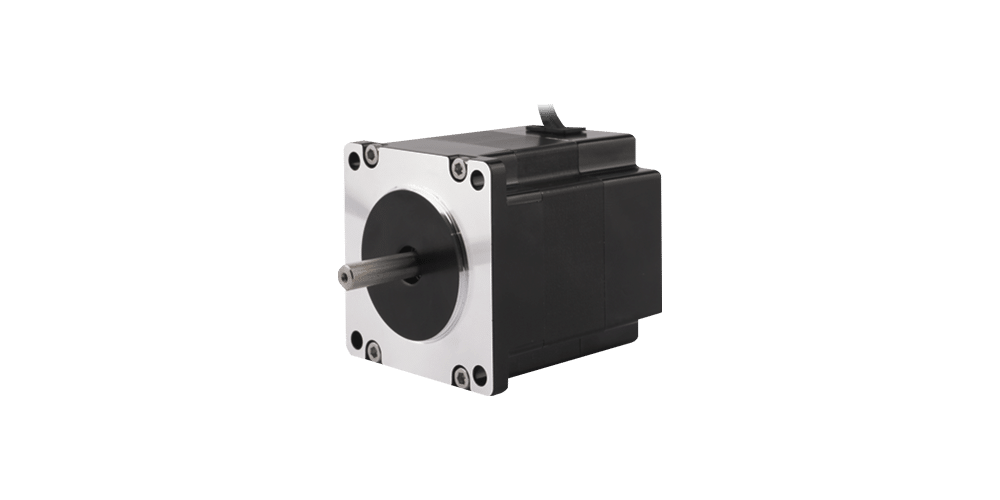

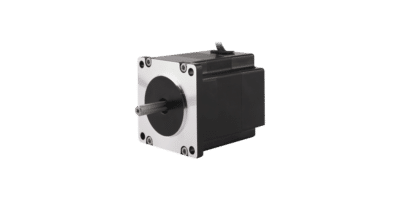

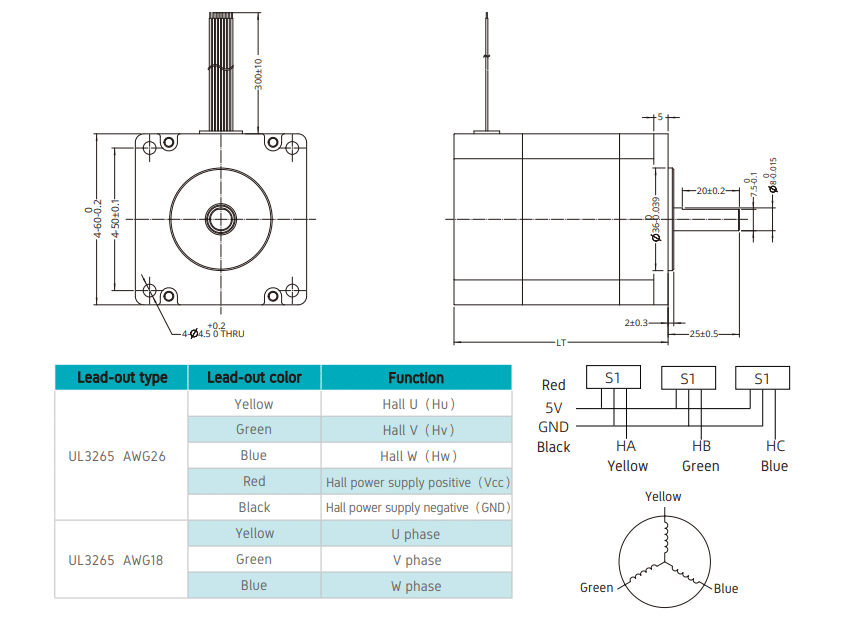

60 mm BLDC motor family for compact motion systems, offering 24 V operation with rated output from 47.1 to 144.5 W and rated torque from 0.15 to 0.46 Nm. All versions use star winding, 5 pole pairs, Hall sensor feedback as standard, with optional incremental encoder.
| Parameter | Unit | 60ZWS50X-1 | 60ZWS63X-1 | 60ZWS75X-1 |
|---|---|---|---|---|
| Motor length | mm | 50 | 63 | 75 |
| Feedback Method | Hall Sensors | Hall Sensors | Hall Sensors | |
| Commutation Angle | 120° | 120° | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s | 500VAC/1KHz/1mA/1s | 500VAC/1KHz/1mA/1s | |
| Insulation resistance | MΩ/500VDC | 100 | 100 | 100 |
| Weight | kg | 0.51 | 0.77 | 1 |
| Rated voltage | V | 24 | 24 | 24 |
| Nominal power | W | 47.1 | 97.4 | 144.5 |
| Nominal torque | Nm | 0.15 | 0.31 | 0.46 |
| Nominal speed | RPM | 3000 | 3000 | 3000 |
| Nominal current | A | 2.7 | 5.5 | 8.2 |
| Mounting Hole | mm | 50 +/- 0.2 | 50 +/- 0.2 | 50 +/- 0.2 |
| No-load speed | RPM | 3500 | 3500 | 3500 |
| No-load current | A | 0.29 | 0.58 | 0.87 |
| Motor Efficiency | % | 81.1 | 82.6 | 83 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 | ＜50 | ＜50 |
| Thermal resistance housing-ambient | K/W | 0.57 | 0.28 | 0.19 |
| Motor Thermal Time Constant | min | – | – | – |
| Ambient temperature | °C | 30 | 30 | 30 |
| Maximum Winding Temperature | °C | 87 | 87 | 87 |
| Torque Constant | mN·m/A | 0.056 | 0.056 | 0.056 |
| Back-EMF constant (RMS) | V/Krpm | 5.87 | 5.87 | 5.87 |
| Shaft Length | mm | 25 +/- 0.5 | 25 +/- 0.5 | 25 +/- 0.5 |
| Peak Torque | Nm | 0.45 | 0.93 | 1.38 |
| Peak current | A | 8.1 | 16.5 | 24.6 |
| Rotor inertia | kg·cm² | 0.22 | 0.44 | 0.66 |
| End Cover | Aluminium Die Casting | Aluminium Die Casting | Aluminium Die Casting | |
| Bearing | Deep Groove Ball Bearing | Deep Groove Ball Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFedB | Sinter NdFedB | Sinter NdFedB | |
| Shaft | Carbon Steel | Carbon Steel | Carbon Steel | |
| Outer diameter | mm | 60 | 60 | 60 |
| Pole Pairs | 5 | 5 | 5 | |
| Phase resistance | Ω | 0.886 | 0.334 | 0.233 |
| Phase inductance | mH | 0.682 | 0.305 | 0.183 |
| Winding Connection | Star shape | Star shape | Star shape | |
| Insulation Class | B | B | B | |
| Duty Type | S1 | S1 | S1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

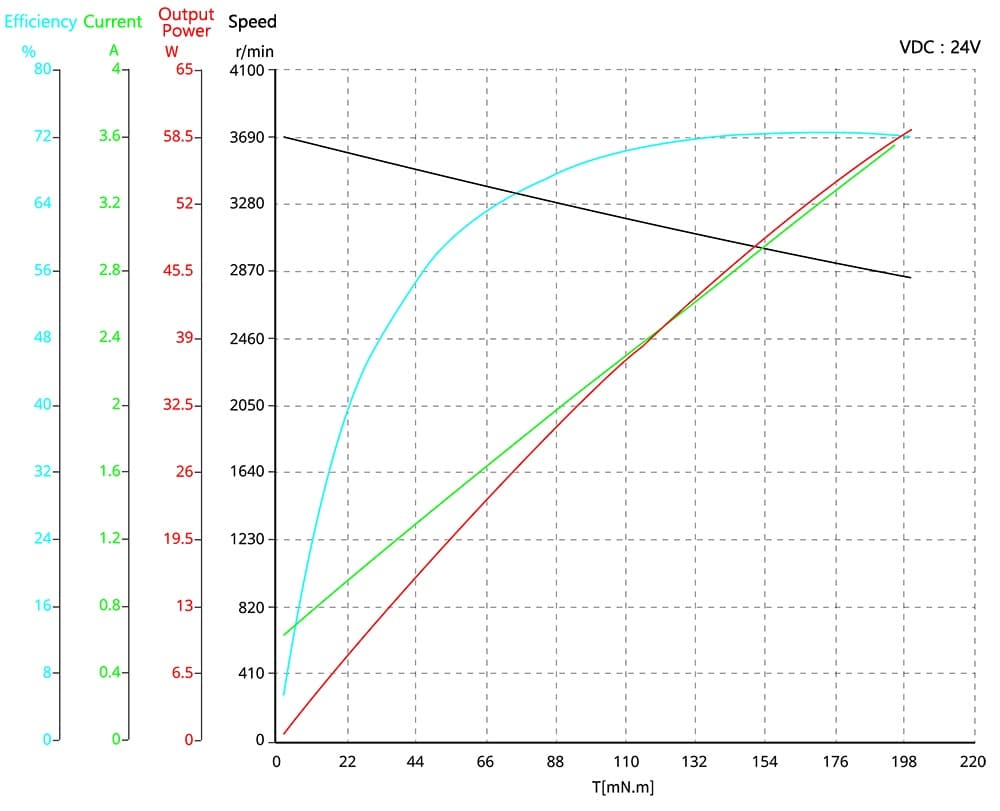

| Parameter | Unit | 60ZWS50X-1 |
|---|---|---|
| Motor length | mm | 50 |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | kg | 0.51 |
| Rated voltage | V | 24 |
| Nominal power | W | 47.1 |
| Nominal torque | Nm | 0.15 |
| Nominal speed | RPM | 3000 |
| Nominal current | A | 2.7 |
| Mounting Hole | mm | 50 +/- 0.2 |
| No-load speed | RPM | 3500 |
| No-load current | A | 0.29 |
| Motor Efficiency | % | 81.1 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Thermal resistance housing-ambient | K/W | 0.57 |
| Motor Thermal Time Constant | min | – |
| Ambient temperature | °C | 30 |
| Maximum Winding Temperature | °C | 87 |
| Torque Constant | mN·m/A | 0.056 |
| Back-EMF constant (RMS) | V/Krpm | 5.87 |
| Shaft Length | mm | 25 +/- 0.5 |
| Peak Torque | Nm | 0.45 |
| Peak current | A | 8.1 |
| Rotor inertia | kg·cm² | 0.22 |
| End Cover | Aluminium Die Casting | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFedB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 60 |
| Pole Pairs | 5 | |
| Phase resistance | Ω | 0.886 |
| Phase inductance | mH | 0.682 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

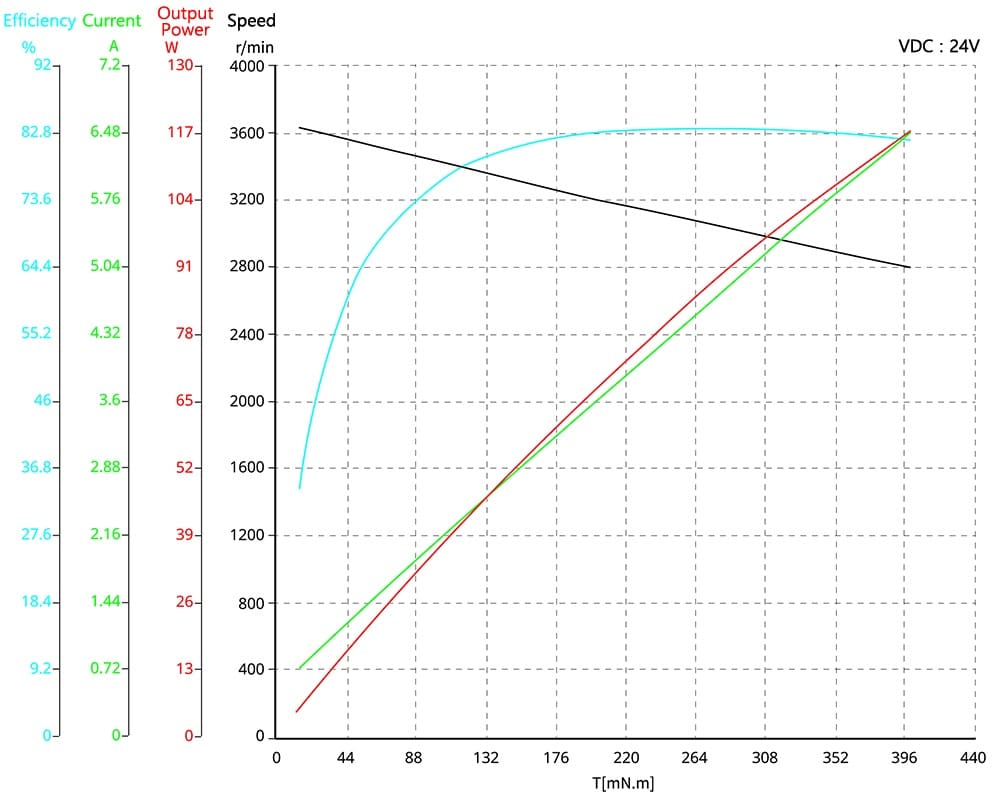

| Parameter | Unit | 60ZWS63X-1 |
|---|---|---|
| Motor length | mm | 63 |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | kg | 0.77 |
| Rated voltage | V | 24 |
| Nominal power | W | 97.4 |
| Nominal torque | Nm | 0.31 |
| Nominal speed | RPM | 3000 |
| Nominal current | A | 5.5 |
| Mounting Hole | mm | 50 +/- 0.2 |
| No-load speed | RPM | 3500 |
| No-load current | A | 0.58 |
| Motor Efficiency | % | 82.6 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Thermal resistance housing-ambient | K/W | 0.28 |
| Motor Thermal Time Constant | min | – |
| Ambient temperature | °C | 30 |
| Maximum Winding Temperature | °C | 87 |
| Torque Constant | mN·m/A | 0.056 |
| Back-EMF constant (RMS) | V/Krpm | 5.87 |
| Shaft Length | mm | 25 +/- 0.5 |
| Peak Torque | Nm | 0.93 |
| Peak current | A | 16.5 |
| Rotor inertia | kg·cm² | 0.44 |
| End Cover | Aluminium Die Casting | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFedB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 60 |
| Pole Pairs | 5 | |
| Phase resistance | Ω | 0.334 |
| Phase inductance | mH | 0.305 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

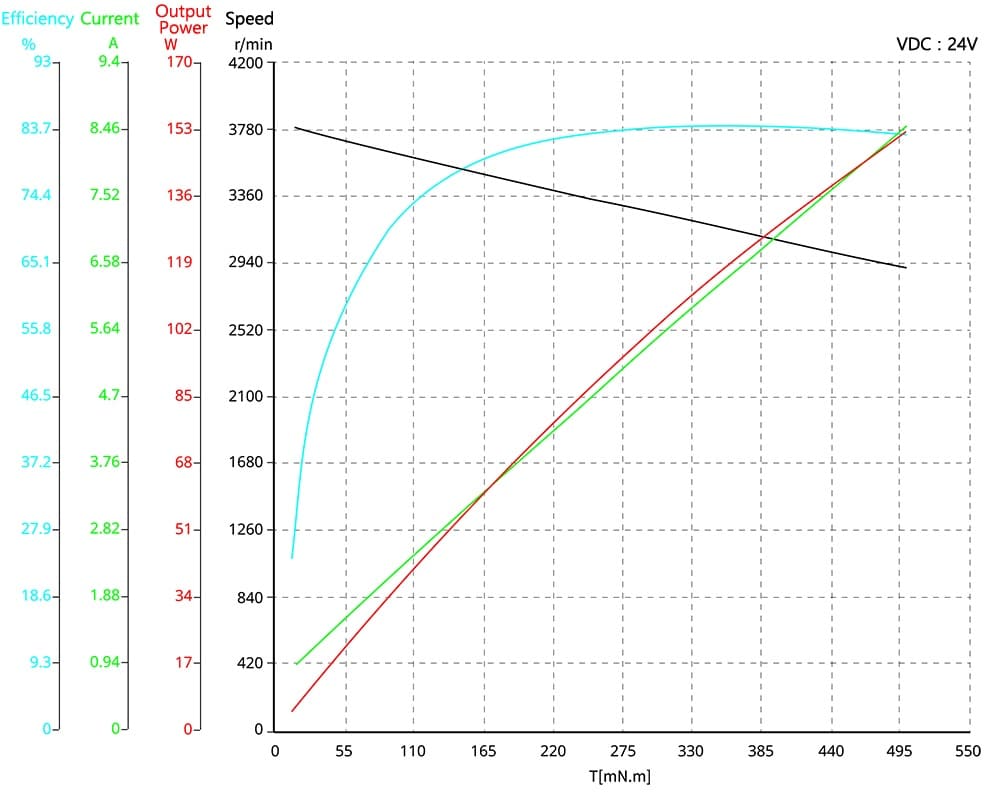

| Parameter | Unit | 60ZWS75X-1 |
|---|---|---|
| Motor length | mm | 75 |
| Feedback Method | Hall Sensors | |
| Commutation Angle | 120° | |
| Insulation strength (withstand voltage) | 500VAC/1KHz/1mA/1s | |
| Insulation resistance | MΩ/500VDC | 100 |
| Weight | kg | 1 |
| Rated voltage | V | 24 |
| Nominal power | W | 144.5 |
| Nominal torque | Nm | 0.46 |
| Nominal speed | RPM | 3000 |
| Nominal current | A | 8.2 |
| Mounting Hole | mm | 50 +/- 0.2 |
| No-load speed | RPM | 3500 |
| No-load current | A | 0.87 |
| Motor Efficiency | % | 83 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Thermal resistance housing-ambient | K/W | 0.19 |
| Motor Thermal Time Constant | min | – |
| Ambient temperature | °C | 30 |
| Maximum Winding Temperature | °C | 87 |
| Torque Constant | mN·m/A | 0.056 |
| Back-EMF constant (RMS) | V/Krpm | 5.87 |
| Shaft Length | mm | 25 +/- 0.5 |
| Peak Torque | Nm | 1.38 |
| Peak current | A | 24.6 |
| Rotor inertia | kg·cm² | 0.66 |
| End Cover | Aluminium Die Casting | |
| Bearing | Deep Groove Ball Bearing | |
| Magnet | Sinter NdFedB | |
| Shaft | Carbon Steel | |
| Outer diameter | mm | 60 |
| Pole Pairs | 5 | |
| Phase resistance | Ω | 0.233 |
| Phase inductance | mH | 0.183 |
| Winding Connection | Star shape | |
| Insulation Class | B | |
| Duty Type | S1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
