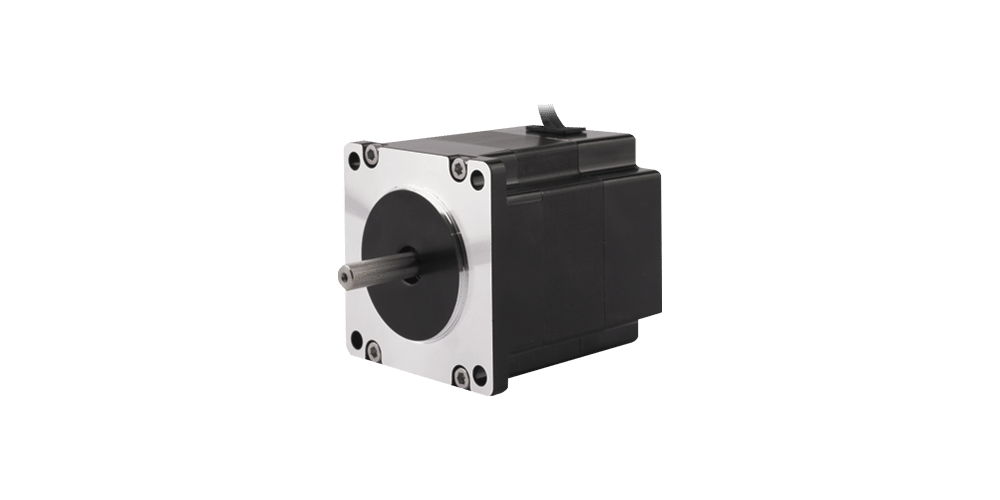

60mm Brushless DC Motor has Max. 0.46N·m rated torque and triple stack 60mm Motor can generate 144.5W capacity of rated power.
All 60mm motors have Star winding connection.
And 60mm Brushless DC Motors are 5 pole pairs motors Hall sensors feed back method as standard and also additional incremental encoder is available.
60mm Brushless DC Motor has Max. 0.46N·m rated torque and triple stack 60mm Motor can generate 144.5W capacity of rated power.
All 60mm motors have Star winding connection.
And 60mm Brushless DC Motors are 5 pole pairs motors Hall sensors feed back method as standard and also additional incremental encoder is available.

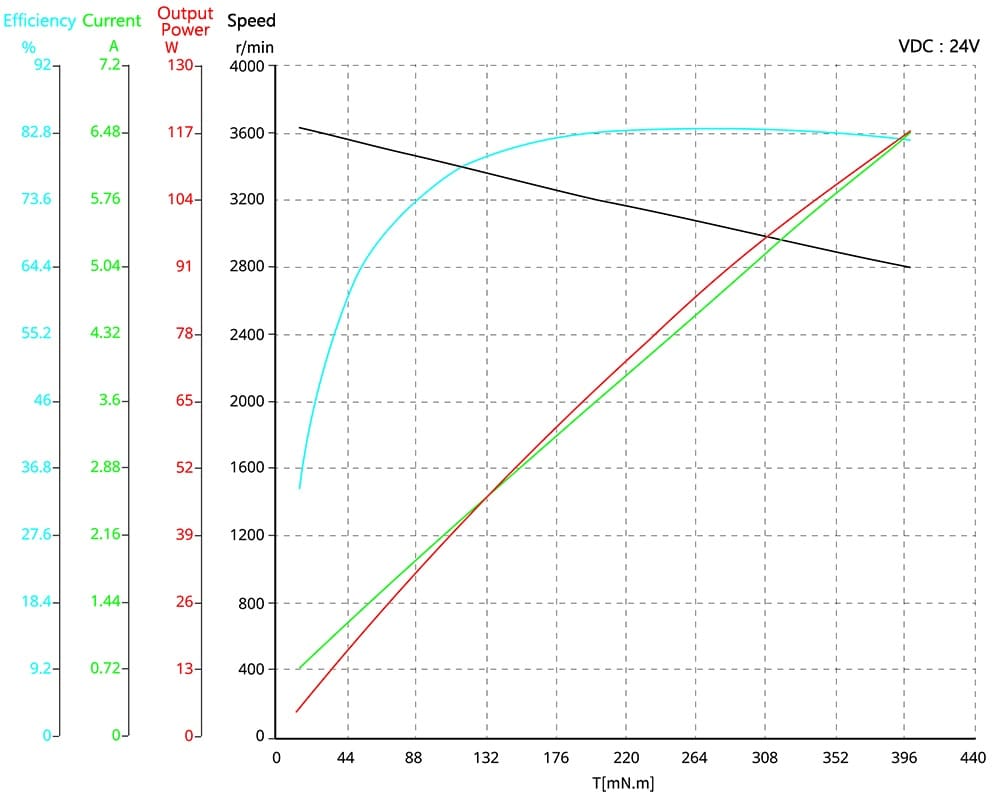

| Specification | 60ZWS63X-1 |
|---|---|
| Motor Length | 63 mm |

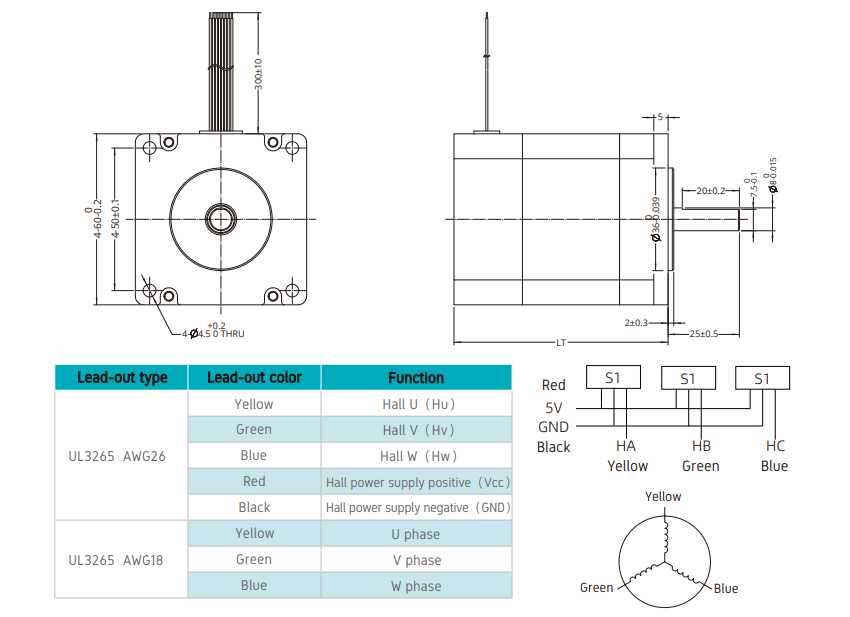

| Mounting Hole | 50(±0.2） mm |
| Shaft Length | 25（±0.5） mm |
| Pole Pairs | 5 |
| Phase Resistance | 0.334 Ω |
| Phase Inductance | 0.305 mH |
| Winding Connection | Star shape |
| Insulation Class | B |
| Duty Type | S1 |
| Feedback Method | Hall Sensors |
| Commutation Angle | 120° |
| Insulation Strength (Withstand Voltage) | 500VAC/1KHz/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Weight | 0.77 kg |
| Rated Voltage | 24 V |
| Rated Power | 97.4 W |
| Rated Torque | 0.31 Nm |
| Rated Speed | 3000 RPM |
| Rated Current | 5.5 A |
| No Load Speed | 3500 RPM |
| No Load Current | 0.58 A |
| Motor Efficiency | 82.6 % |
| Noise (Ambient noise 20db, test distance 1M) | ＜50 dB |
| Enclosure – Ambient Thermal Resistance | 0.28 K/W |
| Motor Thermal Time Constant | – |
| Ambient Temperature | 30 °C |
| Maximum Winding Temperature | 87 °C |
| Torque Constant | 0.056 mN·m/A |
| Back-EMF Constant /Effective Value | 5.87 V/Krpm |
| Peak Torque | 0.93 Nm |
| Peak Current | 16.5 A |
| Inertia Moment | 0.44 kg·cm² |
| End Cover | Aluminium Die Casting |
| Bearing | Deep Groove Ball Bearing |
| Magnet | Sinter NdFedB |
| Shaft | Carbon Steel |
