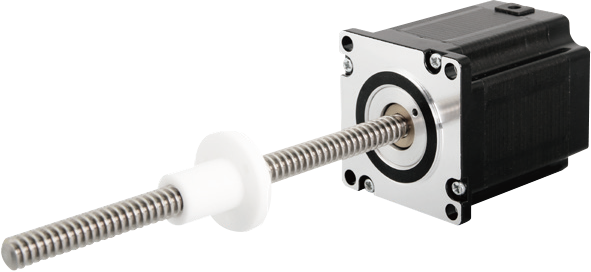

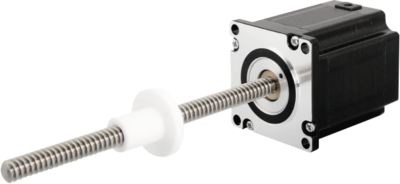

The SLSLA – Size 23 [57mm] Stepper Lead Screw Linear Actuator delivers high performance and extended duty cycles, supporting thrust loads up to 910N. Offered in External, Non-Captive, Captive (Electrical Cylinder), and Kaptive configurations, this family provides multiple screw lead and pitch options, Teflon coating availability, encoder feedback, and customizable screw ends, making it ideal for demanding precision linear motion applications.
| Parameter | Unit | 23-2110 | 23-2120 | 23-2130 | 23-2210 | 23-2225 | 23-2240 |
|---|---|---|---|---|---|---|---|
| Voltage | V | 6.4 | 3.5 | 2.4 | 11.5 | 5 | 2.8 |
| Current | A | 1 | 2 | 3 | 1 | 2.5 | 4 |
| Resistance | Ω | 6.4 | 1.75 | 0.8 | 11.5 | 2 | 0.7 |
| Inductance | mH | 16.4 | 4.1 | 1.7 | 32 | 5.2 | 2 |
| Weight | g | 585 | 585 | 585 | 880 | 880 | 880 |
| Lead Wire No. | 4 | 4 | 4 | 4 | 4 | 4 | |
| Motor Length | mm | 45 | 45 | 45 | 65 | 65 | 65 |
| Size | Nema | 23 | 23 | 23 | 23 | 23 | 23 |
| Flange size | mm | 57 | 57 | 57 | 57 | 57 | 57 |
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| A | 0.635 | 9.525 | 3.2 | 9.525 | yes | |||
| D | 1.27 | 9.525 | 6.4 | yes | ||||
| F | 1.5875 | 9.525 | 7.9 | yes | ||||
| H | 2.1167 | 9.525 | 10.6 | yes | ||||
| K | 2.54 | 9.525 | 12.7 | yes | yes | |||
| L | 3.175 | 9.525 | 15.9 | yes | ||||
| P | 4.2333 | 9.525 | 21.2 | yes | ||||
| R | 5.08 | 9.525 | 25.4 | yes | ||||
| S | 6.35 | 9.525 | 31.8 | yes | ||||
| V | 9.525 | 9.525 | 47.6 | yes | ||||
| W | 9.7536 | 9.525 | 48.8 | yes | ||||
| X | 10.16 | 9.525 | 50.8 | yes | ||||
| Y | 12.7 | 9.525 | 63.5 | yes | ||||
| Z | 25.4 | 9.525 | 127 | yes | ||||
| G | 2 | 10 | 10 | yes | yes | yes | yes | |
| G | 2 | 12 | 10 | yes | yes | yes | yes | |
| E | 5 | 12 | 25 | yes | yes | yes | yes | |
| C | 10 | 10 | 50 | yes | yes | yes | yes | |
| C | 10 | 12 | 50 | yes | yes | yes | yes | |
| I | 20 | 10 | 100 | yes | yes | yes | yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
