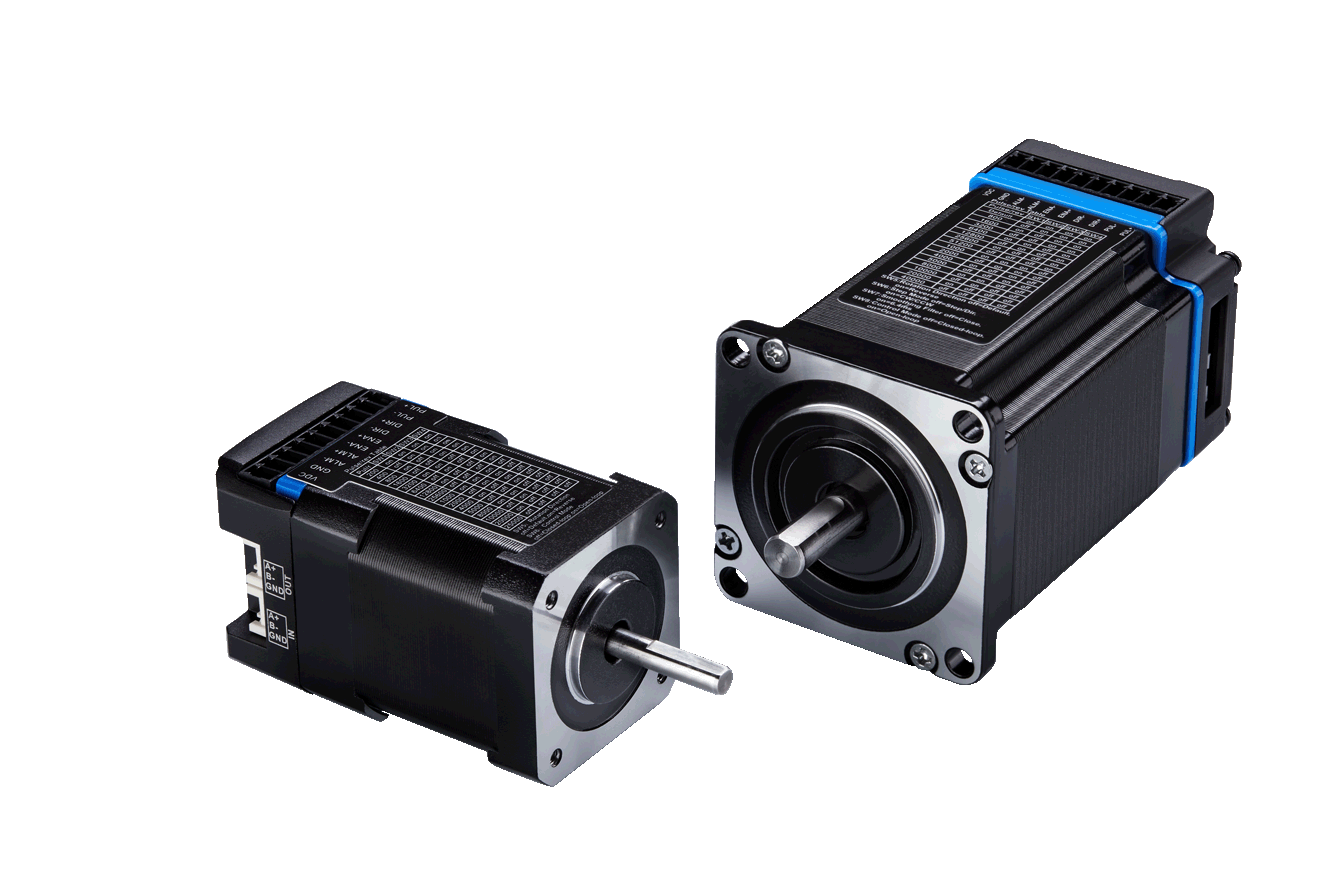

Motor charactistics
| Parameter | Unit | iEM-1703 | iEM-1706 | iEM-1708 | iEM-2313 | iEM-2323 | iEM-2321-L | iEM-2331-L | iEM-2430 | iEM-2435 |
|---|---|---|---|---|---|---|---|---|---|---|
| Frame size | Nema | 17 | 17 | 17 | 23 | 23 | 23 | 23 | 24 | 24 |
| Length | mm | 64 | 72 | 85 | 75 | 96 | 89 | 109 | 109 | 122 |
| Holding torque | Nm | 0.3 | 0.6 | 0.8 | 1.3 | 2.3 | 2.1 | 3.1 | 3 | 3.5 |
| Communication | Pul&Dir | Pul&Dir | Pul&Dir | Pul&Dir, CW&CCW | Pul&Dir, CW&CCW | Pul&Dir, CW&CCW | Pul&Dir, CW&CCW | Pul&Dir, CW&CCW | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24 | 24 | 24 | 24…36 | 24…36 | 24…36 | 24…36 | 24…36 | 24…36 |
| Input frequency | KHz, Max. | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Logic supply voltage | VDC | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| # of inputs | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| # of outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iEM-1703
iEM-1706
iEM-1708
iEM-2313
iEM-2323
iEM-2321-L
iEM-2331-L
iEM-2430
iEM-2435
PDF Downloads
iEM Series
manual
iEM-1706
drawings_2D
| Parameter | Unit | iEM-1703 |
|---|---|---|
| Frame size | Nema | 17 |
| Length | mm | 64 |
| Holding torque | Nm | 0.3 |
| Communication | Pul&Dir | |
| Operating voltage | VDC | 24 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

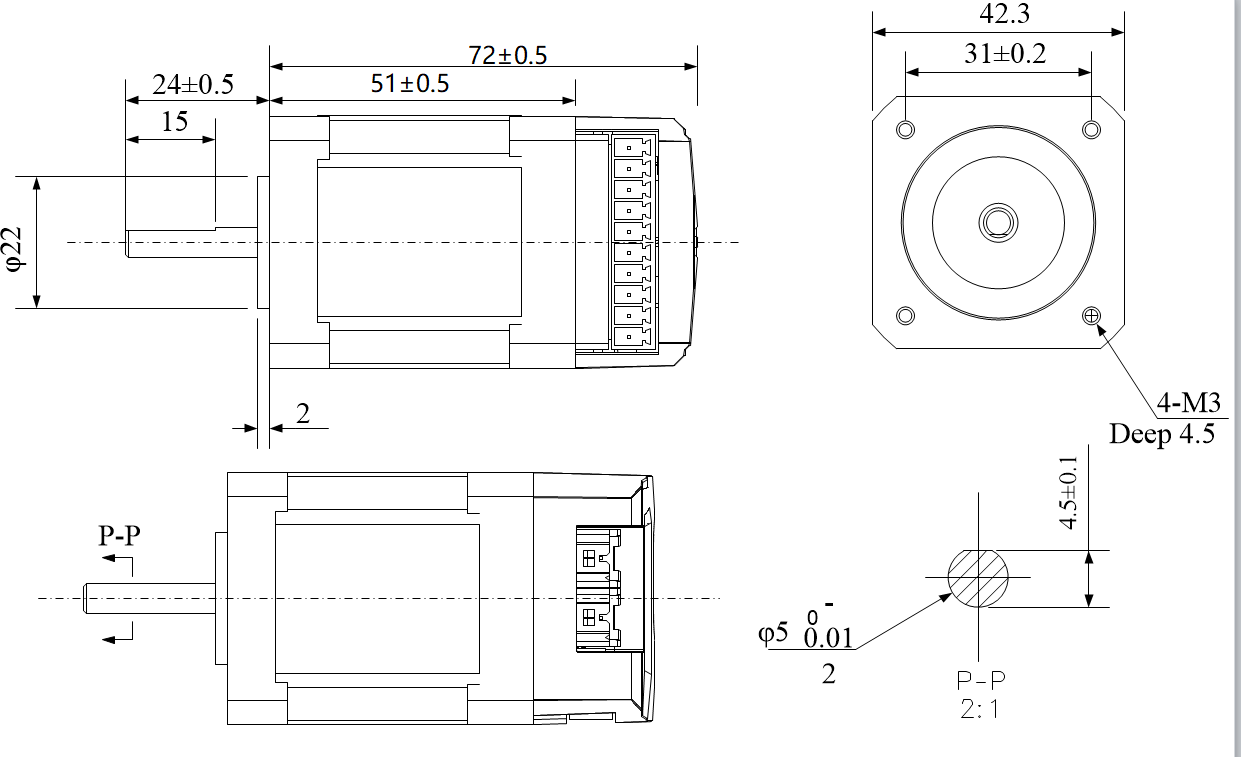

| Parameter | Unit | iEM-1706 |
|---|---|---|
| Frame size | Nema | 17 |
| Length | mm | 72 |
| Holding torque | Nm | 0.6 |
| Communication | Pul&Dir | |
| Operating voltage | VDC | 24 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
iEM-1706
drawings_2D
| Parameter | Unit | iEM-1708 |
|---|---|---|
| Frame size | Nema | 17 |
| Length | mm | 85 |
| Holding torque | Nm | 0.8 |
| Communication | Pul&Dir | |
| Operating voltage | VDC | 24 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

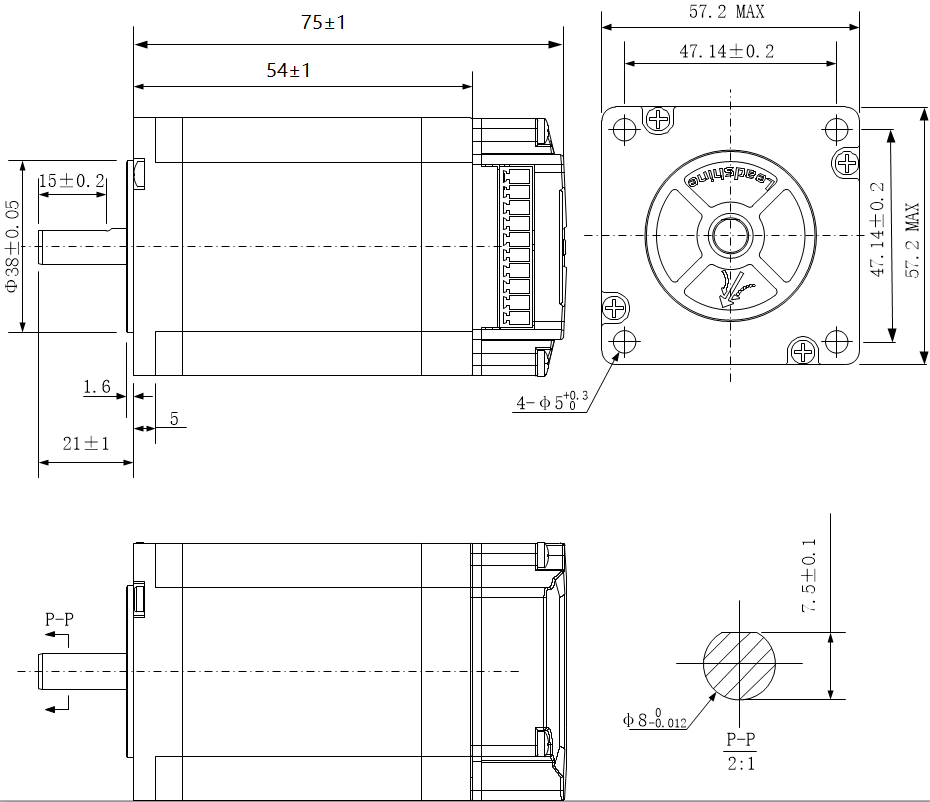

| Parameter | Unit | iEM-2313 |
|---|---|---|
| Frame size | Nema | 23 |
| Length | mm | 75 |
| Holding torque | Nm | 1.3 |
| Communication | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24…36 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | iEM-2323 |
|---|---|---|
| Frame size | Nema | 23 |
| Length | mm | 96 |
| Holding torque | Nm | 2.3 |
| Communication | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24…36 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | iEM-2321-L |
|---|---|---|
| Frame size | Nema | 23 |
| Length | mm | 89 |
| Holding torque | Nm | 2.1 |
| Communication | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24…36 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iEM-2321-L

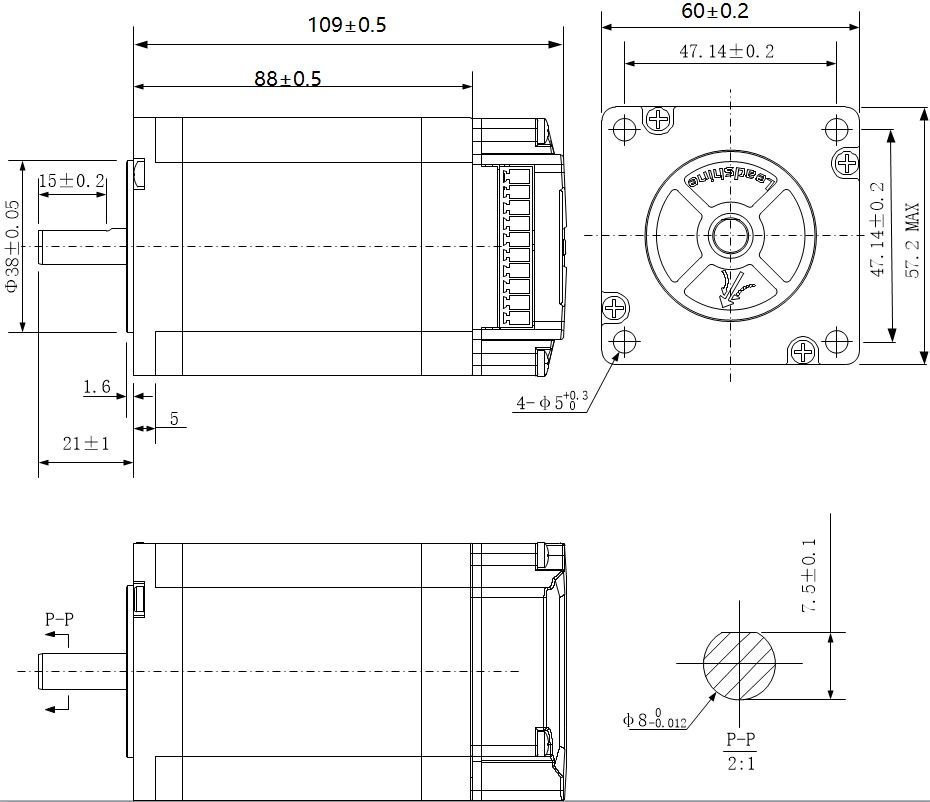

| Parameter | Unit | iEM-2331-L |
|---|---|---|
| Frame size | Nema | 23 |
| Length | mm | 109 |
| Holding torque | Nm | 3.1 |
| Communication | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24…36 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | iEM-2430 |
|---|---|---|
| Frame size | Nema | 24 |
| Length | mm | 109 |
| Holding torque | Nm | 3 |
| Communication | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24…36 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | iEM-2435 |
|---|---|---|
| Frame size | Nema | 24 |
| Length | mm | 122 |
| Holding torque | Nm | 3.5 |
| Communication | Pul&Dir, CW&CCW | |
| Operating voltage | VDC | 24…36 |
| Input frequency | KHz, Max. | 200 |
| Logic supply voltage | VDC | 5 |
| # of inputs | 3 | |
| # of outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
