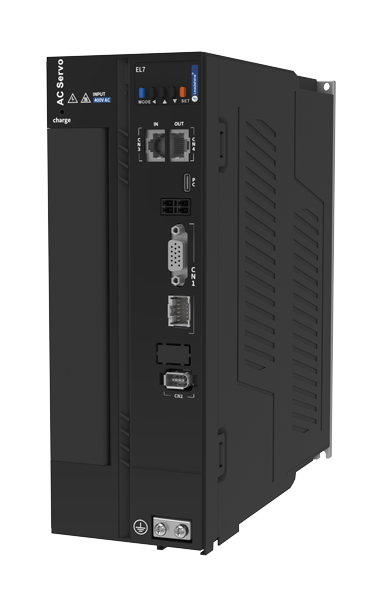

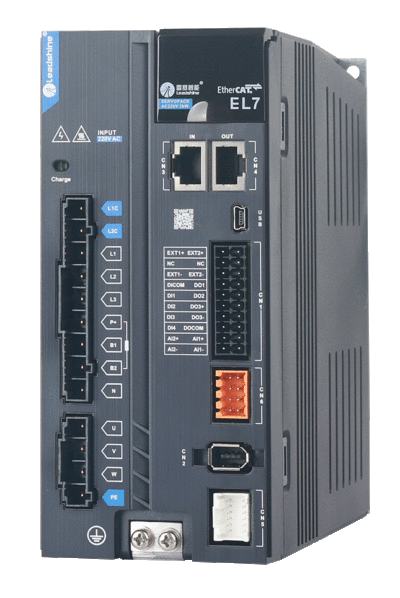

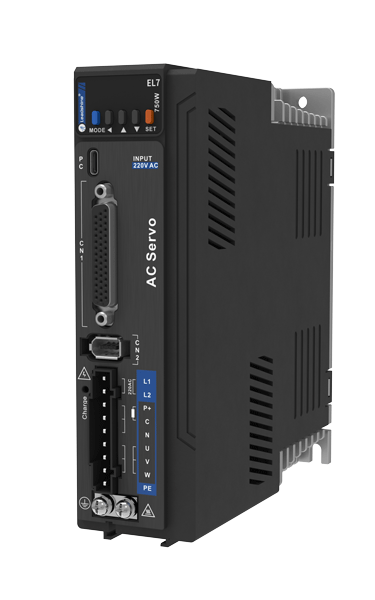

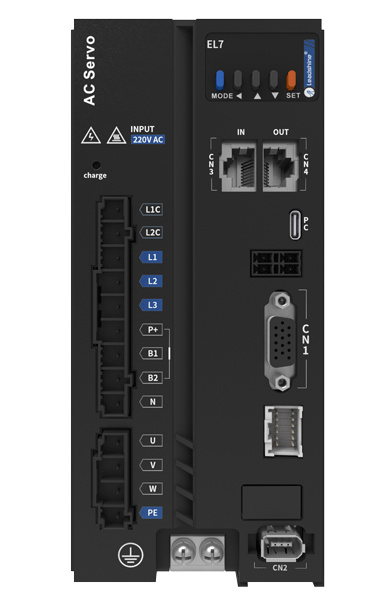

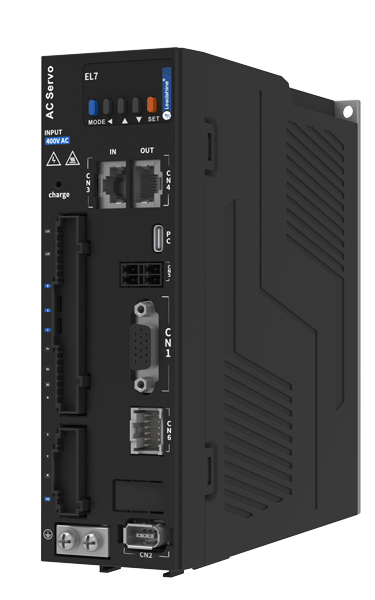

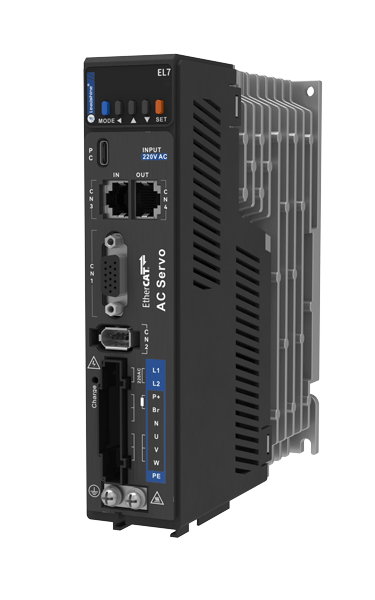

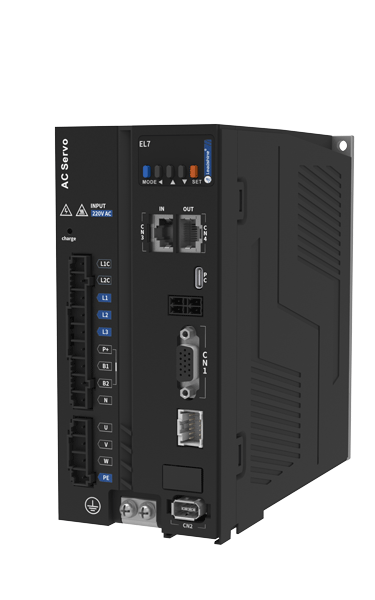

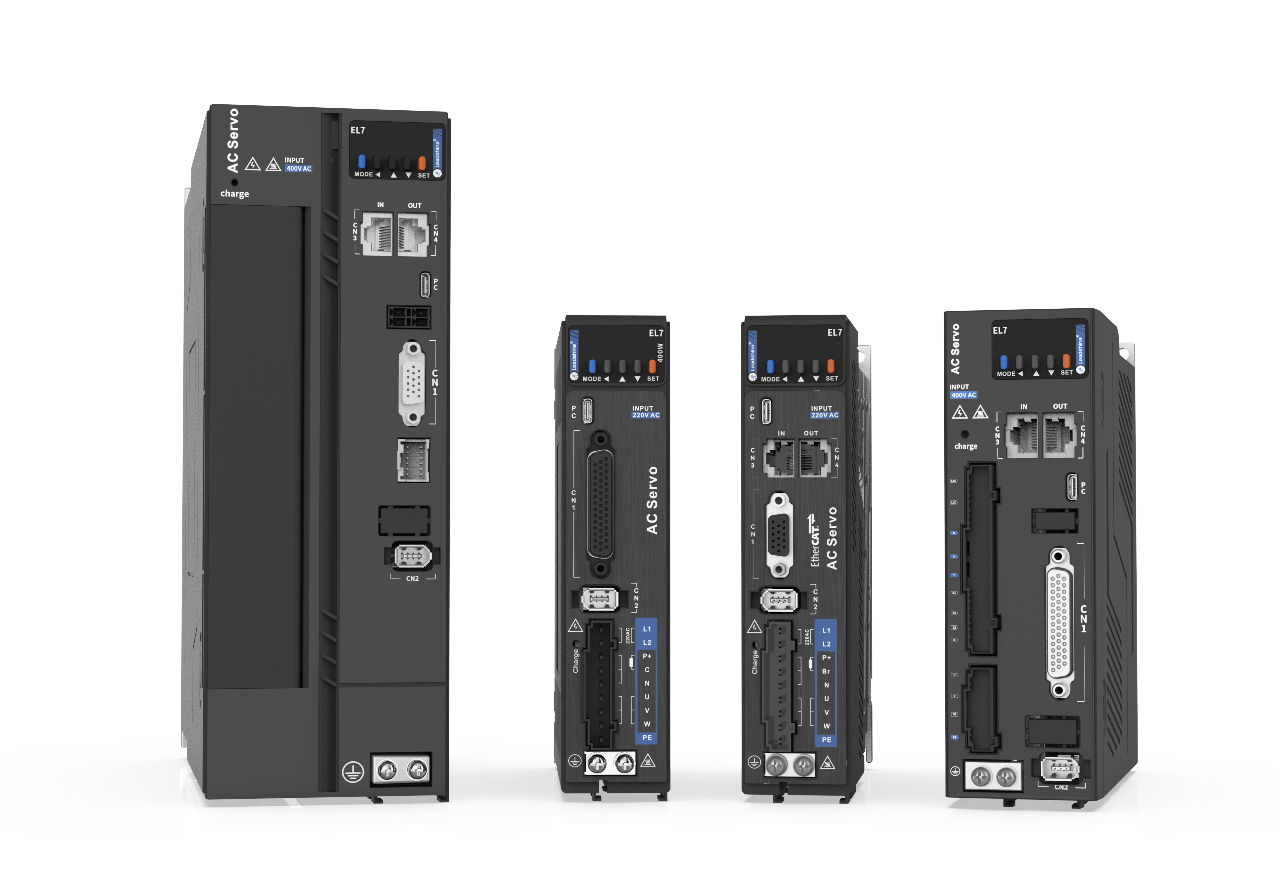

EL7 Series – EtherCAT
Latest midrange AC servo drives of 220VAC and 400VAC which support most control modes in various industrial applications.
Motor charactistics
| Parameter | Unit | EL7-D400Z | EL7-D750Z | EL7-D1000Z | EL7-RS400Z | EL7-RS750Z | EL7-RS1000Z | EL7-RS1500Z | EL7-RS2000Z | EL7-EC400S | EL7-EC750S | EL7-EC1000S | EL7-EC1500Z | EL7-EC2000Z | EL7-EC750T3 | EL7-EC1000T3 | EL7-EC1500T3 | EL7-EC2000T3 | EL7-EC3000T3 | EL7-EC4400T3 | EL7-EC5500T3 | EL7-EC7500T3 | EL7-EC400F | EL7-EC400N | EL7-EC750F | EL7-EC750N | EL7-EC750NT | EL7-EC1000N | EL7-EC1000F | EL7-EC1000NT | EL7-EC1500N | EL7-EC1500F | EL7-EC1500NT | EL7-EC2000F | EL7-EC2000N | EL7-EC2000NT | EL7-EC3000NT | EL7-EC4400NT | EL7-EC5500NT | EL7-EC7500NT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 220VAC 1ph | 220VAC 1ph | 220VAC 1ph | 220VAC 1ph | 400VAC 3ph | 220VAC 1ph | 220VAC 1ph | 400VAC 3ph | 220VAC 1ph/3ph | 220VAC 1ph/3ph | 400VAC 3ph | 220VAC 1ph/3ph | 220VAC 1ph/3ph | 400VAC 3ph | 400VAC 3ph | 400VAC 3ph | 400VAC 3ph | 400VAC 3ph | |
| Nominal power | W | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 400 | 400 | 750 | 750 | 750 | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 | 2000 | 2000 | 3000 | 4400 | 5500 | 7500 |
| Nominal current | Arms | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 3.5 | 3.5 | 5.5 | 5.5 | 2.5 | 7.5 | 7 | 3.5 | 9.5 | 9.5 | 5.4 | 12 | 12 | 8.4 | 11.9 | 16.5 | 20.8 | 25.7 |
| Peak current | Arms | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 10.5 | 10.5 | 16.5 | 15.5 | 8.6 | 21.5 | 18.7 | 10.6 | 28.5 | 28.5 | 14.9 | 36 | 36 | 24.8 | 33.2 | 38.9 | 51.6 | 63.6 |
| Command Source | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
| # of Digital Inputs | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 8 | 4 | 8 | 4 | 4 | 4 | 8 | 4 | 4 | 8 | 4 | 8 | 4 | 4 | 4 | 4 | 4 | 4 | |
| # of Digital Outputs | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| # of Analog Inputs | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| # of Analog Outputs | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC400F
EL7-EC400N
EL7-EC750F
EL7-EC750N
EL7-EC750NT
EL7-EC1000N
EL7-EC1000F
EL7-EC1000NT
EL7-EC1500N
EL7-EC1500F
EL7-EC1500NT
EL7-EC2000F
EL7-EC2000N
EL7-EC2000NT
EL7-EC3000NT
EL7-EC4400NT
EL7-EC5500NT
EL7-EC7500NT
PDF Downloads
EL7-D400Z
drawings_2D
manual
models_3D
software
EL7-D750Z
drawings_2D
manual
models_3D
software
EL7-D1000Z
drawings_2D
manual
models_3D
software
EL7-RS400Z
datasheet
drawings_2D
manual
models_3D
software
EL7-RS750Z
datasheet
drawings_2D
manual
models_3D
software
EL7-RS1000Z
datasheet
drawings_2D
manual
models_3D
software
EL7-RS1500Z
datasheet
drawings_2D
manual
models_3D
software
EL7-RS2000Z
datasheet
drawings_2D
manual
models_3D
software
EL7-EC400S
manual
EL7-EC750S
manual
EL7-EC1000S
manual
EL7-EC1500Z
manual
EL7-EC2000Z
manual
EL7-EC750T3
manual
EL7-EC1000T3
manual
EL7-EC1500T3
manual
EL7-EC2000T3
manual
EL7-EC3000T3
manual
EL7-EC4400T3
manual
EL7-EC5500T3
manual
EL7-EC7500T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-D400Z
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-D750Z
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-D1000Z
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-RS400Z
datasheet
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-RS750Z
datasheet
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-RS1000Z
datasheet
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-RS1500Z
datasheet
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-RS2000Z
datasheet
drawings_2D
manual
models_3D
software
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC400S
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC750S
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC1000S
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC1500Z
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC2000Z
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC750T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC1000T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC1500T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC2000T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC3000T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC4400T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC5500T3
manual
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
EL7-EC7500T3
manual

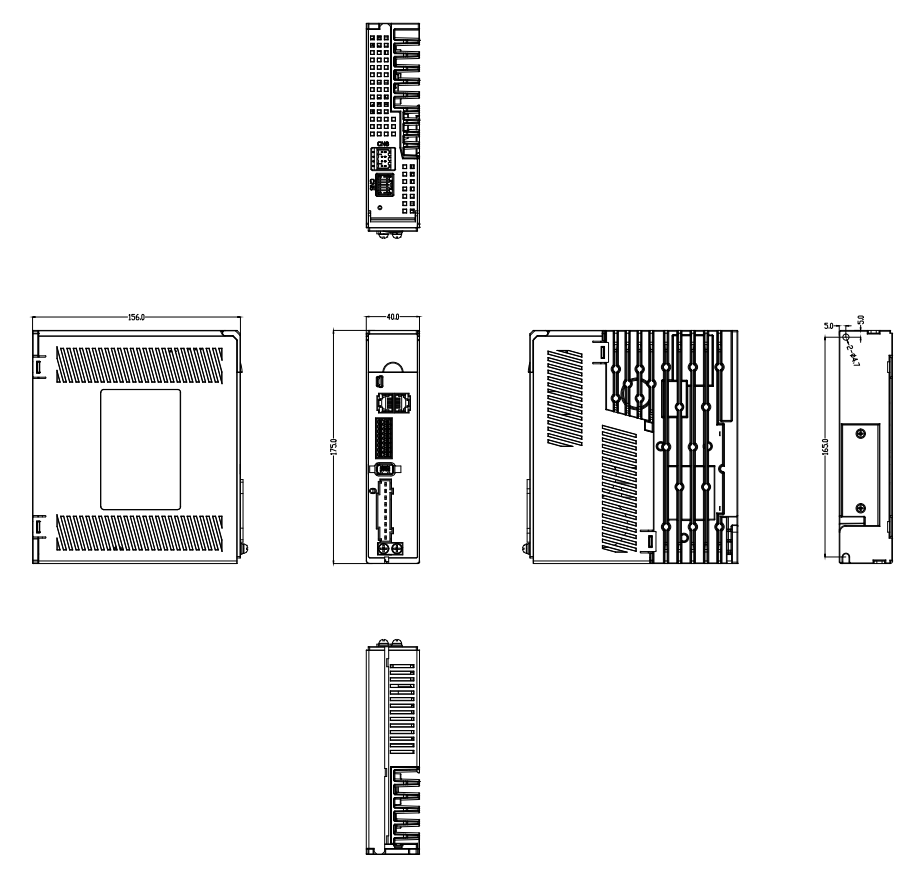

| Parameter | Unit | EL7-EC400F |
|---|---|---|
| Input voltage | 220VAC 1ph | |
| Nominal power | W | 400 |
| Nominal current | Arms | 3.5 |
| Peak current | Arms | 10.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

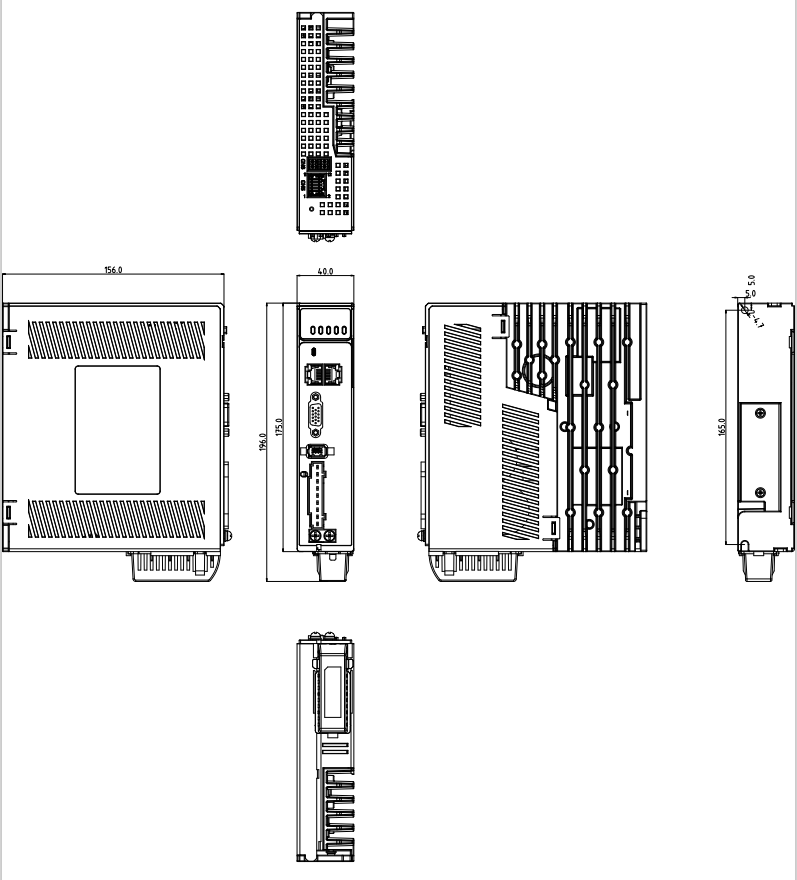

| Parameter | Unit | EL7-EC400N |
|---|---|---|
| Input voltage | 220VAC 1ph | |
| Nominal power | W | 400 |
| Nominal current | Arms | 3.5 |
| Peak current | Arms | 10.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

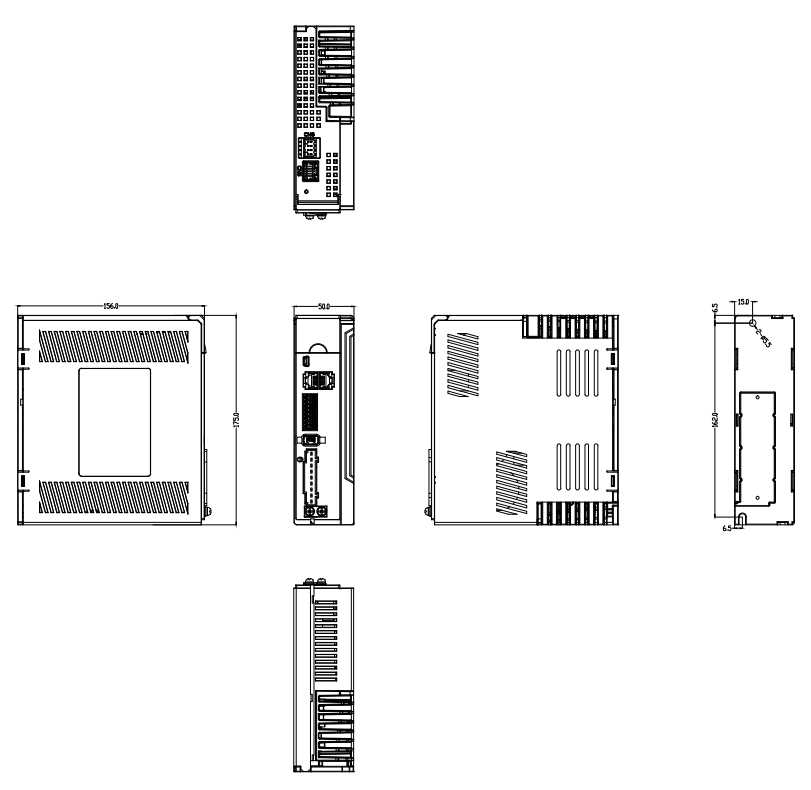

| Parameter | Unit | EL7-EC750F |
|---|---|---|
| Input voltage | 220VAC 1ph | |
| Nominal power | W | 750 |
| Nominal current | Arms | 5.5 |
| Peak current | Arms | 16.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | EL7-EC750N |
|---|---|---|
| Input voltage | 220VAC 1ph | |
| Nominal power | W | 750 |
| Nominal current | Arms | 5.5 |
| Peak current | Arms | 15.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | EL7-EC750NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 750 |
| Nominal current | Arms | 2.5 |
| Peak current | Arms | 8.6 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC750NT
PDF Downloads

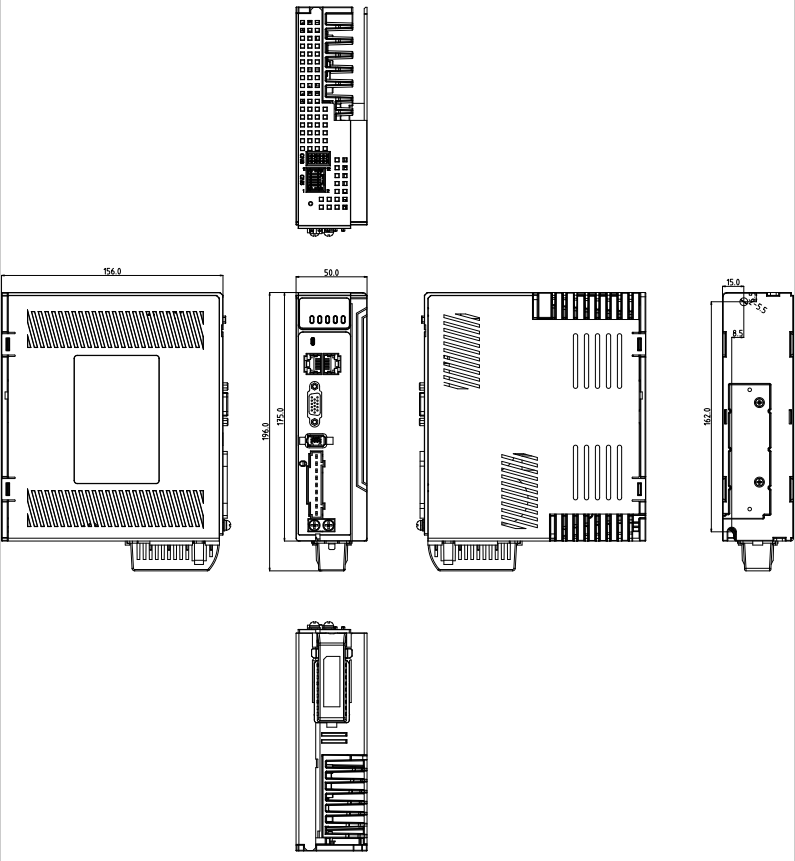

| Parameter | Unit | EL7-EC1000N |
|---|---|---|
| Input voltage | 220VAC 1ph | |
| Nominal power | W | 1000 |
| Nominal current | Arms | 7.5 |
| Peak current | Arms | 21.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC1000N
PDF Downloads

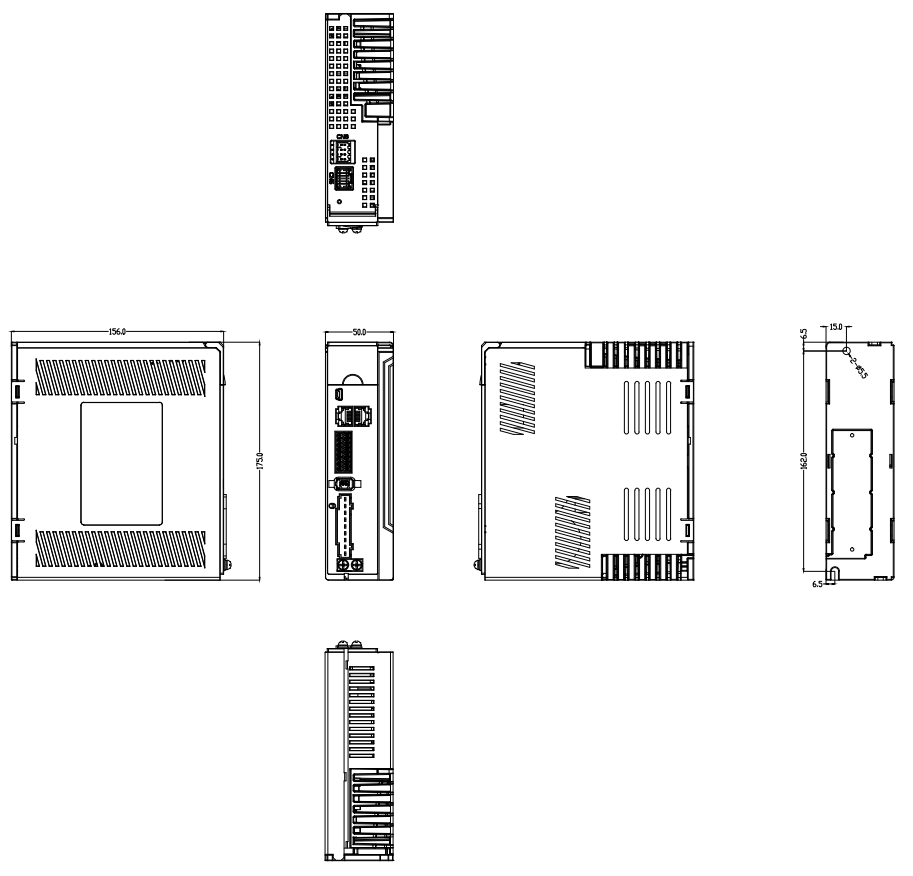

| Parameter | Unit | EL7-EC1000F |
|---|---|---|
| Input voltage | 220VAC 1ph | |
| Nominal power | W | 1000 |
| Nominal current | Arms | 7 |
| Peak current | Arms | 18.7 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC1000F
PDF Downloads
| Parameter | Unit | EL7-EC1000NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 1000 |
| Nominal current | Arms | 3.5 |
| Peak current | Arms | 10.6 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC1000NT
PDF Downloads

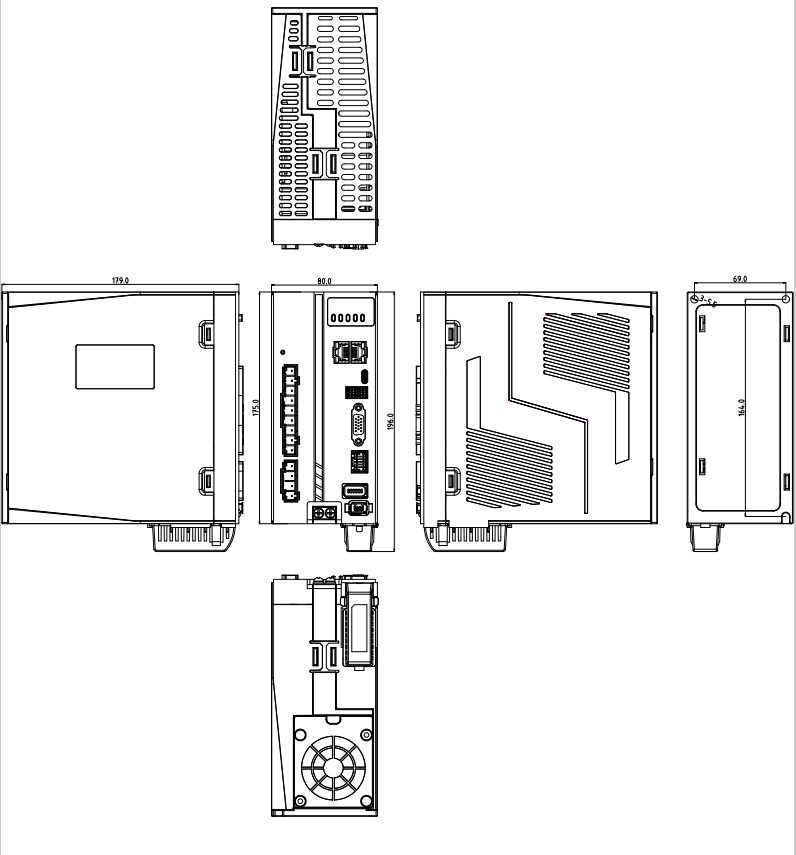

| Parameter | Unit | EL7-EC1500N |
|---|---|---|
| Input voltage | 220VAC 1ph/3ph | |
| Nominal power | W | 1500 |
| Nominal current | Arms | 9.5 |
| Peak current | Arms | 28.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC1500N
PDF Downloads

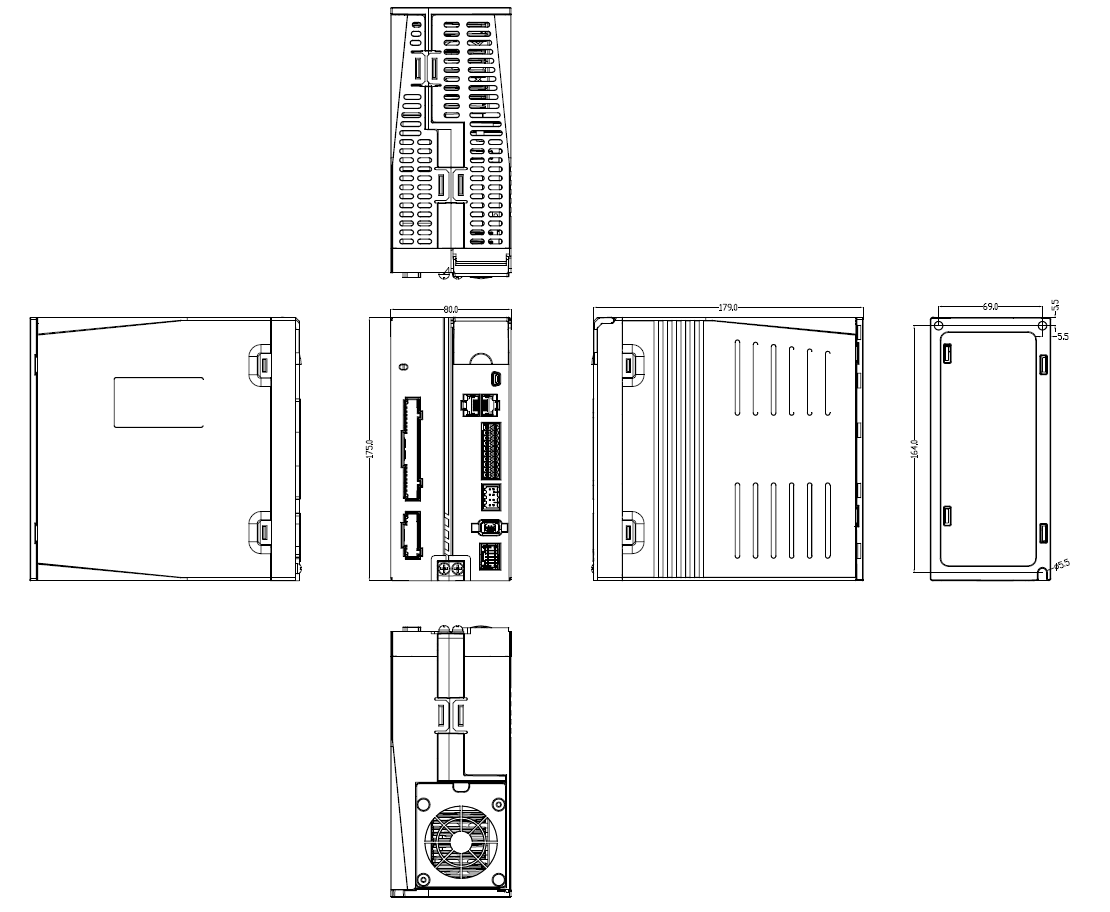

| Parameter | Unit | EL7-EC1500F |
|---|---|---|
| Input voltage | 220VAC 1ph/3ph | |
| Nominal power | W | 1500 |
| Nominal current | Arms | 9.5 |
| Peak current | Arms | 28.5 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC1500F
PDF Downloads

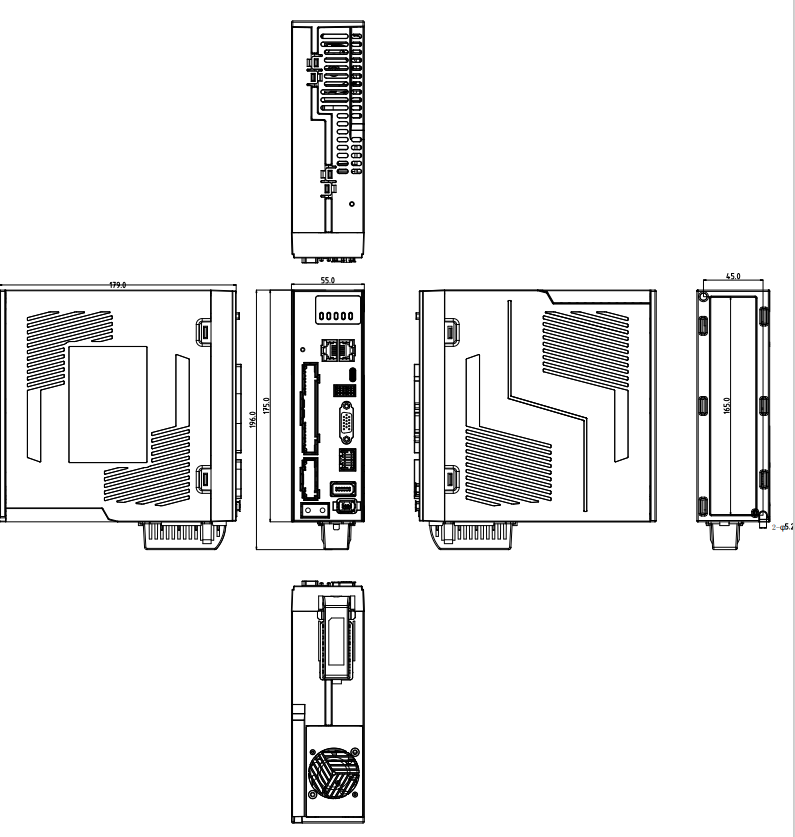

| Parameter | Unit | EL7-EC1500NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 1500 |
| Nominal current | Arms | 5.4 |
| Peak current | Arms | 14.9 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC1500NT
PDF Downloads

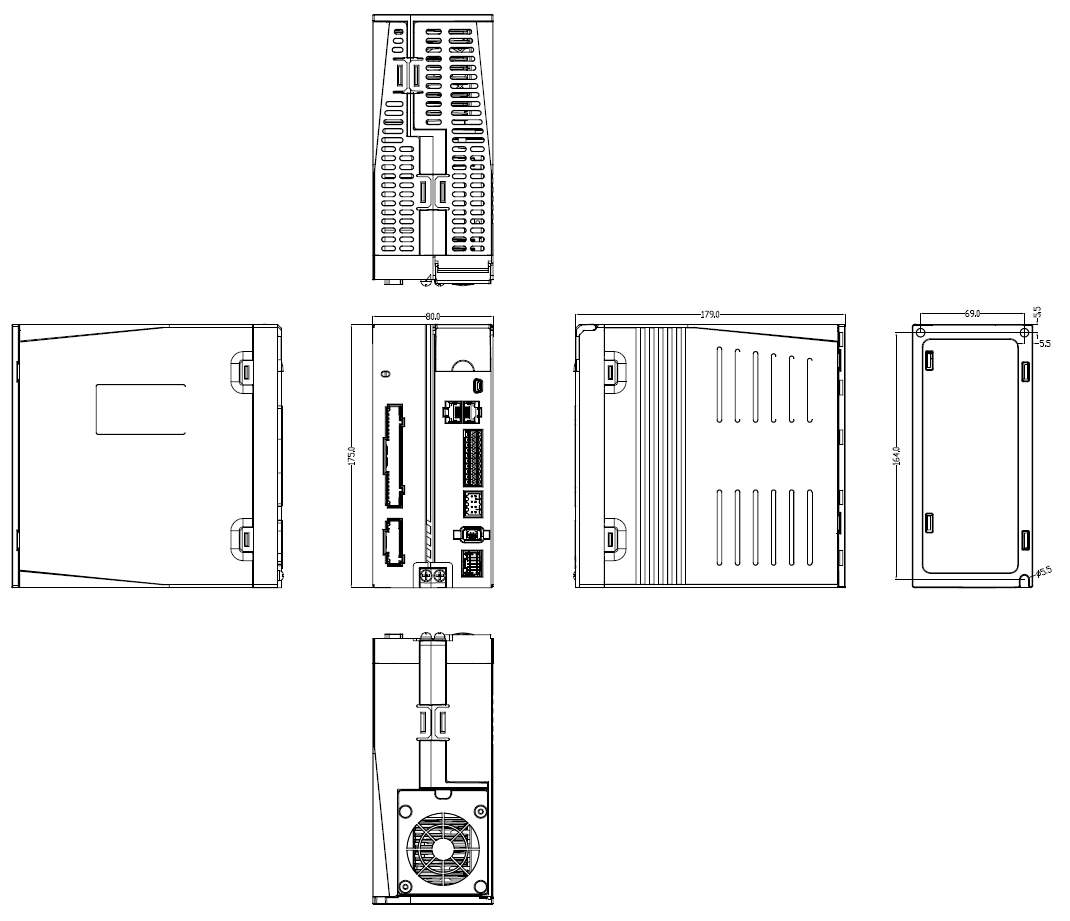

| Parameter | Unit | EL7-EC2000F |
|---|---|---|
| Input voltage | 220VAC 1ph/3ph | |
| Nominal power | W | 2000 |
| Nominal current | Arms | 12 |
| Peak current | Arms | 36 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC2000F
PDF Downloads
| Parameter | Unit | EL7-EC2000N |
|---|---|---|
| Input voltage | 220VAC 1ph/3ph | |
| Nominal power | W | 2000 |
| Nominal current | Arms | 12 |
| Peak current | Arms | 36 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC2000N
PDF Downloads
| Parameter | Unit | EL7-EC2000NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 2000 |
| Nominal current | Arms | 8.4 |
| Peak current | Arms | 24.8 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC2000NT
PDF Downloads

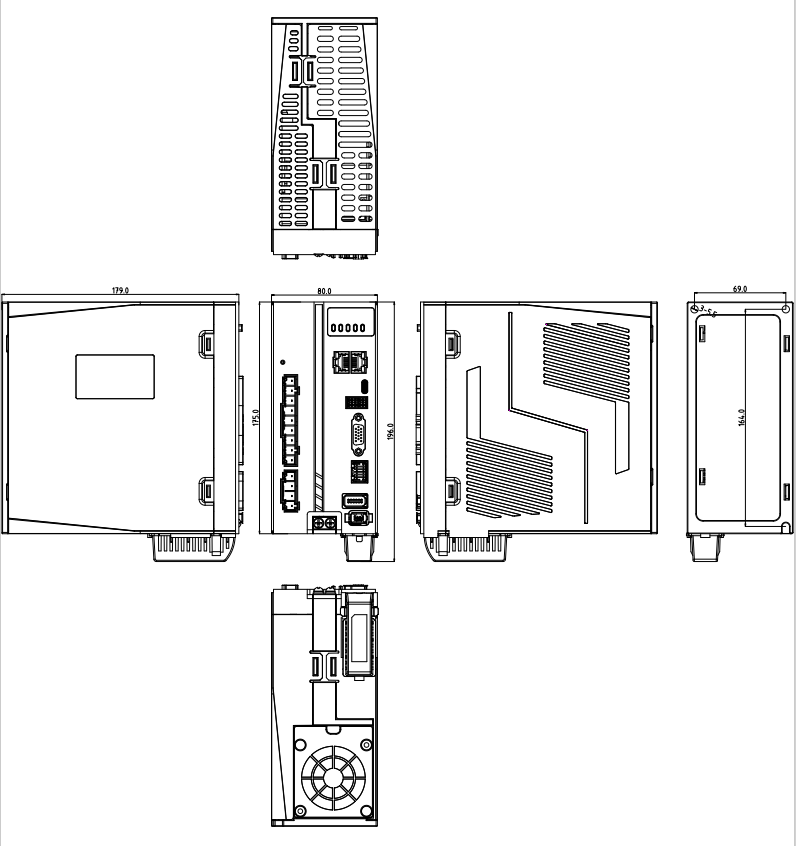

| Parameter | Unit | EL7-EC3000NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 3000 |
| Nominal current | Arms | 11.9 |
| Peak current | Arms | 33.2 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC3000NT
PDF Downloads

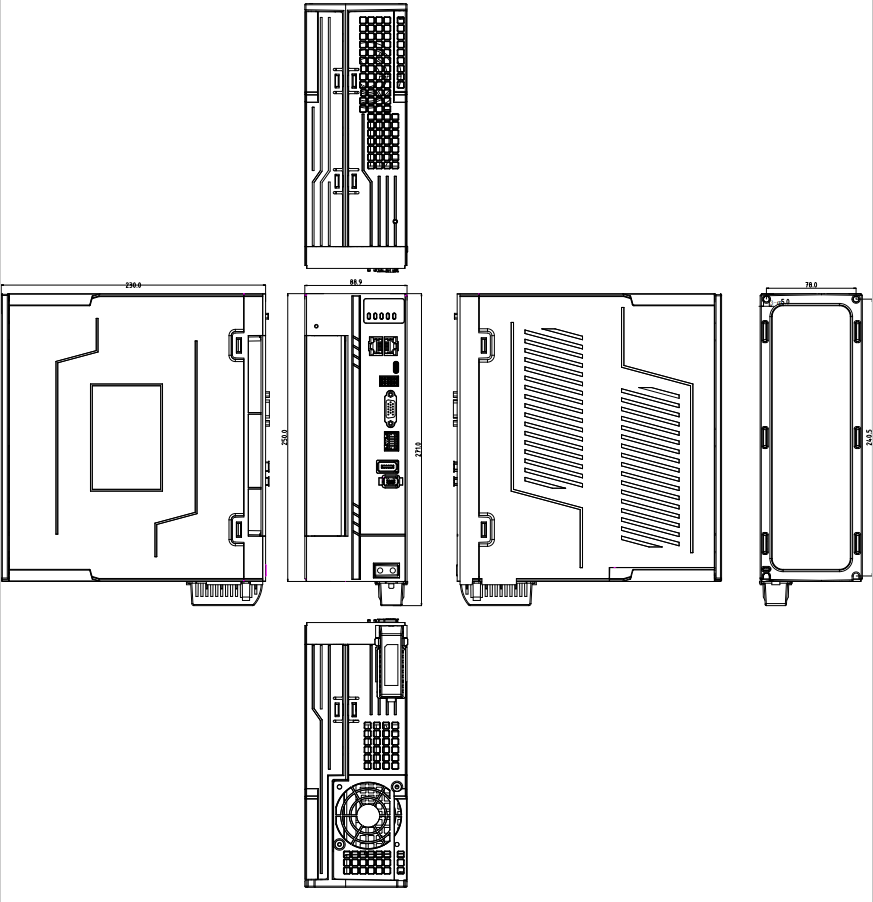

| Parameter | Unit | EL7-EC4400NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 4400 |
| Nominal current | Arms | 16.5 |
| Peak current | Arms | 38.9 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC4400NT
PDF Downloads
| Parameter | Unit | EL7-EC5500NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 5500 |
| Nominal current | Arms | 20.8 |
| Peak current | Arms | 51.6 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EL7-EC5500NT
PDF Downloads
| Parameter | Unit | EL7-EC7500NT |
|---|---|---|
| Input voltage | 400VAC 3ph | |
| Nominal power | W | 7500 |
| Nominal current | Arms | 25.7 |
| Peak current | Arms | 63.6 |
| Command Source | EtherCAT | |
| # of Digital Inputs | 4 | |
| # of Digital Outputs | 3 | |
| # of Analog Inputs | – | |
| # of Analog Outputs | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
