Characteristics
| Parameter | Unit | C1215F13-0086 | C1215F13-0141 | C1215F13-0260 |
|---|---|---|---|---|
| Voltage | V | 3.5 | 1.5 | 3.0 |
| Terminal resistance | Ohm | 1.7 | 1.2 | 10.8 |
| No-load speed | rpm | 25000 | 11500 | 9600 |
| No-load current | mA | 100 | 110 | 40 |
| Stall torque | mNm | 1.80 | 1.10 | 0.70 |
| Stall current | mA | 1506 | 1030 | 274 |
| Load torque | mNm | 0.294 | 0.294 | 0.294 |
| Load speed | rpm | 20910 | 8500 | 5500 |
| Load current | mA | 330 | 350 | 140 |
| Max. output power | W | 1.18 | 0.33 | 0.18 |
| Max. efficiency | % | 56.5 | 48.8 | 44.8 |
| Back-EMF constant | mV/rpm | 0.13 | 0.12 | 0.27 |
| Torque constant | mNm/A | 1.28 | 1.20 | 2.99 |
| Speed/torque gradient | rpm/mNm | 13912 | 10455 | 13714 |
| Varistor | Yes/No | Yes | Yes | Yes |
| Weight | g | 5.4 | 5.4 | 5.1 |
| Operating temperature range | °C | -20~+80 | -20~+80 | -20~+80 |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

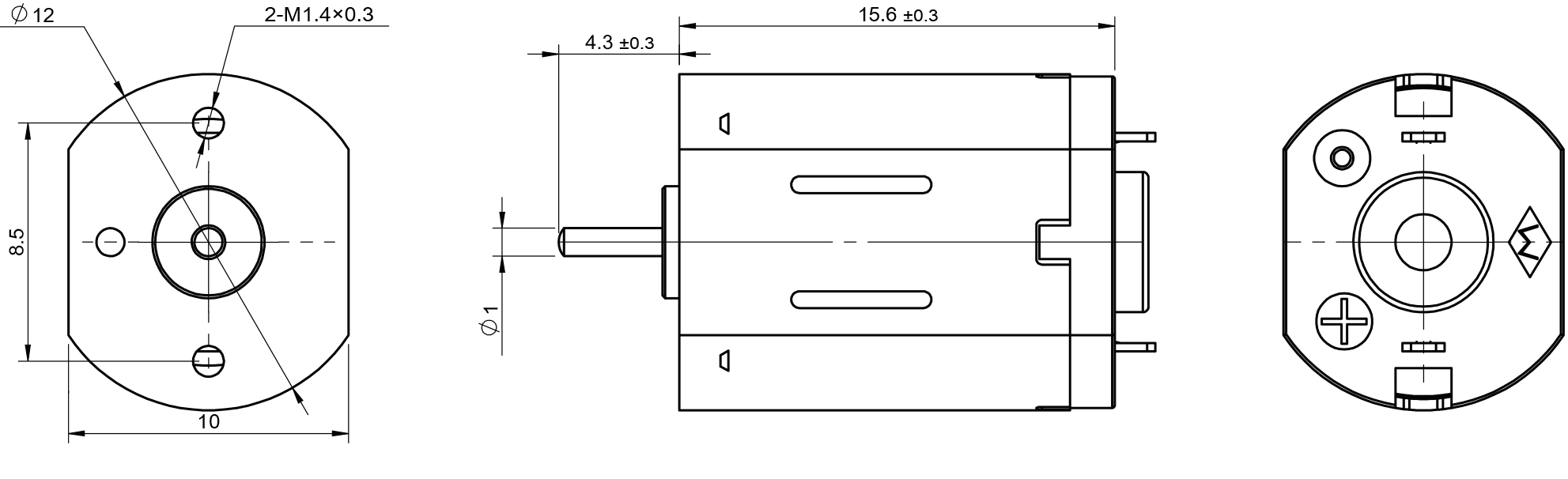

C1215F

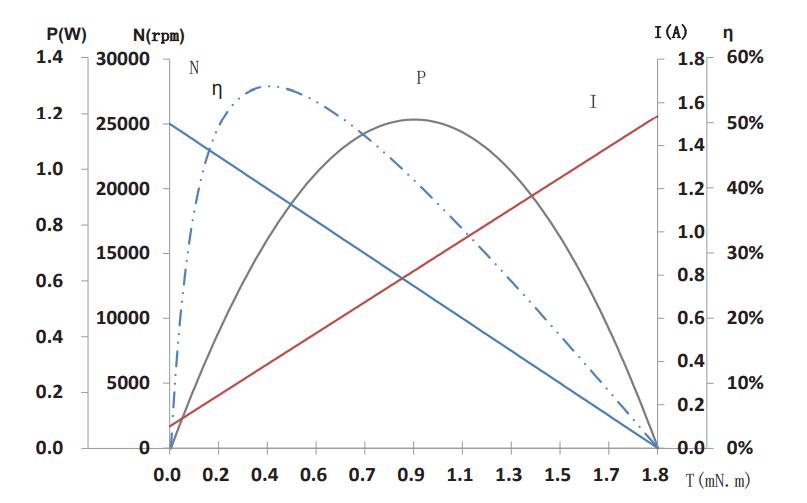

| Parameter | Unit | C1215F13-0086 |
|---|---|---|
| Voltage | V | 3.5 |
| Terminal resistance | Ohm | 1.7 |
| No-load speed | rpm | 25000 |
| No-load current | mA | 100 |
| Stall torque | mNm | 1.80 |
| Stall current | mA | 1506 |
| Load torque | mNm | 0.294 |
| Load speed | rpm | 20910 |
| Load current | mA | 330 |
| Max. output power | W | 1.18 |
| Max. efficiency | % | 56.5 |
| Back-EMF constant | mV/rpm | 0.13 |
| Torque constant | mNm/A | 1.28 |
| Speed/torque gradient | rpm/mNm | 13912 |
| Varistor | Yes/No | Yes |
| Weight | g | 5.4 |
| Operating temperature range | °C | -20~+80 |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C1215F13-0141 |
|---|---|---|
| Voltage | V | 1.5 |
| Terminal resistance | Ohm | 1.2 |
| No-load speed | rpm | 11500 |
| No-load current | mA | 110 |
| Stall torque | mNm | 1.10 |
| Stall current | mA | 1030 |
| Load torque | mNm | 0.294 |
| Load speed | rpm | 8500 |
| Load current | mA | 350 |
| Max. output power | W | 0.33 |
| Max. efficiency | % | 48.8 |
| Back-EMF constant | mV/rpm | 0.12 |
| Torque constant | mNm/A | 1.20 |
| Speed/torque gradient | rpm/mNm | 10455 |
| Varistor | Yes/No | Yes |
| Weight | g | 5.4 |
| Operating temperature range | °C | -20~+80 |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
C1215F
| Parameter | Unit | C1215F13-0260 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ohm | 10.8 |
| No-load speed | rpm | 9600 |
| No-load current | mA | 40 |
| Stall torque | mNm | 0.70 |
| Stall current | mA | 274 |
| Load torque | mNm | 0.294 |
| Load speed | rpm | 5500 |
| Load current | mA | 140 |
| Max. output power | W | 0.18 |
| Max. efficiency | % | 44.8 |
| Back-EMF constant | mV/rpm | 0.27 |
| Torque constant | mNm/A | 2.99 |
| Speed/torque gradient | rpm/mNm | 13714 |
| Varistor | Yes/No | Yes |
| Weight | g | 5.1 |
| Operating temperature range | °C | -20~+80 |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
