Compact 17mm BLDC outer rotor motor, sensorless drive. Delivers high efficiency and smooth, sensorless operation in demanding motion control applications. Ideal for UAV and handheld gimbals, LiDAR, and laser scanners. Multiple customization options include shaft length, special coils, gear heads, bearing type, hall sensors, encoder, and driver integration for optimal performance and system flexibility.

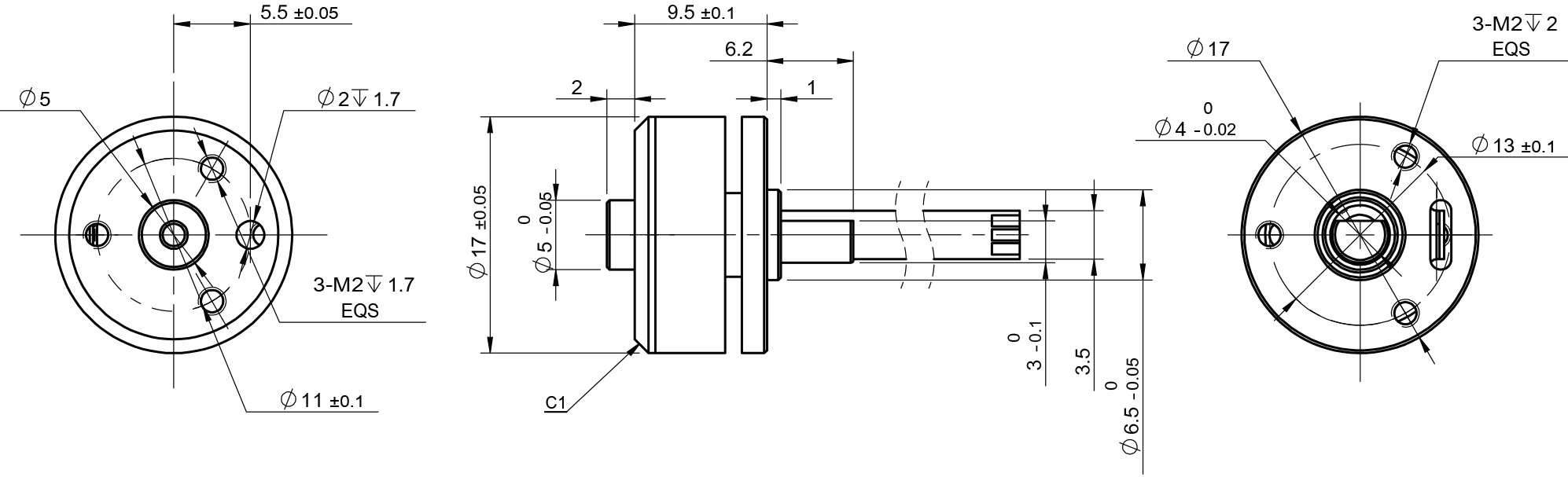

| Parameter | Unit | BO1709NB2B02-260-5.0 | BO1709NB2B01-260-10.0 | BO1709NB2B03-260-15.0 |
|---|---|---|---|---|
| Voltage | V | 5.0 | 10.0 | 15.0 |
| Terminal resistance | Ω | 1.1 | 4.3 | 10 |
| No-load speed | rpm | 26000 | 26000 | 26000 |
| No-load current | A | 0.24 | 0.12 | 0.08 |
| Stall torque | mNm | 7.5 | 7.6 | 7.3 |
| Stall current | A | 4.55 | 2.3 | 1.48 |
| Nominal torque | mNm | 1.9 | 1.9 | 1.9 |
| Nominal speed | rpm | 16250 | 16400 | 16120 |
| Nominal current | A | 1.37 | 0.68 | 0.45 |
| Max. output power | W | 5.1 | 5.2 | 5.0 |
| Max. efficiency | % | 59 | 59 | 59 |
| Back-EMF constant | mV/rpm | 0.182 | 0.365 | 0.546 |
| Torque constant | mNm/A | 1.7 | 3.4 | 5.2 |
| KV Value | rpm/V | 5200 | 2600 | 1700 |
| Speed/torque gradient | rpm/mNm | 3460 | 3384 | 3540 |
| Rotor inertia | gcm² | 1.2 | 1.2 | 1.2 |
| Weight | g | 8.8 | 8.8 | 8.8 |
| Thermal resistance housing-ambient | K/W | 15.4 | 15.4 | 15.4 |
| Thermal resistance winding-housing | K/W | 13.6 | 13.6 | 13.6 |
| Thermal time constant motor | s | 128 | 128 | 128 |
| Thermal time constant winding | s | 43 | 43 | 43 |
| Operating temperature range | °C | -40~+120 | -40~+120 | -40~+120 |
| Thermal class of winding | °C | 155 | 155 | 155 |
| Axial play | mm | 0.012 | 0.012 | 0.012 |
| Radial play | mm | 0.008 | 0.008 | 0.008 |
| Axial load dynamic | N | 1.5 | 1.5 | 1.5 |
| Axial load static | N | 3.7 | 3.7 | 3.7 |
| Radial load at 3 mm from mounting face | N | 12 | 12 | 12 |
| No. of pole pairs | 4 | 4 | 4 | |
| Bearings | 2 ball bearings | 2 ball bearings | 2 ball bearings | |
| Commutation | Sensorless | Sensorless | Sensorless | |
| Protection class | IP | 20 | 20 | 20 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | BO1709NB2B02-260-5.0 |
|---|---|---|
| Voltage | V | 5.0 |
| Terminal resistance | Ω | 1.1 |
| No-load speed | rpm | 26000 |
| No-load current | A | 0.24 |
| Stall torque | mNm | 7.5 |
| Stall current | A | 4.55 |
| Nominal torque | mNm | 1.9 |
| Nominal speed | rpm | 16250 |
| Nominal current | A | 1.37 |
| Max. output power | W | 5.1 |
| Max. efficiency | % | 59 |
| Back-EMF constant | mV/rpm | 0.182 |
| Torque constant | mNm/A | 1.7 |
| KV Value | rpm/V | 5200 |
| Speed/torque gradient | rpm/mNm | 3460 |
| Rotor inertia | gcm² | 1.2 |
| Weight | g | 8.8 |
| Thermal resistance housing-ambient | K/W | 15.4 |
| Thermal resistance winding-housing | K/W | 13.6 |
| Thermal time constant motor | s | 128 |
| Thermal time constant winding | s | 43 |
| Operating temperature range | °C | -40~+120 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.012 |
| Radial play | mm | 0.008 |
| Axial load dynamic | N | 1.5 |
| Axial load static | N | 3.7 |
| Radial load at 3 mm from mounting face | N | 12 |
| No. of pole pairs | 4 | |
| Bearings | 2 ball bearings | |
| Commutation | Sensorless | |
| Protection class | IP | 20 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | BO1709NB2B01-260-10.0 |
|---|---|---|
| Voltage | V | 10.0 |
| Terminal resistance | Ω | 4.3 |
| No-load speed | rpm | 26000 |
| No-load current | A | 0.12 |
| Stall torque | mNm | 7.6 |
| Stall current | A | 2.3 |
| Nominal torque | mNm | 1.9 |
| Nominal speed | rpm | 16400 |
| Nominal current | A | 0.68 |
| Max. output power | W | 5.2 |
| Max. efficiency | % | 59 |
| Back-EMF constant | mV/rpm | 0.365 |
| Torque constant | mNm/A | 3.4 |
| KV Value | rpm/V | 2600 |
| Speed/torque gradient | rpm/mNm | 3384 |
| Rotor inertia | gcm² | 1.2 |
| Weight | g | 8.8 |
| Thermal resistance housing-ambient | K/W | 15.4 |
| Thermal resistance winding-housing | K/W | 13.6 |
| Thermal time constant motor | s | 128 |
| Thermal time constant winding | s | 43 |
| Operating temperature range | °C | -40~+120 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.012 |
| Radial play | mm | 0.008 |
| Axial load dynamic | N | 1.5 |
| Axial load static | N | 3.7 |
| Radial load at 3 mm from mounting face | N | 12 |
| No. of pole pairs | 4 | |
| Bearings | 2 ball bearings | |
| Commutation | Sensorless | |
| Protection class | IP | 20 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | BO1709NB2B03-260-15.0 |
|---|---|---|
| Voltage | V | 15.0 |
| Terminal resistance | Ω | 10 |
| No-load speed | rpm | 26000 |
| No-load current | A | 0.08 |
| Stall torque | mNm | 7.3 |
| Stall current | A | 1.48 |
| Nominal torque | mNm | 1.9 |
| Nominal speed | rpm | 16120 |
| Nominal current | A | 0.45 |
| Max. output power | W | 5.0 |
| Max. efficiency | % | 59 |
| Back-EMF constant | mV/rpm | 0.546 |
| Torque constant | mNm/A | 5.2 |
| KV Value | rpm/V | 1700 |
| Speed/torque gradient | rpm/mNm | 3540 |
| Rotor inertia | gcm² | 1.2 |
| Weight | g | 8.8 |
| Thermal resistance housing-ambient | K/W | 15.4 |
| Thermal resistance winding-housing | K/W | 13.6 |
| Thermal time constant motor | s | 128 |
| Thermal time constant winding | s | 43 |
| Operating temperature range | °C | -40~+120 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.012 |
| Radial play | mm | 0.008 |
| Axial load dynamic | N | 1.5 |
| Axial load static | N | 3.7 |
| Radial load at 3 mm from mounting face | N | 12 |
| No. of pole pairs | 4 | |
| Bearings | 2 ball bearings | |
| Commutation | Sensorless | |
| Protection class | IP | 20 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
