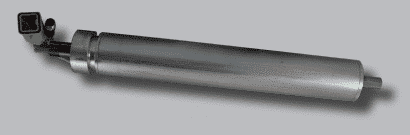

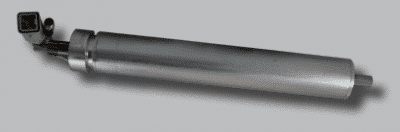

Pallet conveyor Motoroller
Power Pack motoroller 89 geared solution for driving pallet conveyor application
Load up to 1500 kg

SKU: Pallet Conveyor Motoroller Category: Gearless Rollers

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Pallet Conveyor Motoroller”

compare products

Specification	Pallet Conveyor Motoroller 89 045 04	Pallet Conveyor Motoroller 89 045 15
Stall torque	73 Nm	73 Nm
Peak torque	120 Nm	120 Nm
Rated torque	43 Nm	43 Nm
Rated working speed	0.27 m/s	0.31 m/s
Rated voltage	48 Vdc	230 VAC
Rated output power	355 W	355 W
Stall current	9.8 Arms	2 Arms
Peak current	16.9 Arms	3.5 Arms
Rated current	6.4 Arms	1.32 Arms
Torque constant +/- 10%	0.187 Nm/Arms	0.91 Nm/Arms
Voltage constant +/- 10%	11.3 Vrsm/Krpm	55 Vrsm/Krpm
Phase/pase resistance +/- 10% @25°C	0.67 Ω	13.3 Ω
Phase/pase resistance +/- 10% @25°C	0.67 Ω	13.3 Ω
Electrical time constant	3.1 ms	2.9 ms
Rotor inertia	0.526 kg·cm²	0.526 kg·cm²
Axial shaft load @ 80 rpm	240 N	240 N
Radial shaft load @80 rpm applied on rotor’s centering	3800 N	3800 N

Options

Feedback

H1 Hall Sensor

Connection

D0 – cable output with connectors

Mechanical Arrangement

Fixed shaft: 01 – Male tread Tube type 01: Standard tube Indle shaft: AA – hex spring loaded Indle shaft: AB – female thread

Pallet Conveyor Motoroller

datasheet

Dimensions 89 (pdf, 3.45M)

Torque-Speed Chart 89 (pdf, 1.82M)

MTR Servodrives (pdf, 3.4M)

Get in touch with us

info@kocomotion.de

Specification	Pallet Conveyor Motoroller 89 045 04
Stall torque	73 Nm
Peak torque	120 Nm
Rated torque	43 Nm
Rated working speed	0.27 m/s
Rated voltage	48 Vdc
Rated output power	355 W
Stall current	9.8 Arms
Peak current	16.9 Arms
Rated current	6.4 Arms
Torque constant +/- 10%	0.187 Nm/Arms
Voltage constant +/- 10%	11.3 Vrsm/Krpm
Phase/pase resistance +/- 10% @25°C	0.67 Ω
Phase/pase resistance +/- 10% @25°C	2.1 mH
Electrical time constant	3.1 ms
Rotor inertia	0.526 kg·cm²
Axial shaft load @ 80 rpm	240 N
Radial shaft load @80 rpm applied on rotor’s centering	3800 N

Options

Feedback

H1 Hall Sensor

Connection

D0 – cable output with connectors

Mechanical Arrangement

Fixed shaft: 01 – Male tread Tube type 01: Standard tube Indle shaft: AA – hex spring loaded Indle shaft: AB – female thread

Pallet Conveyor Motoroller

datasheet

Dimensions 89 (pdf, 3.45M)

Torque-Speed Chart 89 (pdf, 1.82M)

MTR Servodrives (pdf, 3.4M)

Get in touch with us

info@kocomotion.de

Specification	Pallet Conveyor Motoroller 89 045 15
Stall torque	73 Nm
Peak torque	120 Nm
Rated torque	43 Nm
Rated working speed	0.31 m/s
Rated voltage	230 VAC
Rated output power	355 W
Stall current	2 Arms
Peak current	3.5 Arms
Rated current	1.32 Arms
Torque constant +/- 10%	0.91 Nm/Arms
Voltage constant +/- 10%	55 Vrsm/Krpm
Phase/pase resistance +/- 10% @25°C	13.3 Ω
Phase/pase resistance +/- 10% @25°C	38.5 mH
Electrical time constant	2.9 ms
Rotor inertia	0.526 kg·cm²
Axial shaft load @ 80 rpm	240 N
Radial shaft load @80 rpm applied on rotor’s centering	3800 N

Options

Feedback

H1 Hall Sensor

Connection

D0 – cable output with connectors

Mechanical Arrangement

Fixed shaft: 01 – Male tread Tube type 01: Standard tube Indle shaft: AA – hex spring loaded Indle shaft: AB – female thread
