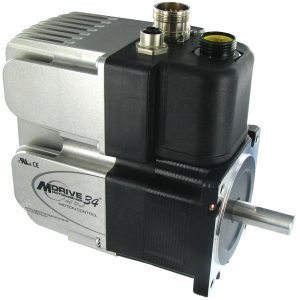

MDM2 NEMA 34 AC Step/direction Input IP54

incl. 19% VAT

MDM2 NEMA 34 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

SKU: MDM2 NEMA 34-MDM2 NEMA 34 AC Step/direction Input IP54 Category: Liberty/MDrives

Description

Description

MDrive Plus NEMA size Step/direction input with SPI interface for parameterization.
Holding torque range oz-in (N-cm): 330 … 750 (233 … 529)
I/O connector options: M23 Circular
Com connector: None

Specification	MDM2 NEMA 34 AC Step/direction Input IP54
Control type	Step/direction input
Feature set	Clock and direction inputs
P1 connector options	M23 Circular Power & I/O
P2 connector options	None Comm
Communications interface	SPI
NEMA size	34 (85×85 mm)
Holding torque range	2.33 … 5.29 Nm
Temperature heatsink (short-time)	max. 75 °C
IP rating	IP65/54
Input voltage	+95 to +132 +VDC
Power supply current requirement	–

Parameter settings	MDM2 NEMA 34 AC Step/direction Input IP54
Input Step, Direction & Enable voltage	5 … 24 + VDC
Current	14.6 mA Max
Digital Filter Range	10 … 38.8 MHz … kHz
Step Frequency	5 MHz Max
Microstep Resolutions	200 … 51200 Steps/Rev
Clock Types	–

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
