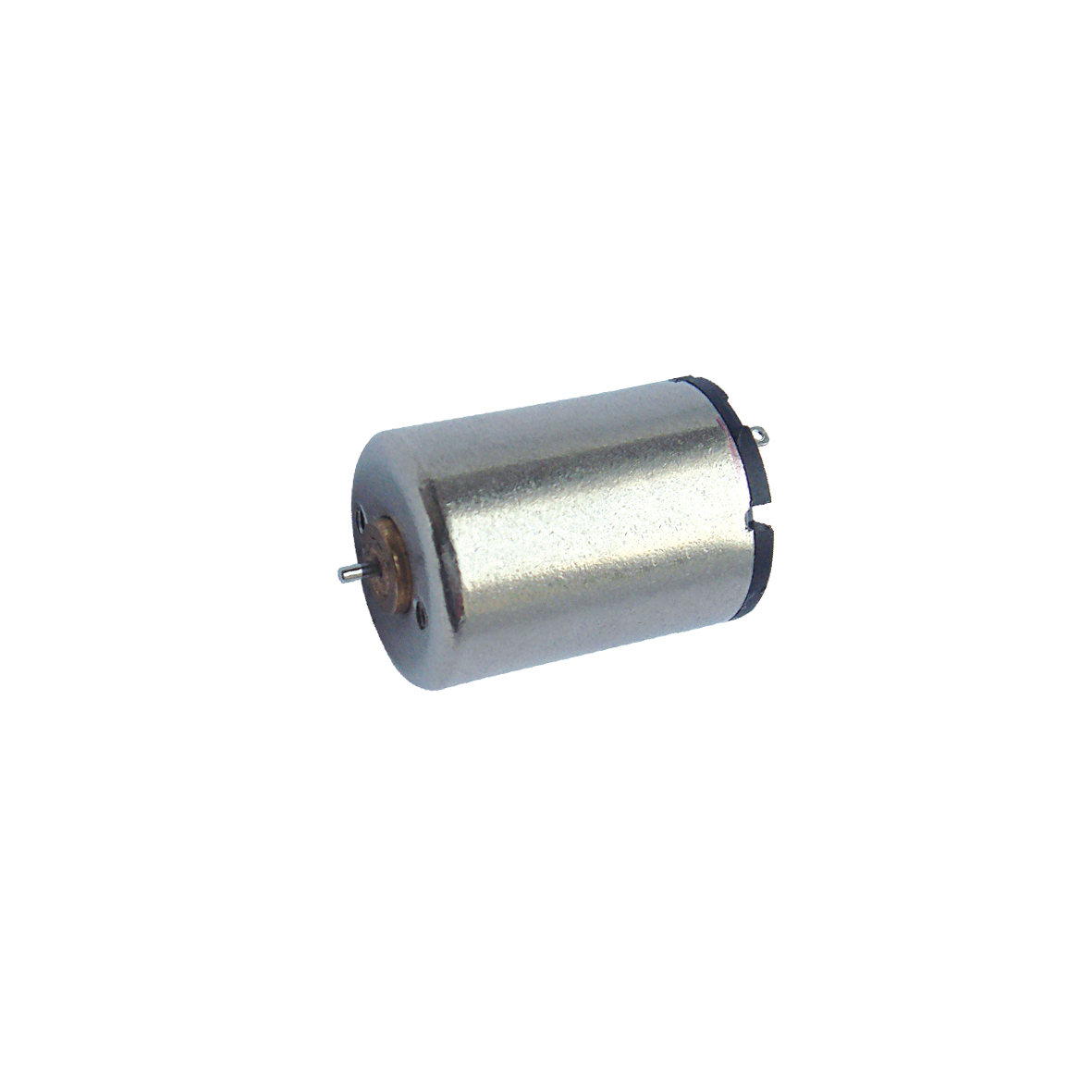

L1625N5M Series – 16mm Micro DC Coreless Motors
Designed for high performance in compact spaces, the L1625N5M series is engineered with a coreless rotor and precious metal brushes to ensure reliable operation and minimal wear. Available in 5V, 6V, and 12V versions, these micro DC motors deliver exceptional speed and torque in a lightweight 20.5 g package.
- Key Specifications:
- Voltage options: 5.0V, 6.0V, 12.0V
- No-load speeds: 6,000–18,700 rpm
- Stall torque: up to 22.3 mNm
- Peak output power: up to 10.9 W
- Operating temperature: -20°C to +85°C
- Max efficiency: up to 79%
- Rotor inertia: 0.7 gcm²
- Applications: Optimized for mini UAVs, remote control hobby products, and small household appliances demanding compact size and responsive power.
- Customization & Options: Lead wires length, shaft length, custom coils, and gearhead integration available for tailored solutions.
Leverage the L1625N5M family to achieve high-efficiency and high-speed motion in minimal space. The robust coreless design and precision brush system deliver reliable, smooth operation in demanding OEM equipment and consumer applications.
