Description

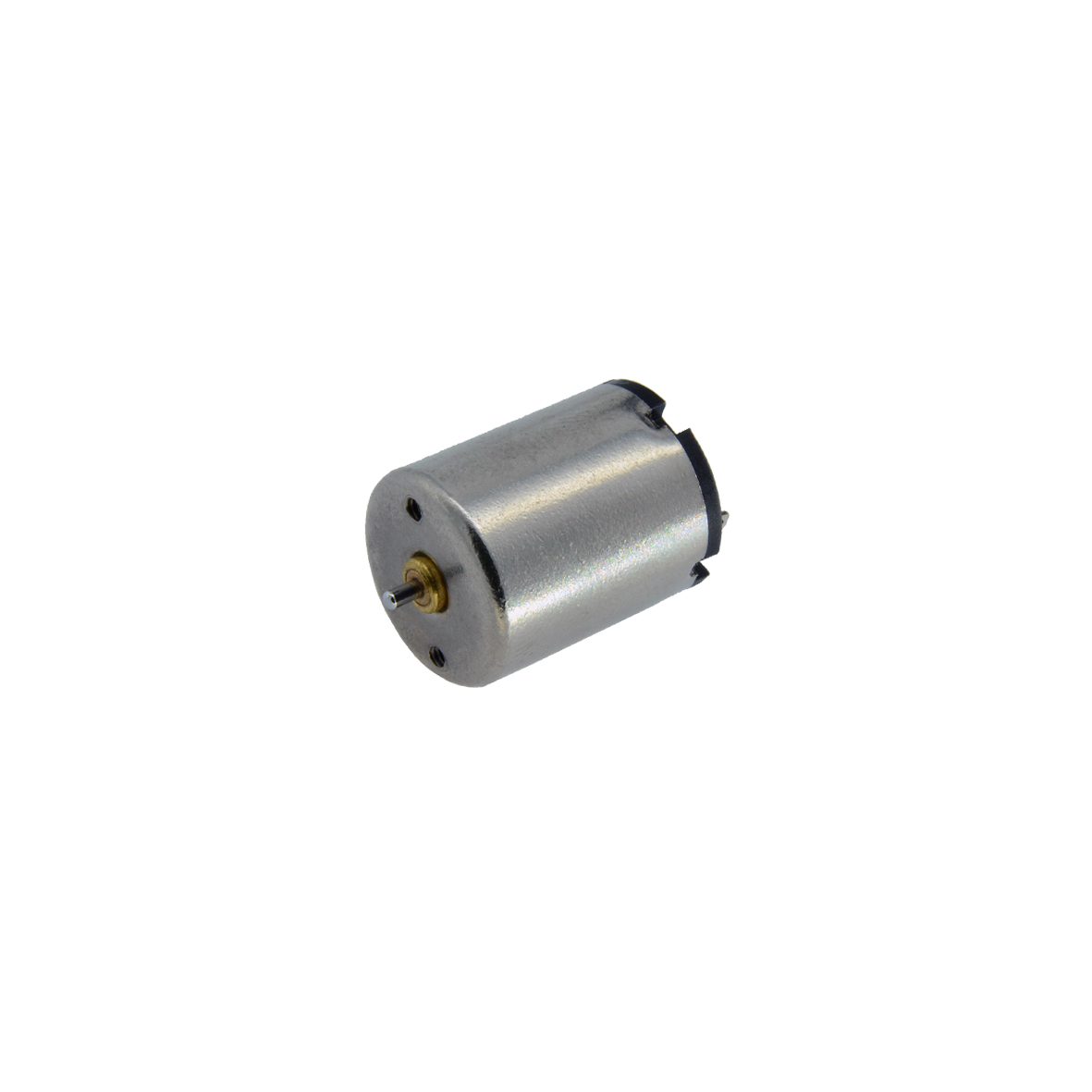

The L1213N5M 12mm micro DC coreless motor family features precision-engineered motors designed for demanding applications requiring compact size, high speed, and reliable operation. Equipped with precious metal brushes, these motors deliver superior commutation and extended operational life.
- Key Technical Specifications:
- Operating voltage range: 6.0V to 7.4V
- No-load speed: up to 40,500 rpm
- Stall torque: up to 3.7 mNm
- Terminal resistance: as low as 3.2 Ω
- Ultra-lightweight: 5.6–6.5 g
- Operating temperature: -20 to +85°C
- Benefits:
- High power-to-weight ratio for space-constrained designs
- Exceptional efficiency (up to 76%) reduces power consumption
- Low rotor inertia ensures rapid response and precise control
- Customizable with gearheads, shaft length, special coils, and various lead wire configurations
- Typical Applications:
- Mini UAV propulsion and actuation
- Remote control and hobby models
- Small household appliances and portable devices
This family is the ideal solution for engineers seeking a compact, adaptable, and robust coreless DC motor platform for both standard and tailored motion control requirements.
