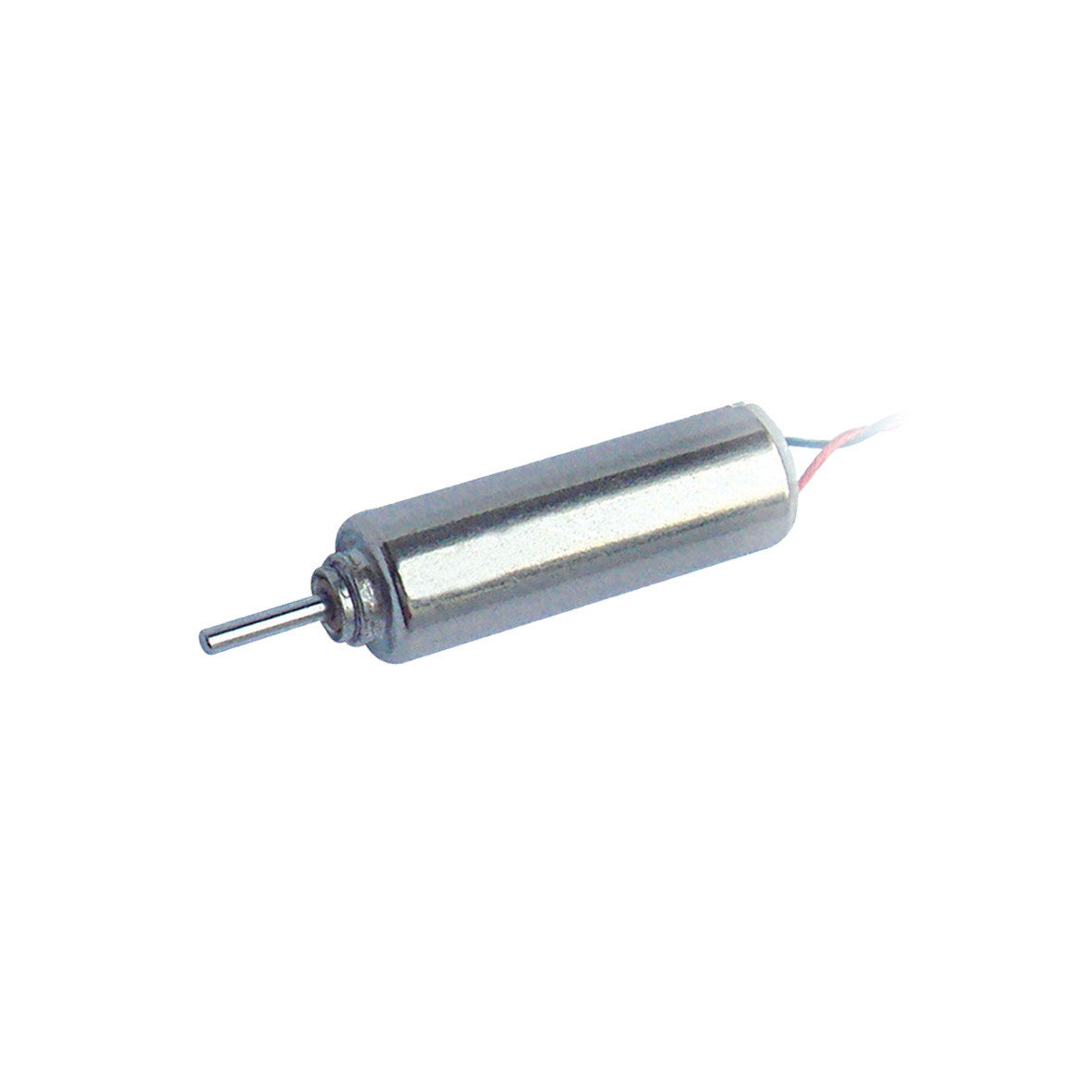

L0412N3M Series – High-Performance Micro Coreless DC Motors

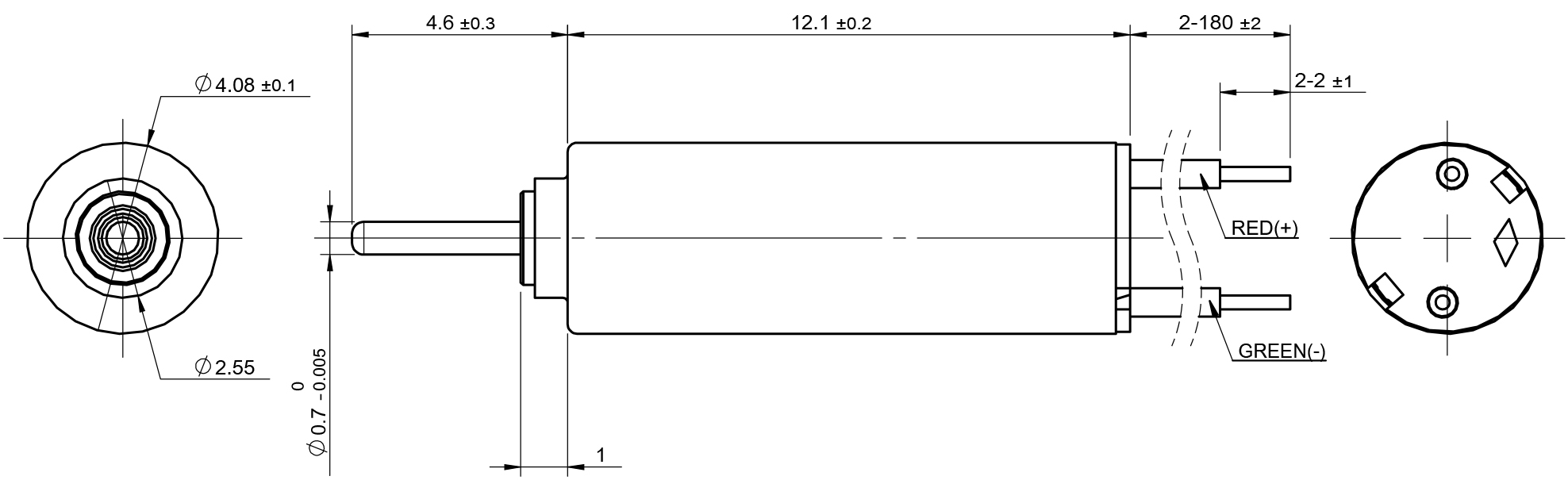

The L0412N3M family delivers precision motion in compact applications demanding high efficiency and minimal inertia. Engineered with precious metal brushes, these 4mm diameter motors operate efficiently across 3.4–3.7V and weigh just 0.7–0.8g, making them ideal for space-constrained systems.

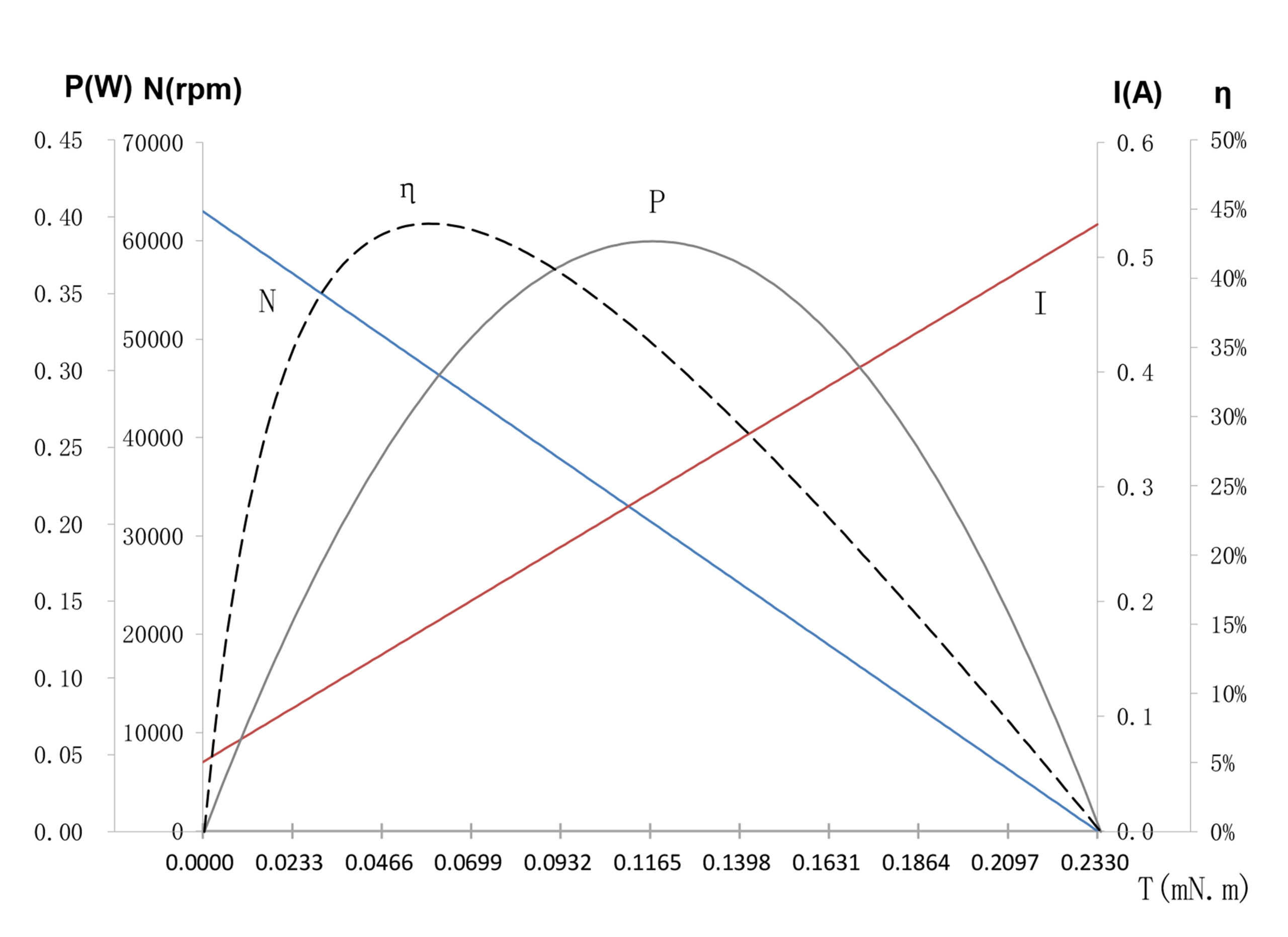

- Outstanding Performance:
- No-load speeds up to 65,000 rpm (3.4V) and 63,000 rpm (3.7V)
- Stall torque up to 0.23 mNm
- Peak output up to 0.38 W
- Maximum efficiency up to 44%
- Low rotor inertia (0.005 gcm²) for fast dynamic response
- Key Features:
- Precious metal brush design ensures reliable, low-voltage operation
- Robust construction with an operating temperature range of -20 to +65°C
- Terminal resistance as low as 7Ω enables efficient energy transfer
- Applications:
- Mini UAV propulsion and actuation
- Remote control and hobby electronics
- Small household appliances and precision devices
- Available Options: Custom shaft lengths, special coil configurations, and compatible precision gearheads to match application-specific requirements.
This series is the preferred solution when size, speed, and efficiency are critical—delivering reliable power for innovative micro-mechatronic designs.
