Integrated servo motors with Modbus RTU over RS485 for compact motion control systems. The iSV2 family combines motor, 17-bit encoder, and servo drive in one unit to save mounting space, reduce cabling and interference, and lower system cost. Available in 24/48 VDC, 200 to 750 W versions.
iSV2 series includes 60mm & 80mm frame size servomotors which are integrated with 17-bit encoders and servo drives.
Its power ranges from 200 to 750W with peak torque to 7.2 Nm. At very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder & power cable connections, reduce interference, and reduce system cost.
| Parameter | Unit | iSV2-RS6020V24G |
|---|---|---|

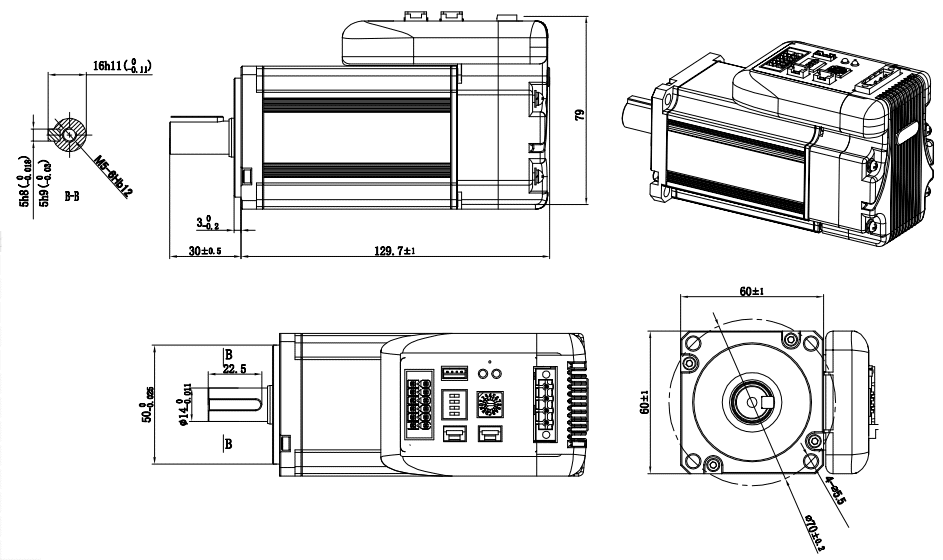

| Frame size | mm | 60 |
| Nominal power | W | 200 |
| Rated voltage | VDC | 24 |

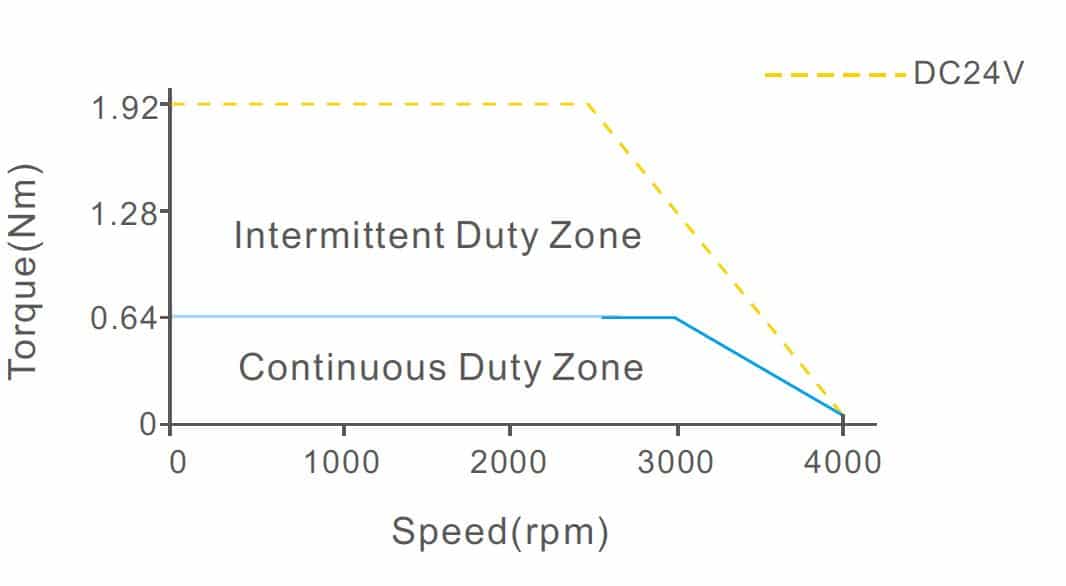

| Nominal torque | Nm | 0.64 |
| Nominal current | Arms | 11 |
| Nominal speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | Yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
