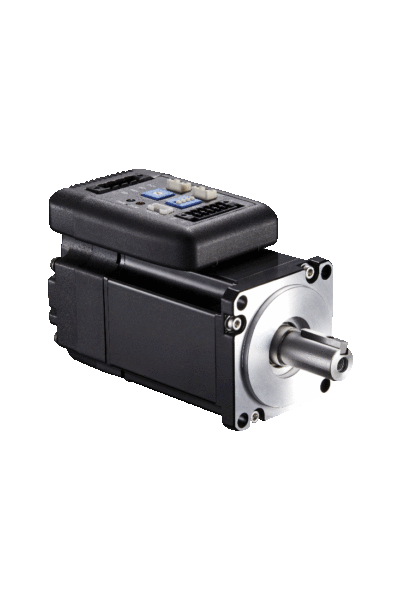

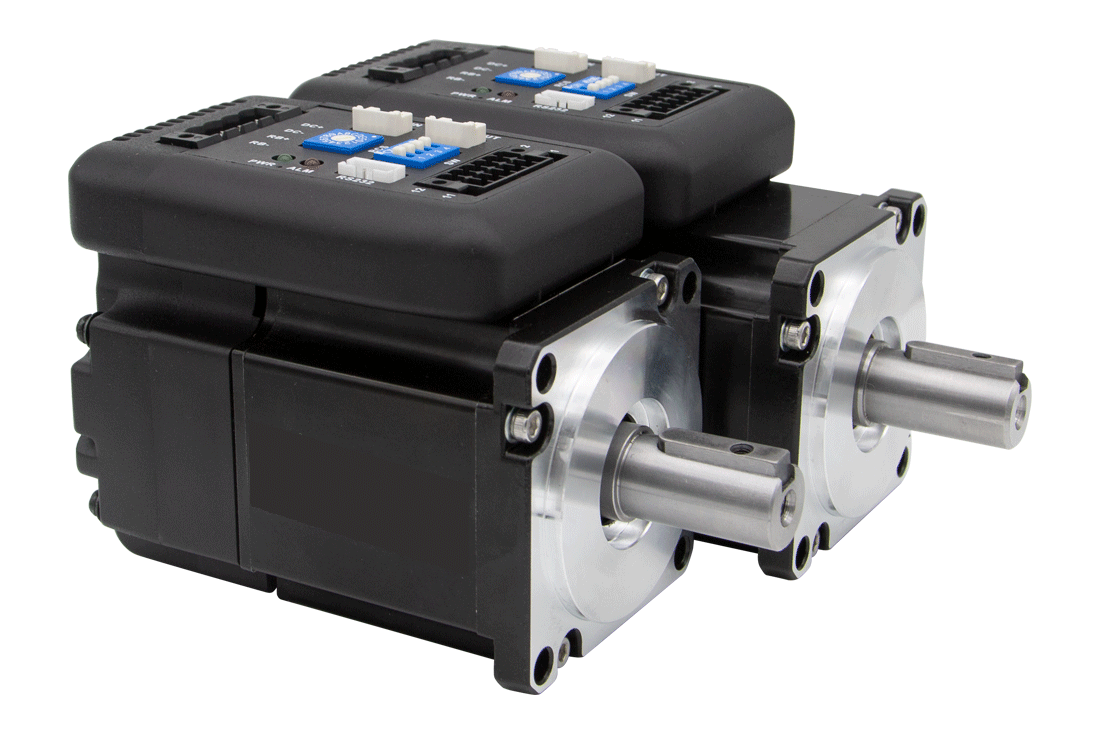

iSV2-RS Series
Servo motors which are integrated with 17-bit encoders and servo drives
Motor charactistics
| Parameter | Unit | iSV2-RS6020V24H | iSV2-RS6020V24G | iSV2-RS6020V48H | iSV2-RS6020V48G | iSV2-RS6040V48H | iSV2-RS6040V48G | iSV2-RS5740V48H | iSV2-RS8075V48G | iSV2-RS8075V48H | iSV2-RS8675V48H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame size | mm | 60 | 60 | 60 | 60 | 60 | 60 | Nema 23 | 80 | 80 | Nema 34 |
| Motor length | mm | 95.7 +/- 1 | 129.7 +/- 1 | 95.7 +/- 1 | 129.7 +/- 1 | 112.7 +/-1 | 146.7 +/- 1 | 119 +/- 1 | 165 +/- 1 | 128.8 +/- 1 | 125 +/- 1 |
| Nominal power | W | 200 | 200 | 200 | 200 | 400 | 400 | 400 | 750 | 750 | 750 |
| Rated voltage | V | 24 | 24 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Nominal torque | Nm | 0.64 | 0.64 | 0.64 | 0.64 | 1.27 | 1.27 | 1.27 | 2.39 | 2.39 | 2.39 |
| Rated current (RMS) | A | 11 | 11 | 6.5 | 6.5 | 10 | 10 | 10 | 19 | 19 | 19 |
| Nominal speed | RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Encoder resolution | bit | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 |
| Communication | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | |
| Brake | no | yes | no | yes | no | yes | no | yes | no | no |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
