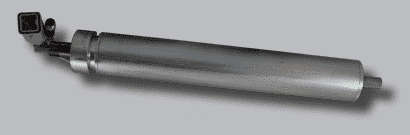

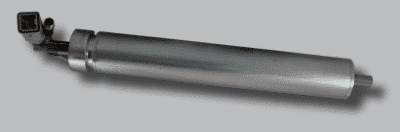

Motroller in power pack version, a ready to use motoroller embedded in its own tube.
incl. VAT
View products
incl. 19% VAT
Read more
incl. 19% VAT
Read more
incl. VAT
View products| Specification | Gearless Motoroller Powerpack MTR PP 46 75 06 | Gearless Motoroller Powerpack MTR PP 46 75 13 | Gearless Motoroller Powerpack MTR PP 46 140 13 | Gearless Motoroller Powerpack MTR PP 60 150 21 | Gearless Motoroller Powerpack MTR PP 76 100 14 |
|---|---|---|---|---|---|
| Stall torque | 0.74 Nm | 0.74 Nm | 1.5 Nm | 3.2 Nm | 3.6 Nm |
| Peak torque | 2.2 Nm | 2.2 Nm | 4.5 Nm | 10 Nm | 22 Nm |
| Rated torque | 0.6 Nm | 0.6 Nm | 1.35 Nm | 2.8 Nm | 3.1 Nm |
| Rated working speed | 800 rpm | 800 rpm | 800 rpm | 800 rpm | 800 rpm |
| Rated voltage | 24 Vdc | 48 Vdc | 48 Vdc | 60 Vdc | 60 Vdc |
| Maximum working speed @ 24 Vdc | 1000 rpm | 500 rpm | 500 rpm | – | 800 rpm |
| Maximum working speed @ 48 Vdc | 1150 rpm | 1150 rpm | 1000 rpm | – | – |
| Rated output power | 50 W | 50 W | 115 W | 235 W | 260 W |
| Stall current | 3.3 Arms | 1.63 Arms | 3.3 Arms | 6.1 Arms | 6.1 Arms |
| Peak current | 11 Arms | 5.71 Arms | 10.61 Arms | 23 Arms | 41 Arms |
| Rated current | 2.7 Arms | 1.33 Arms | 3 Arms | 5.2 Arms | 5.2 Arms |
| Torque constant +/- 10% | 0.22 Nm/Arms | 0.45 Nm/Arms | 0.45 Nm/Arms | 0.53 Nm/Arms | 0.59 Nm/Arms |
| Voltage constant +/- 10% | 13.6 Vrsm/Krpm | 27.6 Vrsm/Krpm | 27.6 Vrsm/Krpm | 31.8 Vrsm/Krpm | 36 Vrsm/Krpm |
| Phase/pase resistance +/- 10% @25°C | 0.77 Ω | 2.64 Ω | 1.23 Ω | 0.5 Ω | 0.51 Ω |
| Phase/pase resistance +/- 10% @25°C | 0.77 Ω | 2.64 Ω | 1.23 Ω | 0.5 Ω | 0.51 Ω |
| Electrical time constant | 1.75 ms | 2 ms | 2.3 ms | 3.6 ms | 1.37 ms |
| Rotor inertia | 5 kg·cm² | 5 kg·cm² | 6.1 kg·cm² | 16.8 kg·cm² | 23.2 kg·cm² |
| Motor weight | 1.96 kg·cm² | 1.96 kg·cm² | 2.73 kg·cm² | 5.3 kg·cm² | 5.1 kg·cm² |
| Axial shaft load @ 800 rpm | 110 N | 110 N | 110 N | 140 N | 220 N |
| Radial shaft load @800 rpm applied on rotor’s centering | 220 N | 220 N | 220 N | 600 N | 500 N |
| Specification | Gearless Motoroller Powerpack MTR PP 46 75 06 |
|---|---|
| Stall torque | 0.74 Nm |
| Peak torque | 2.2 Nm |
| Rated torque | 0.6 Nm |
| Rated working speed | 800 rpm |
| Rated voltage | 24 Vdc |
| Maximum working speed @ 24 Vdc | 1000 rpm |
| Maximum working speed @ 48 Vdc | 1150 rpm |
| Rated output power | 50 W |
| Stall current | 3.3 Arms |
| Peak current | 11 Arms |
| Rated current | 2.7 Arms |
| Torque constant +/- 10% | 0.22 Nm/Arms |
| Voltage constant +/- 10% | 13.6 Vrsm/Krpm |
| Phase/pase resistance +/- 10% @25°C | 0.77 Ω |
| Phase/pase resistance +/- 10% @25°C | 1.35 mH |
| Electrical time constant | 1.75 ms |
| Rotor inertia | 5 kg·cm² |
| Motor weight | 1.96 kg·cm² |
| Axial shaft load @ 800 rpm | 110 N |
| Radial shaft load @800 rpm applied on rotor’s centering | 220 N |
| Specification | Gearless Motoroller Powerpack MTR PP 46 75 13 |
|---|---|
| Stall torque | 0.74 Nm |
| Peak torque | 2.2 Nm |
| Rated torque | 0.6 Nm |
| Rated working speed | 800 rpm |
| Rated voltage | 48 Vdc |
| Maximum working speed @ 24 Vdc | 500 rpm |
| Maximum working speed @ 48 Vdc | 1150 rpm |
| Rated output power | 50 W |
| Stall current | 1.63 Arms |
| Peak current | 5.71 Arms |
| Rated current | 1.33 Arms |
| Torque constant +/- 10% | 0.45 Nm/Arms |
| Voltage constant +/- 10% | 27.6 Vrsm/Krpm |
| Phase/pase resistance +/- 10% @25°C | 2.64 Ω |
| Phase/pase resistance +/- 10% @25°C | 5.4 mH |
| Electrical time constant | 2 ms |
| Rotor inertia | 5 kg·cm² |
| Motor weight | 1.96 kg·cm² |
| Axial shaft load @ 800 rpm | 110 N |
| Radial shaft load @800 rpm applied on rotor’s centering | 220 N |
| Specification | Gearless Motoroller Powerpack MTR PP 46 140 13 |
|---|---|
| Stall torque | 1.5 Nm |
| Peak torque | 4.5 Nm |
| Rated torque | 1.35 Nm |
| Rated working speed | 800 rpm |
| Rated voltage | 48 Vdc |
| Maximum working speed @ 24 Vdc | 500 rpm |
| Maximum working speed @ 48 Vdc | 1000 rpm |
| Rated output power | 115 W |
| Stall current | 3.3 Arms |
| Peak current | 10.61 Arms |
| Rated current | 3 Arms |
| Torque constant +/- 10% | 0.45 Nm/Arms |
| Voltage constant +/- 10% | 27.6 Vrsm/Krpm |
| Phase/pase resistance +/- 10% @25°C | 1.23 Ω |
| Phase/pase resistance +/- 10% @25°C | 2.81 mH |
| Electrical time constant | 2.3 ms |
| Rotor inertia | 6.1 kg·cm² |
| Motor weight | 2.73 kg·cm² |
| Axial shaft load @ 800 rpm | 110 N |
| Radial shaft load @800 rpm applied on rotor’s centering | 220 N |
| Specification | Gearless Motoroller Powerpack MTR PP 60 150 21 |
|---|---|
| Stall torque | 3.2 Nm |
| Peak torque | 10 Nm |
| Rated torque | 2.8 Nm |
| Rated working speed | 800 rpm |
| Rated voltage | 60 Vdc |
| Maximum working speed @ 60 Vdc | 1200 rpm |
| Rated output power | 235 W |
| Stall current | 6.1 Arms |
| Peak current | 23 Arms |
| Rated current | 5.2 Arms |
| Torque constant +/- 10% | 0.53 Nm/Arms |
| Voltage constant +/- 10% | 31.8 Vrsm/Krpm |
| Phase/pase resistance +/- 10% @25°C | 0.5 Ω |
| Phase/pase resistance +/- 10% @25°C | 1.8 mH |
| Electrical time constant | 3.6 ms |
| Rotor inertia | 16.8 kg·cm² |
| Motor weight | 5.3 kg·cm² |
| Axial shaft load @ 800 rpm | 140 N |
| Radial shaft load @800 rpm applied on rotor’s centering | 600 N |
| Specification | Gearless Motoroller Powerpack MTR PP 76 100 14 |
|---|---|
| Stall torque | 3.6 Nm |
| Peak torque | 22 Nm |
| Rated torque | 3.1 Nm |
| Rated working speed | 800 rpm |
| Rated voltage | 60 Vdc |
| Maximum working speed @ 24 Vdc | 800 rpm |
| Maximum working speed @ 65 Vdc | 1000 rpm |
| Rated output power | 260 W |
| Stall current | 6.1 Arms |
| Peak current | 41 Arms |
| Rated current | 5.2 Arms |
| Torque constant +/- 10% | 0.59 Nm/Arms |
| Voltage constant +/- 10% | 36 Vrsm/Krpm |
| Phase/pase resistance +/- 10% @25°C | 0.51 Ω |
| Phase/pase resistance +/- 10% @25°C | 0.07 mH |
| Electrical time constant | 1.37 ms |
| Rotor inertia | 23.2 kg·cm² |
| Motor weight | 5.1 kg·cm² |
| Axial shaft load @ 800 rpm | 220 N |
| Radial shaft load @800 rpm applied on rotor’s centering | 500 N |
