Gearless Motoroller Powerpack MTR PP 76 100 14

Name: Gearless Motoroller Powerpack MTR PP 76 100 14 - KOCO MOTION
SKU: Gearless Motoroller Powerpack-Gearless Motoroller Powerpack MTR PP 76 100 14

incl. 19% VAT

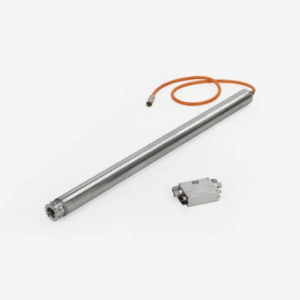

Motroller in power pack version, a ready to use motoroller embedded in its own tube.

SKU: Gearless Motoroller Powerpack-Gearless Motoroller Powerpack MTR PP 76 100 14 Category: Gearless Rollers

Description

Description

Motroller in power pack version, a ready to use motoroller embedded in its own tube.

Specification	Gearless Motoroller Powerpack MTR PP 76 100 14
Stall torque	3.6 Nm
Peak torque	22 Nm
Rated torque	3.1 Nm
Rated working speed	800 rpm
Rated voltage	60 Vdc
Maximum working speed @ 24 Vdc	800 rpm
Maximum working speed @ 48 Vdc	–
Maximum working speed @ 60 Vdc	–
Maximum working speed @ 65 Vdc	1000 rpm
Rated output power	260 W
Stall current	6.1 Arms
Peak current	41 Arms
Rated current	5.2 Arms
Torque constant +/- 10%	0.59 Nm/Arms
Voltage constant +/- 10%	36 Vrsm/Krpm
Phase/pase resistance +/- 10% @25°C	0.51 Ω
Phase/pase resistance +/- 10% @25°C	0.07 mH
Electrical time constant	1.37 ms
Rotor inertia	23.2 kg·cm²
Motor weight	5.1 kg·cm²
Axial shaft load @ 800 rpm	220 N
Radial shaft load @800 rpm applied on rotor’s centering	500 N

Options

Feedback

H1 Hall Sensor E1 Incremental encoder ABZ – 3584 cpr

Connection

D0 – cable output with connectors

Mechanical Arrangement

01 Male tread fixed shaft Tube Type for MTR PP 46 only: 01 – Standard tube Tube Type for MTR PP 46 only: 02 – Double grooved tube Tube Type for MTR PP 46 only: 03 – Conveyor belt tube Tube Type for MTR PP 46 only: 04 – Poly-V pulley tube / This version is not available for sale in Germany Tube Type for MTR PP 46 only: 05 – Double grooved pulley tube Tube Type for MTR PP 46 only: 06 – Tapered sleeves tube Tube Type for MTR PP 46 only: 07 – Double grooved and tapered sleeves tube Tube Type for MTR PP 46 only: 08 – Poly-V and tapered sleeves tube / This version is not available for sale in Germany Tube Type for MTR PP 46 only: 09 – Double grooved pulley and tapered sleeves tube Indle shaft for MTR PP 46 only: AA – hex spring loaded Indle shaft for MTR PP 46 only: AB – female thread Indle shaft for MTR PP 46 only: AC – poly-V hex spring loaded Indle shaft for MTR PP 46 only: AD – poly-V thread

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

Produkt

datasheet

Dimensions-MTR-46-PP (pdf, 1.46M)

Dimensions-MTR-60-PP (pdf, 517.81K)

MTR-Servodrives (pdf, 3.4M)

MTR-46-60-76-Feedback-Features (pdf, 243.08K)
