Description

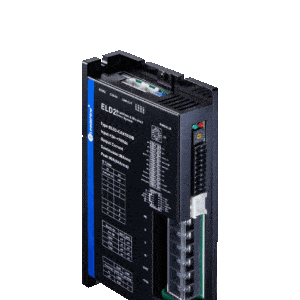

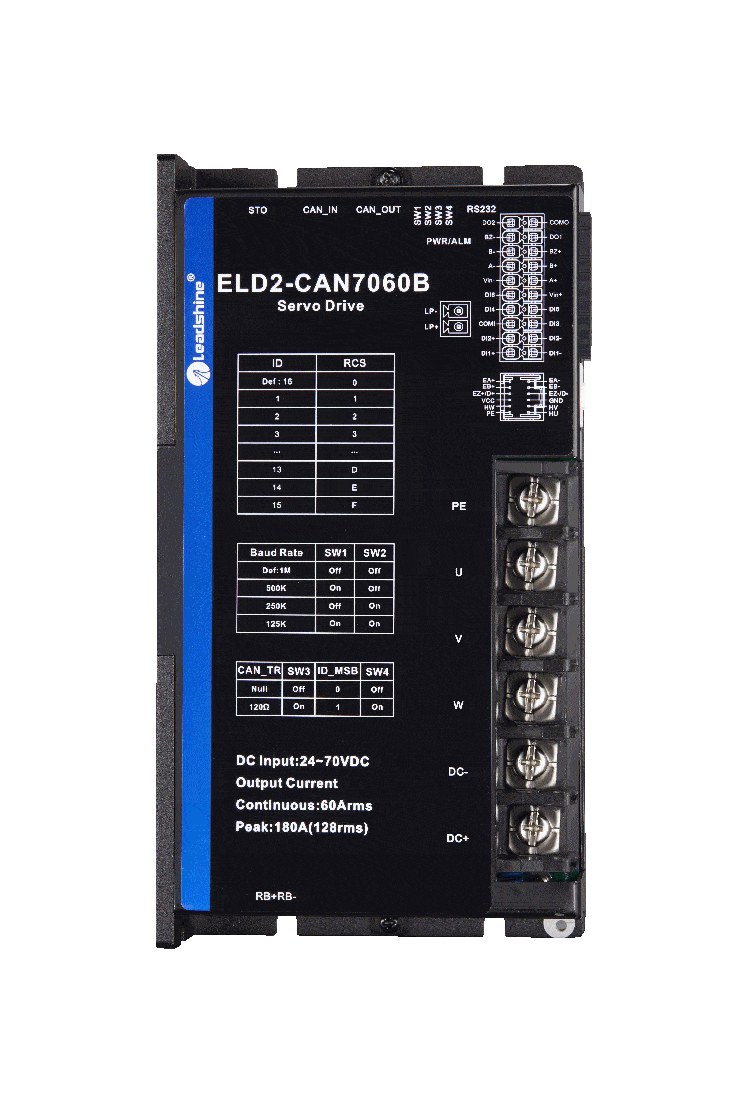

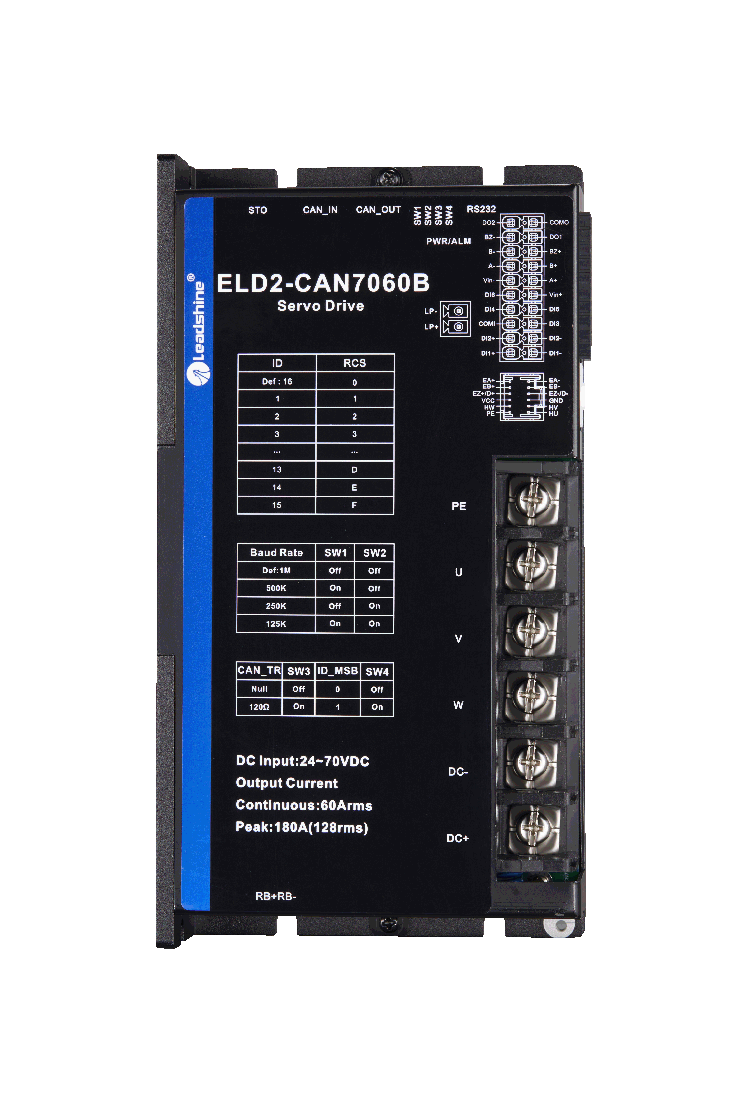

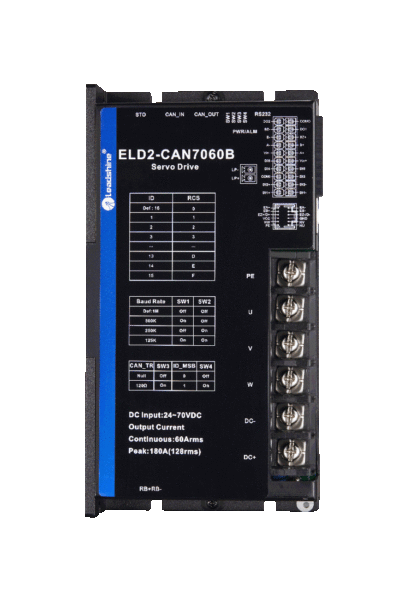

The ELD2-CAN7060B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.
| Parameter | Unit | ELD2-CAN7060B |
|---|---|---|
| Input Voltage | 24~70VDC | |
| Rated Power | W | 2500 |
| Rated Current | Arms | 60 |
| Peak Current | Arms | 180 |
| Command Source | CANopen | |
| # of Inputs | 4 | |
| # of Outputs | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
