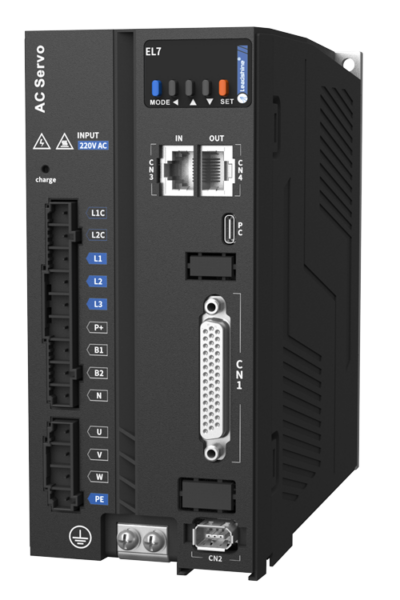

| Parameter | Unit | EL7-RS3000PT |
|---|---|---|
| Input Voltage | 400VAC 3ph | |
| Rated Power | W | 3000 |
| Rated Current | Arms | 11.9 |
| Peak Current | Arms | 33.2 |
| Command Source | Modbus RTU/Pulse+Direction/Analogue | |
| # of Digital Inputs | 8 | |
| # of Digital Outputs | 5 | |
| # of Analog Inputs | 2 | |
| # of Analog Outputs | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
